Tyvek / Tychem® 6000

Model TF198T GY

Tychem® 6000

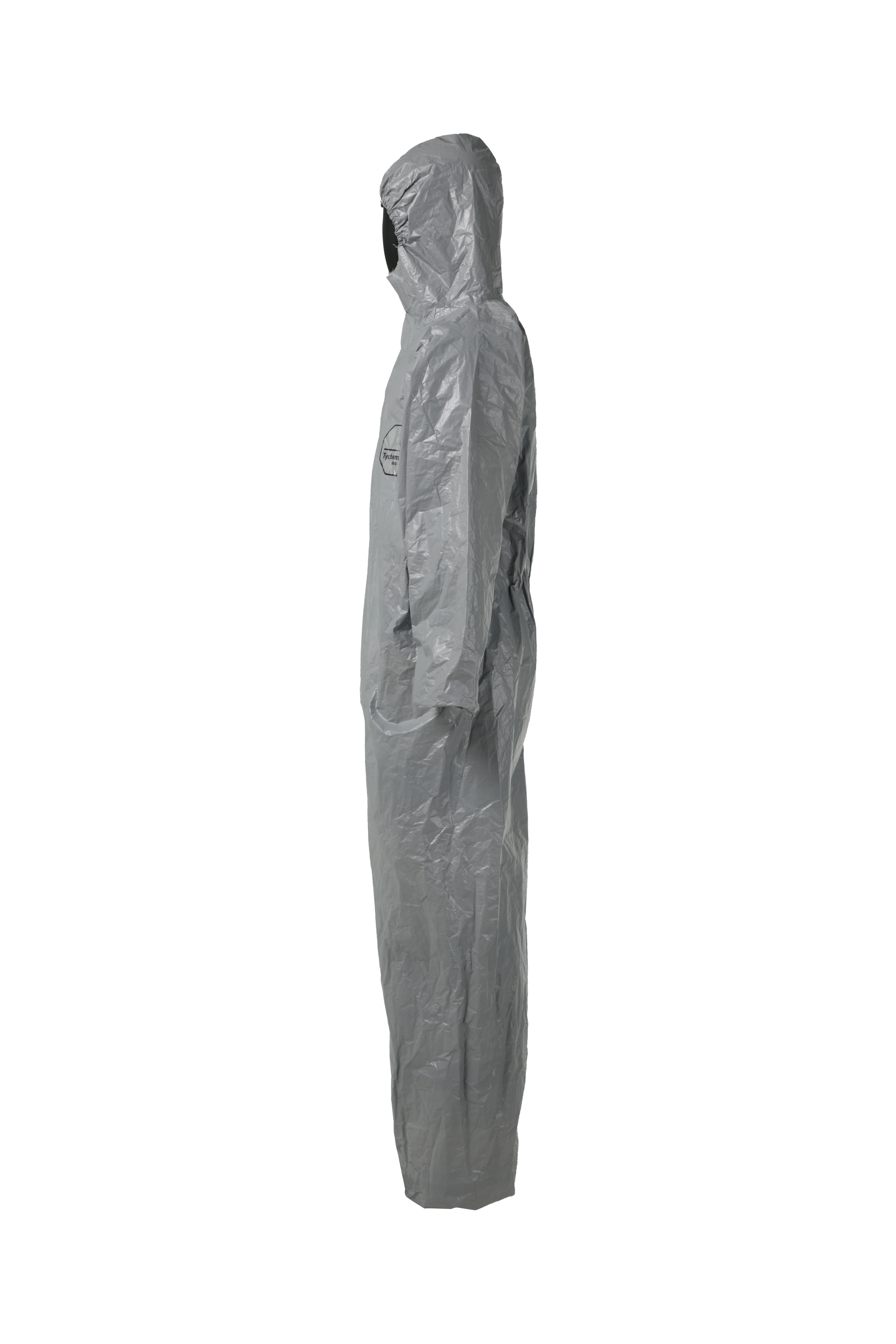

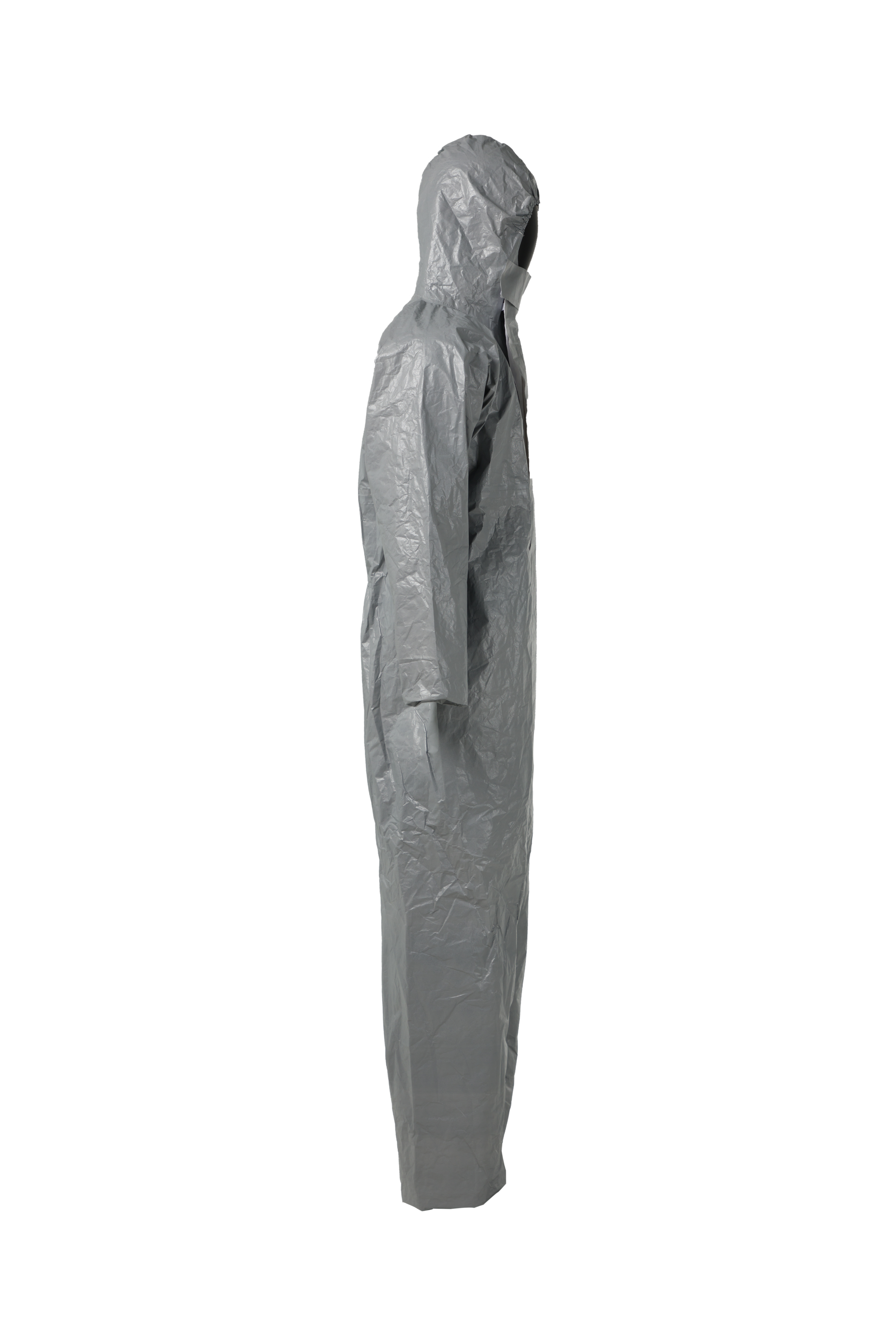

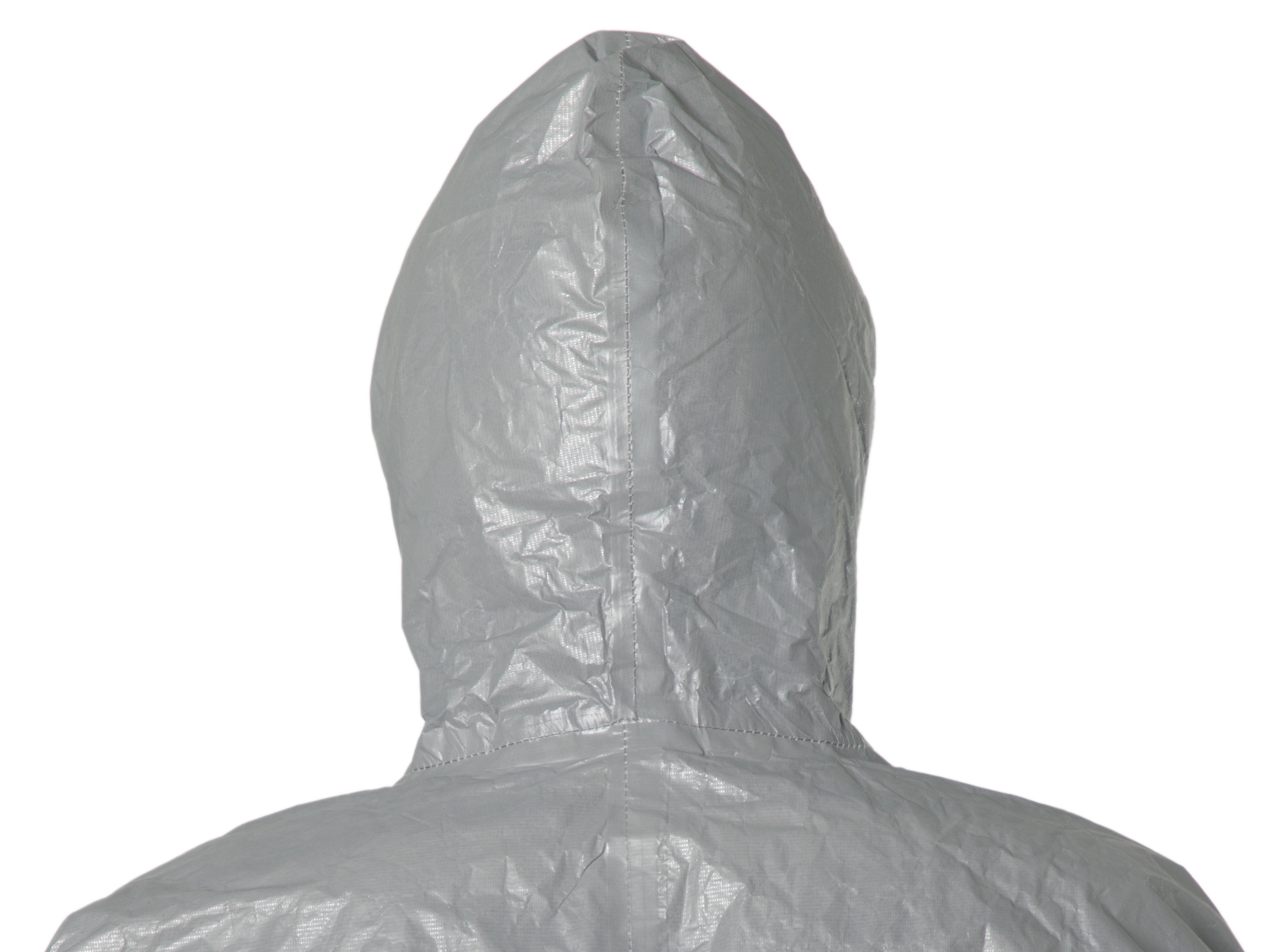

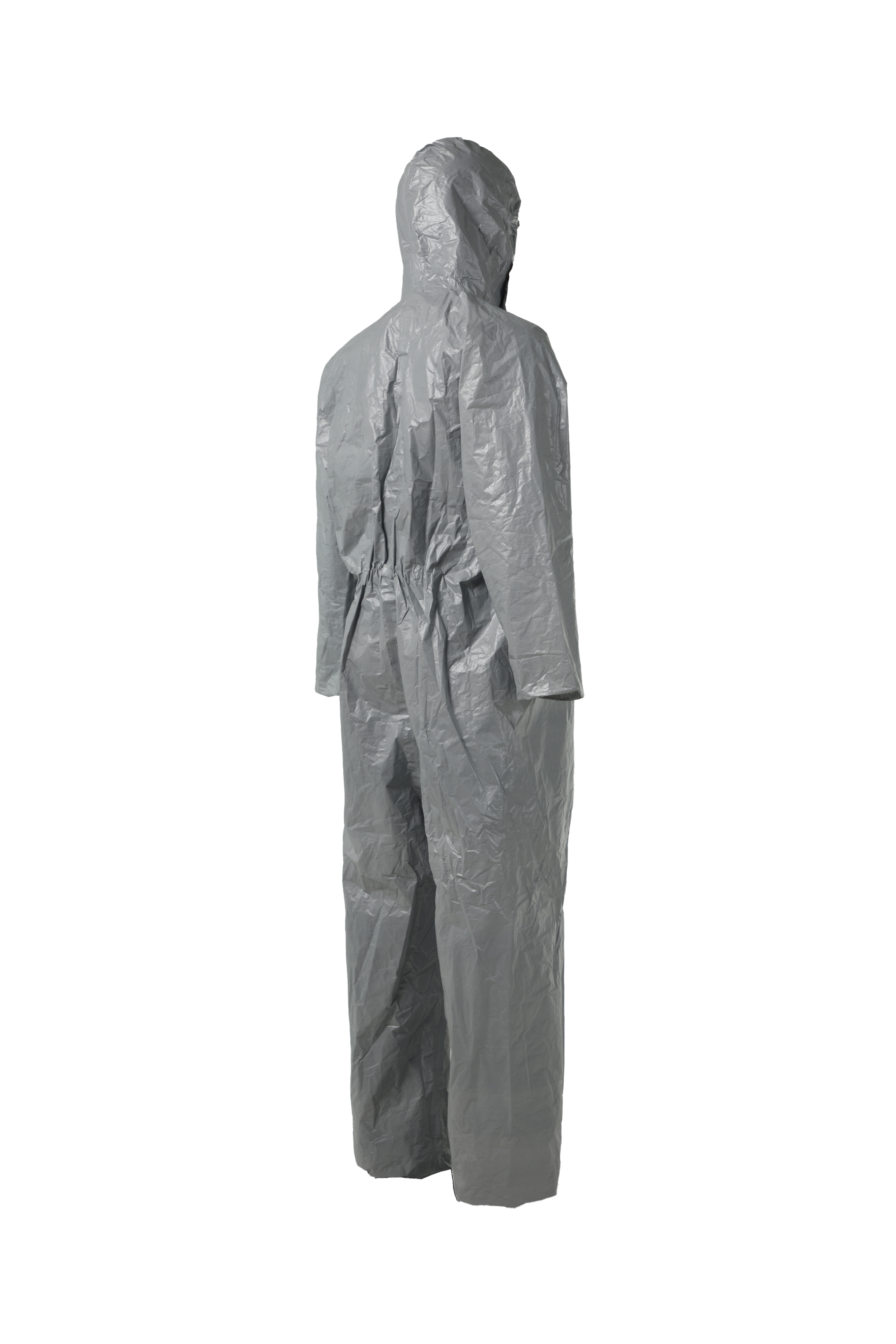

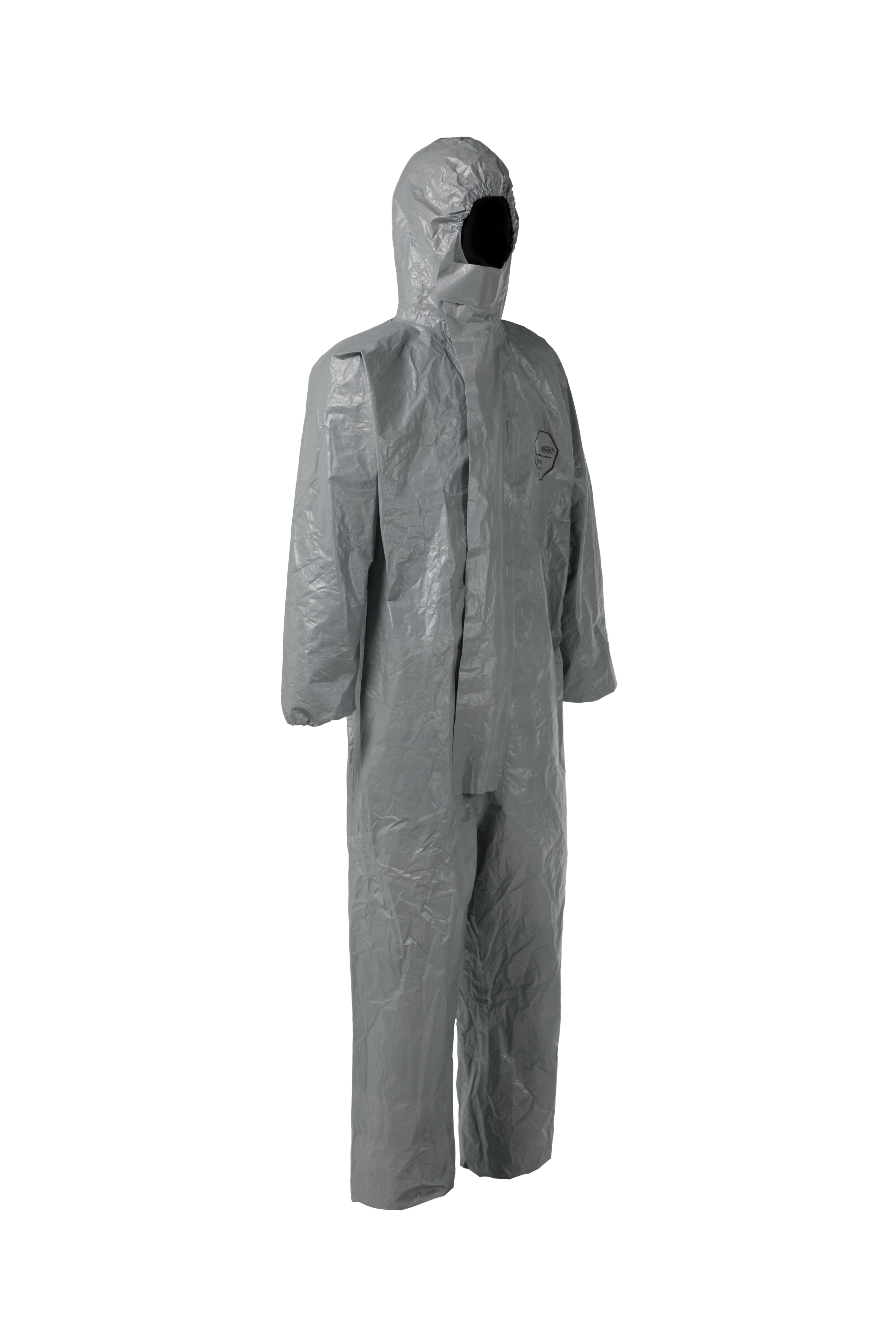

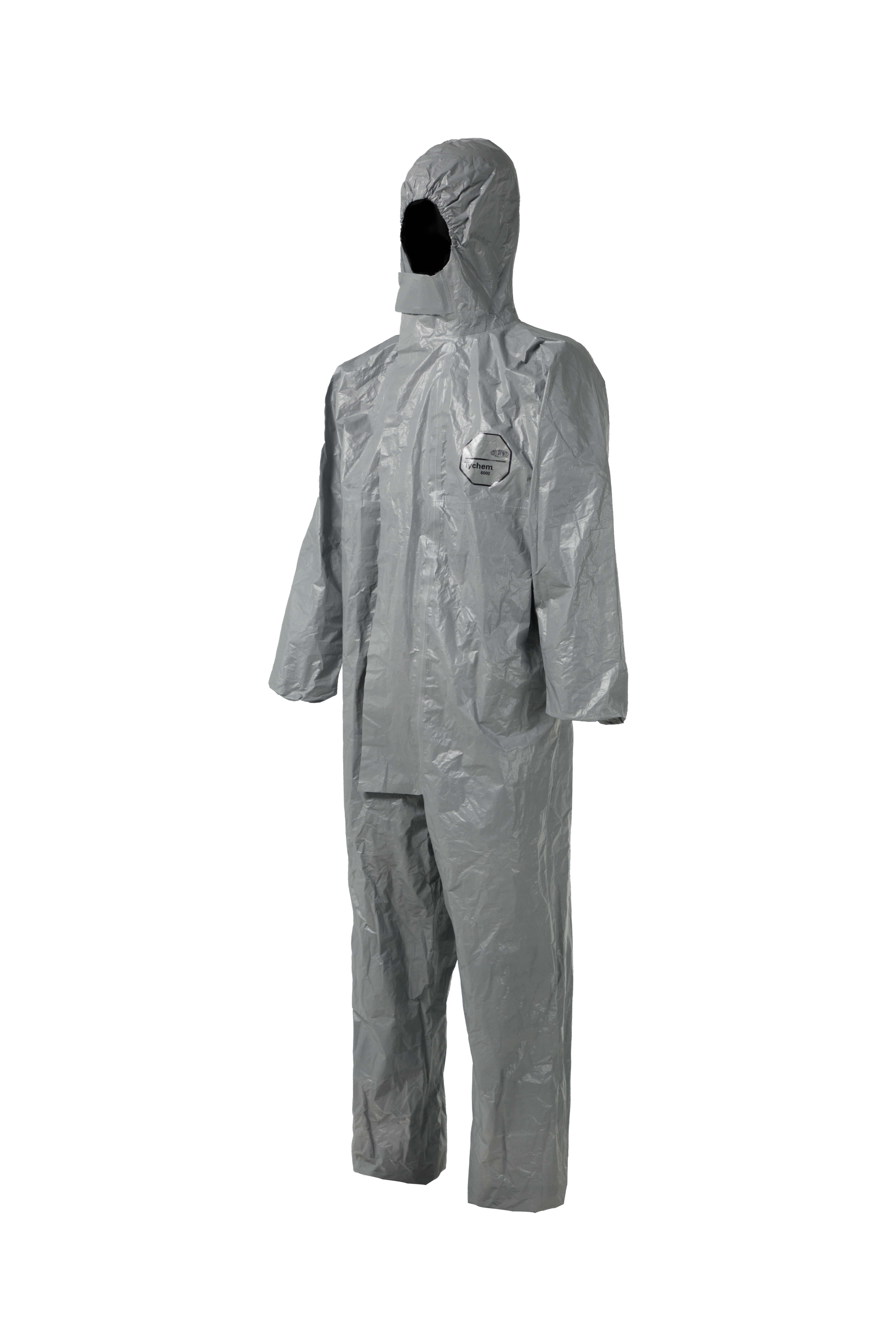

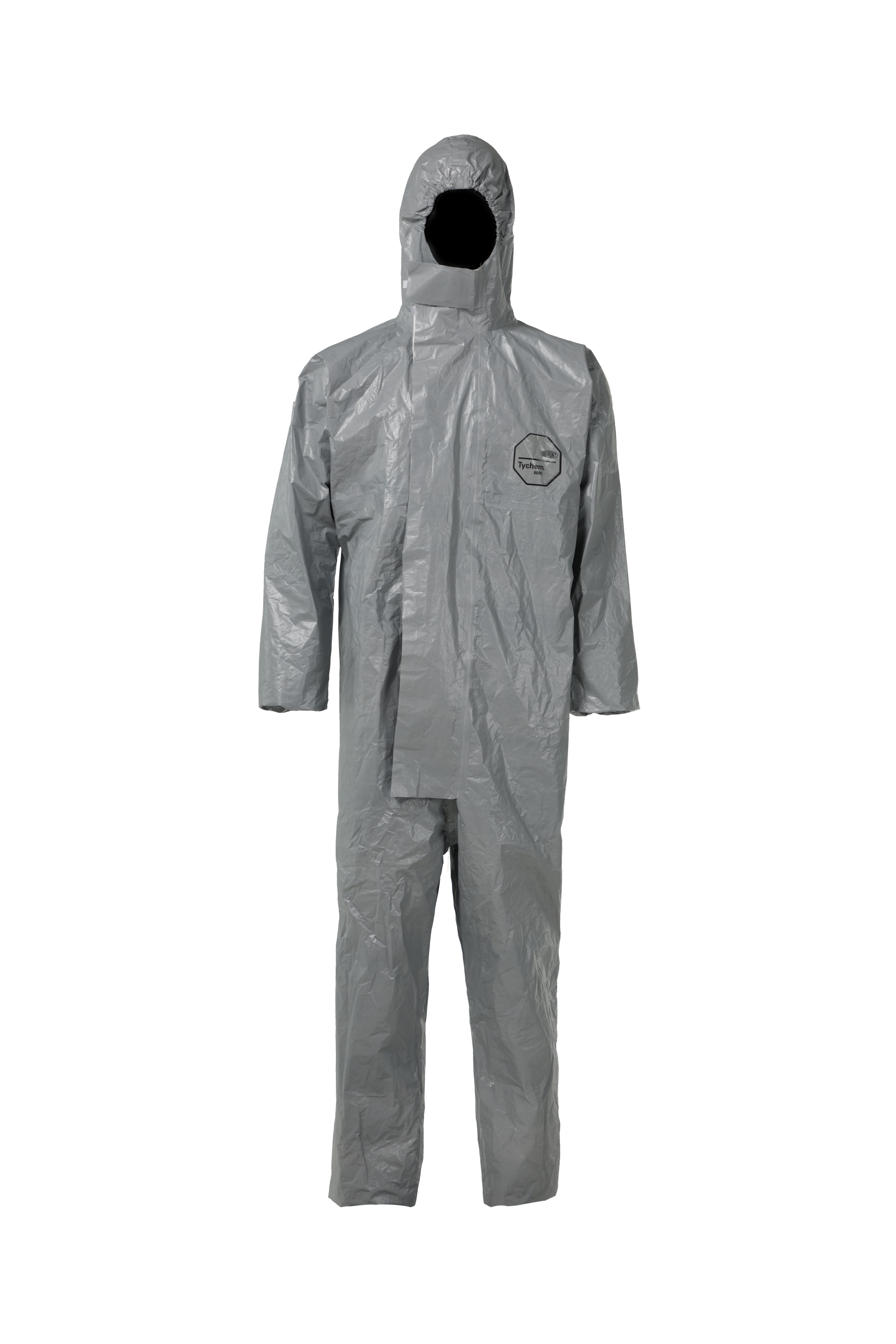

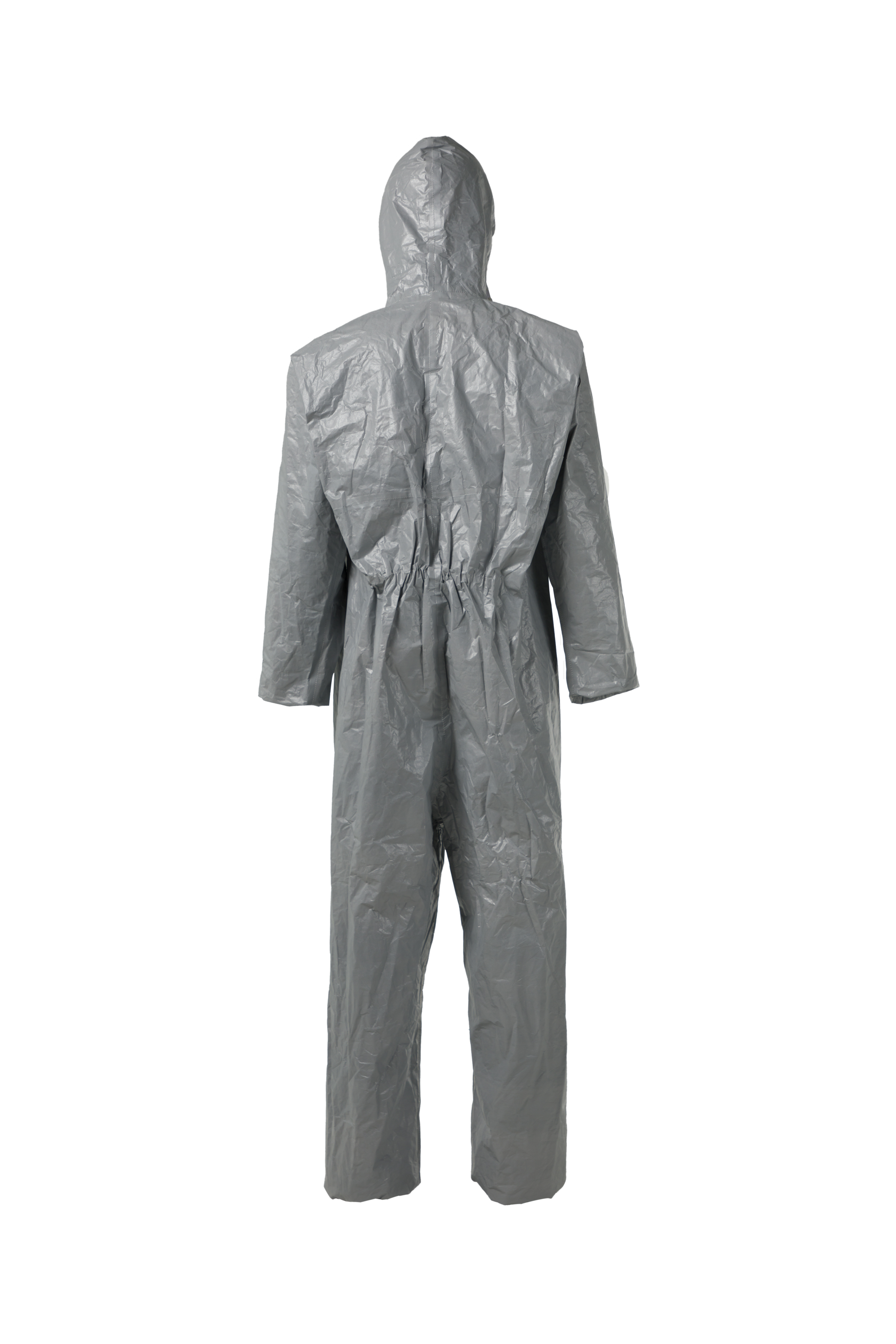

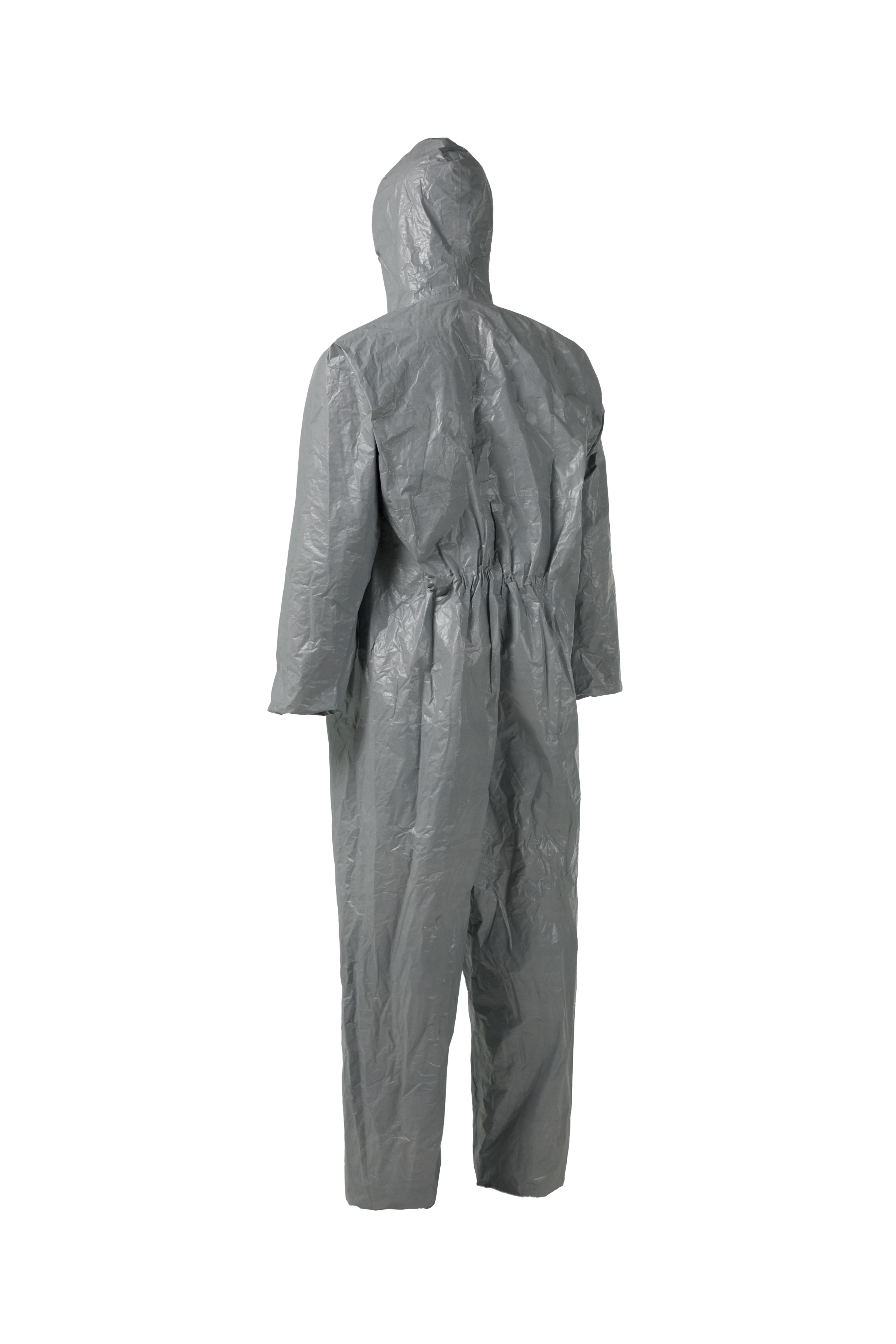

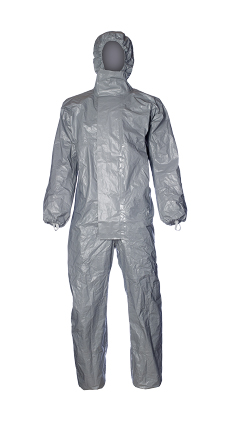

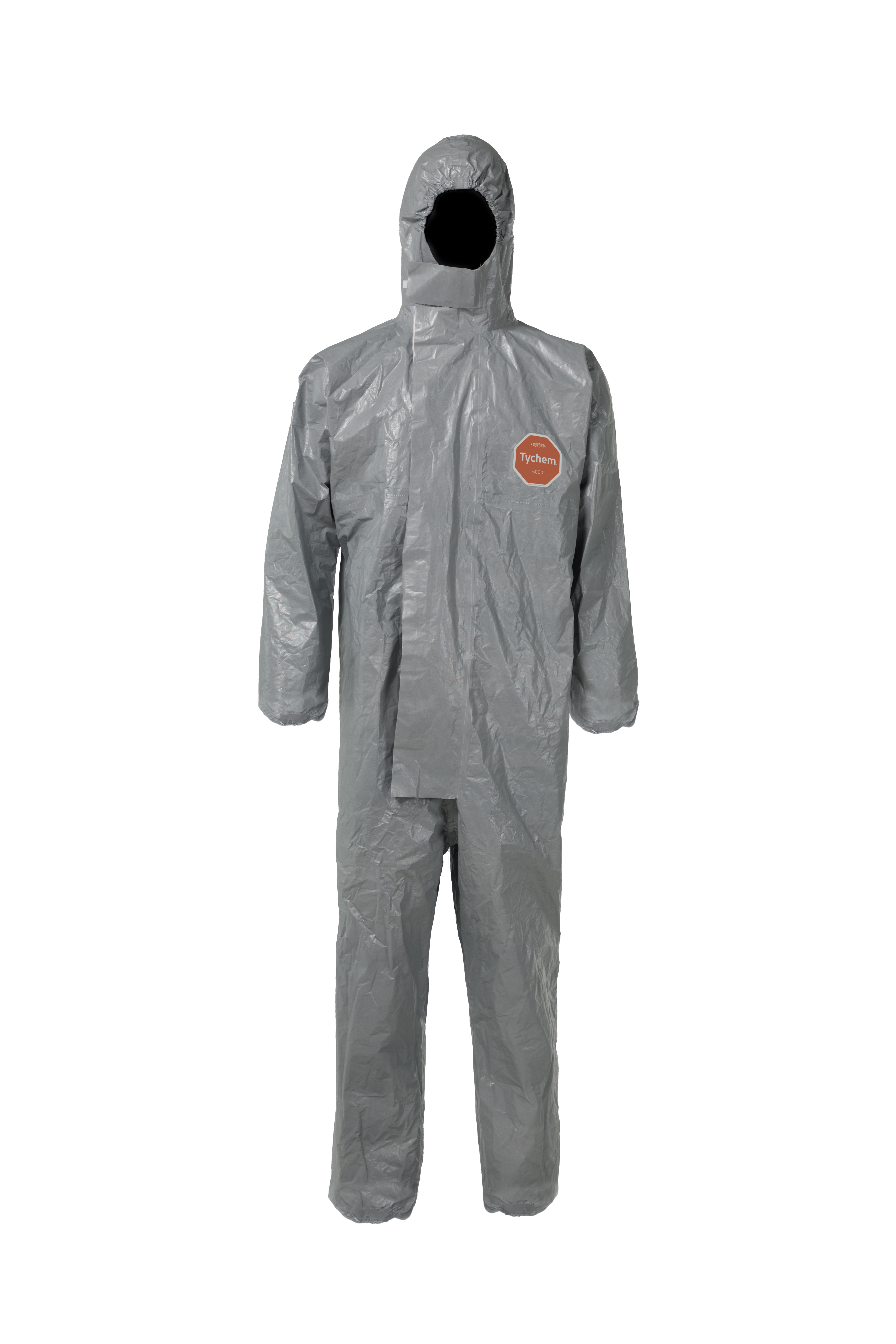

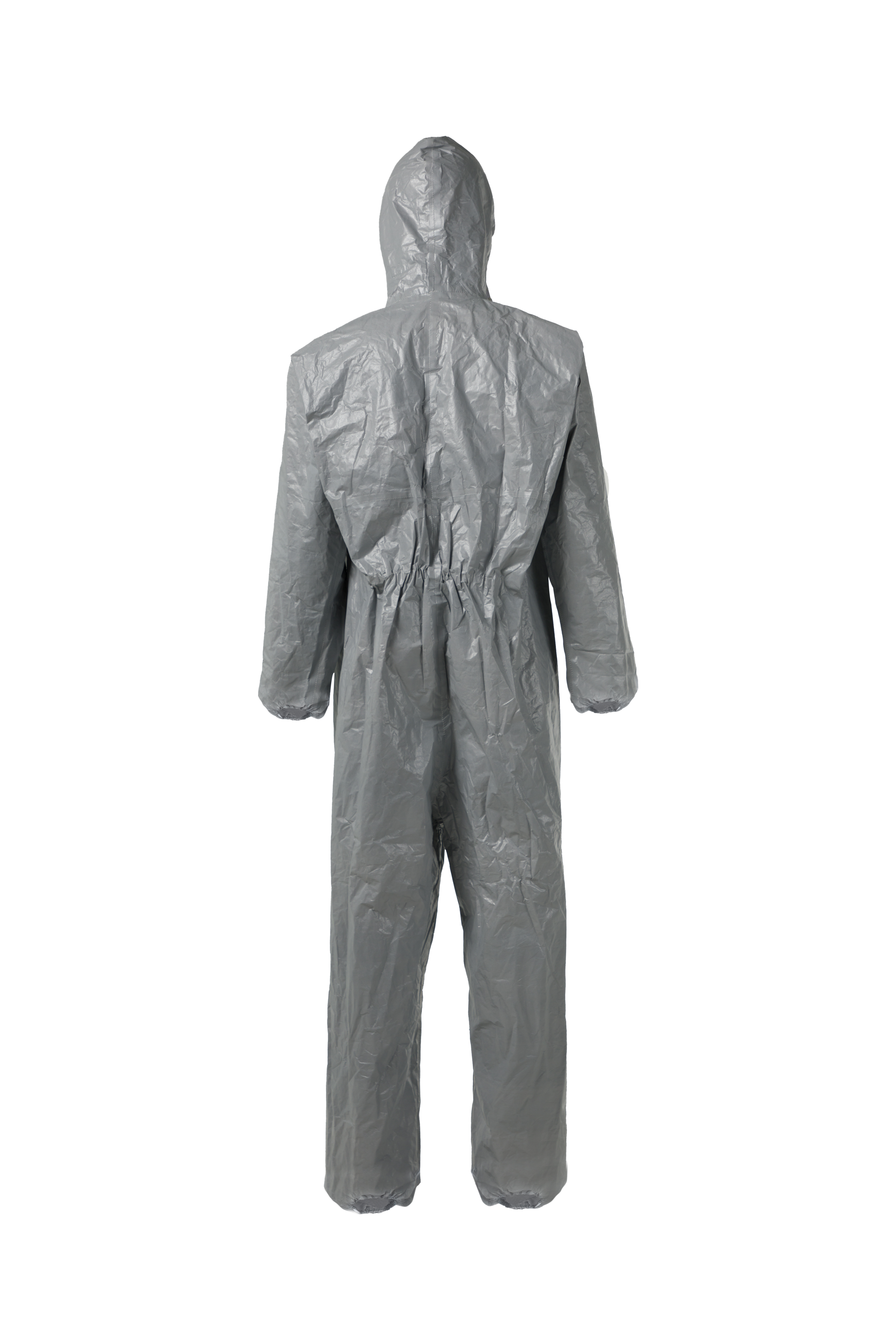

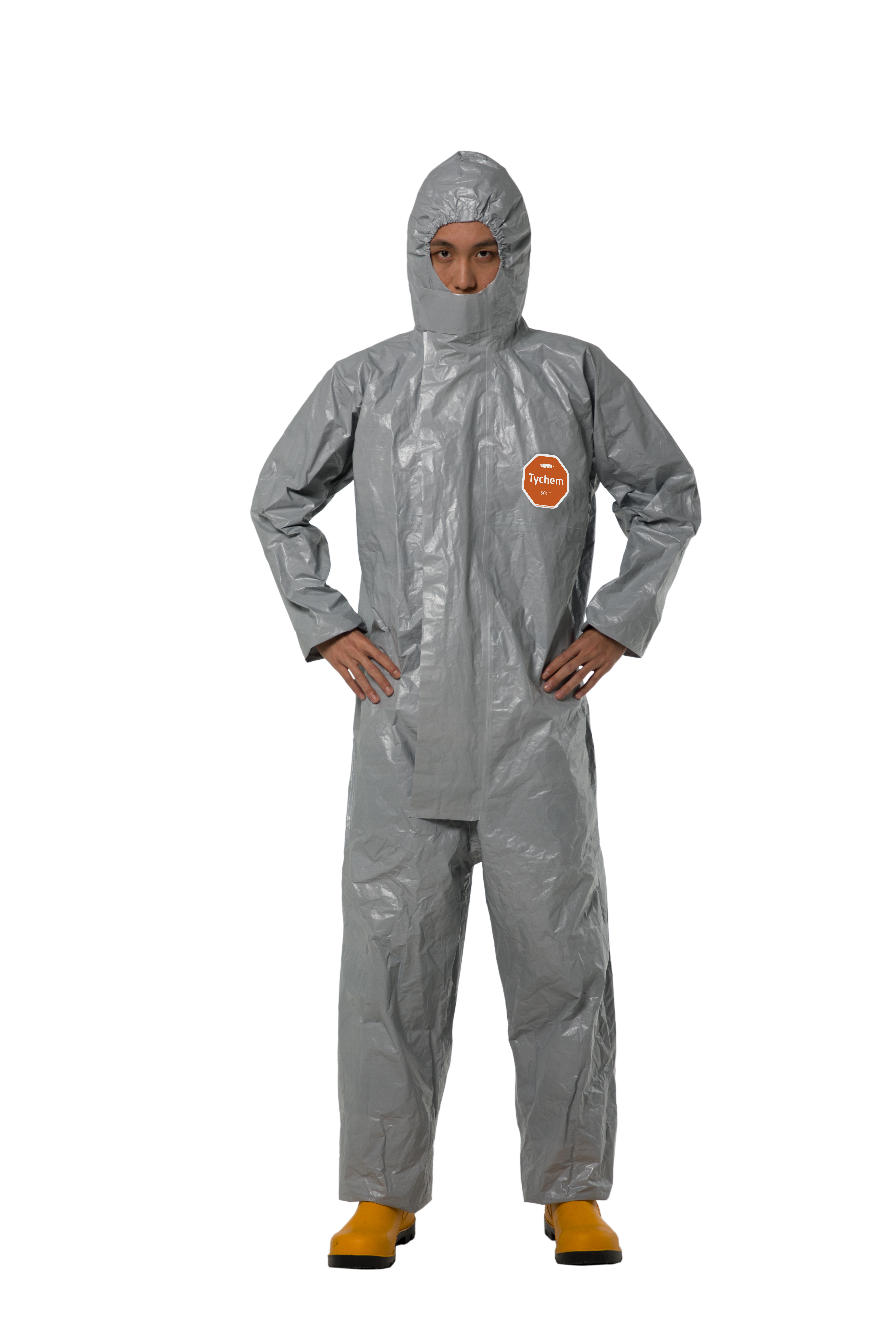

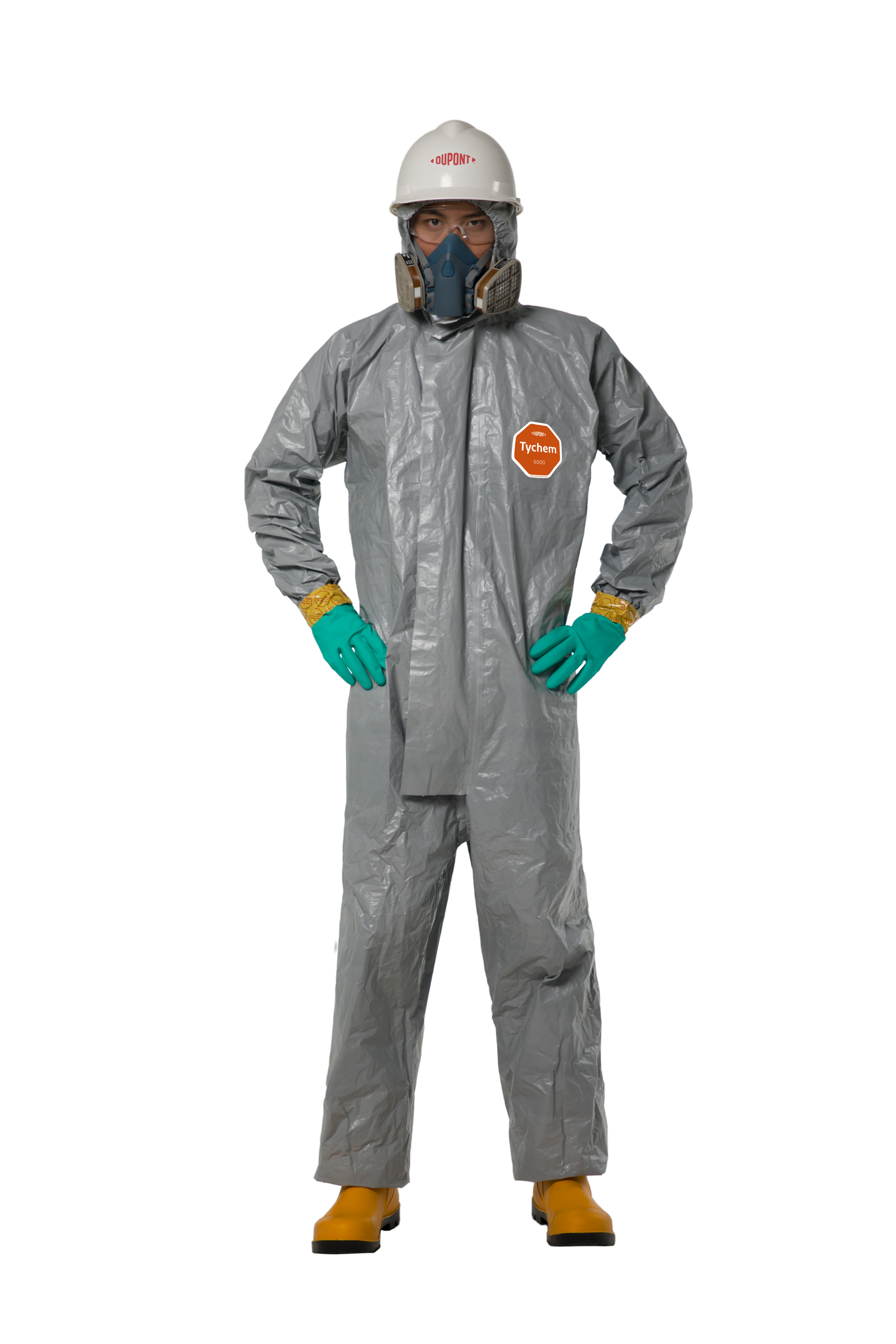

DuPont™ Tychem® 6000, model TF198T GY. Hooded coverall. Stitched and over-taped seams. Elastication at wrists, ankles, face and waist. Self-adhesive double zipper flap and chin flap. Grey. Also available in Orange color.




Hover over image to zoom

CATIII

T3

T4

T5

T6

EN 1149-5

EN 14126

Name Description
Full Part Number TFCHA5TYLA0
Fabric/Materials Tychem® 6000

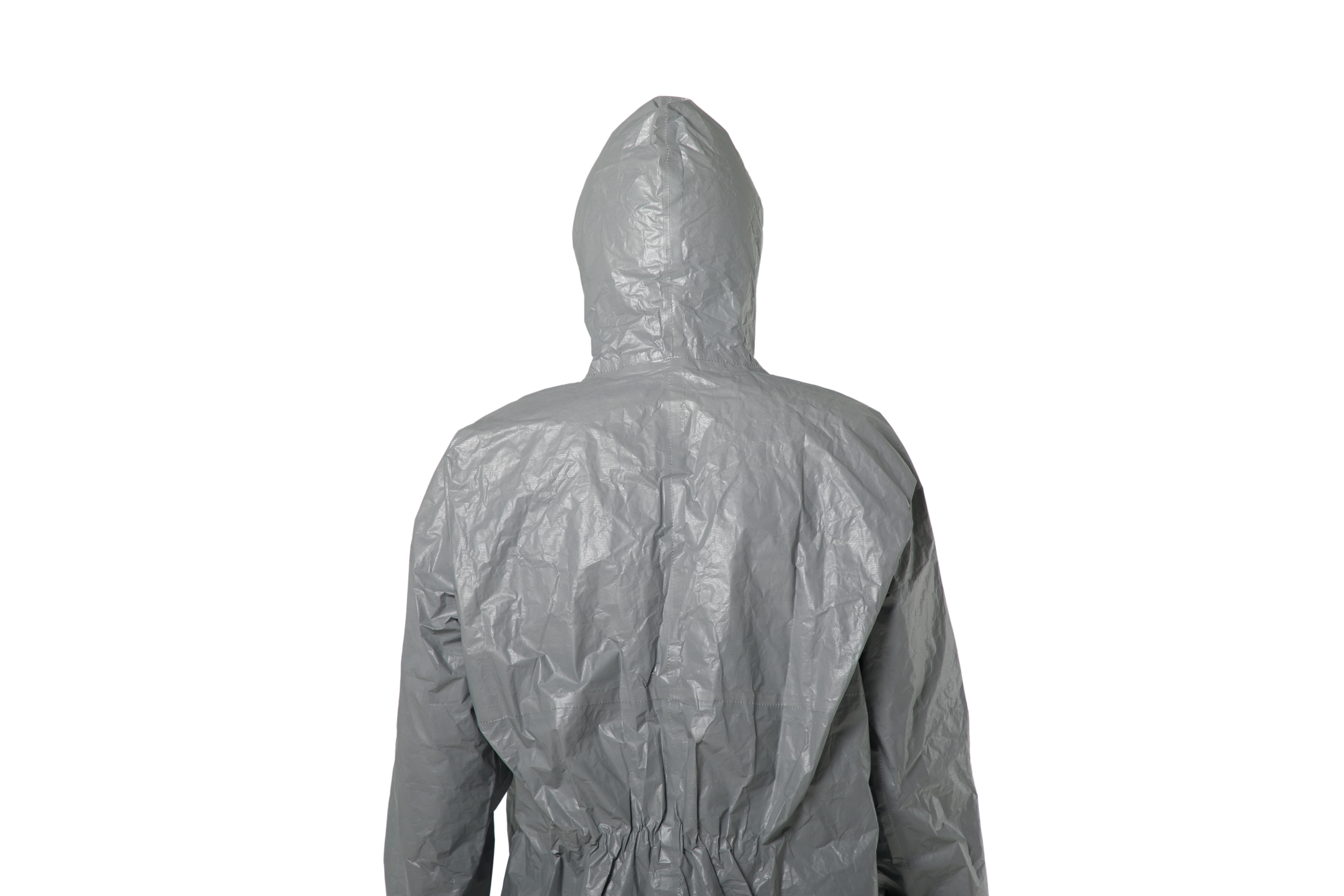

Design Hooded coverall with elastics
Seam Stitched and over-taped
Color Grey
Quantity/Box 25 per box, individually packed

FEATURES & PRODUCT DETAILS

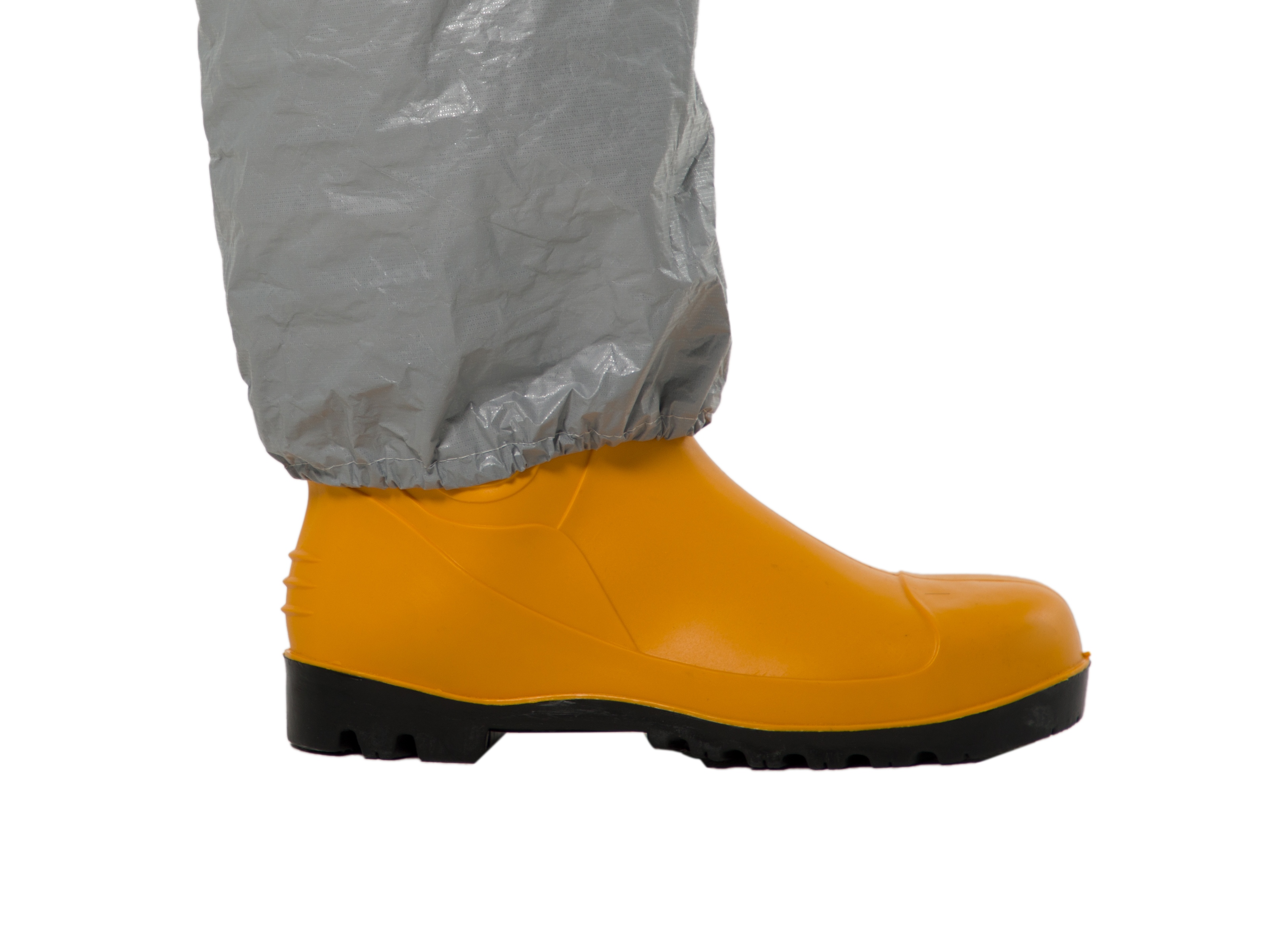

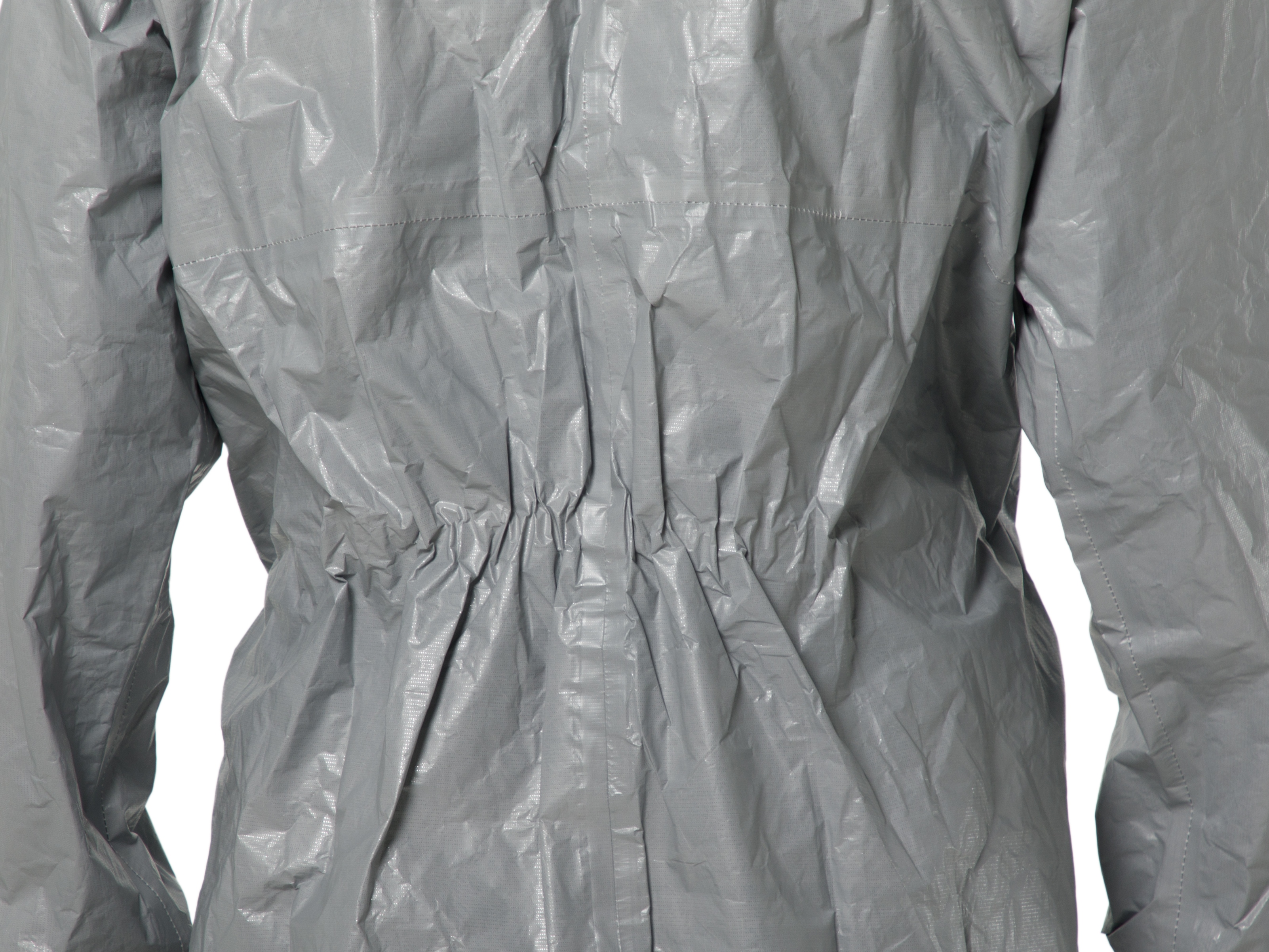

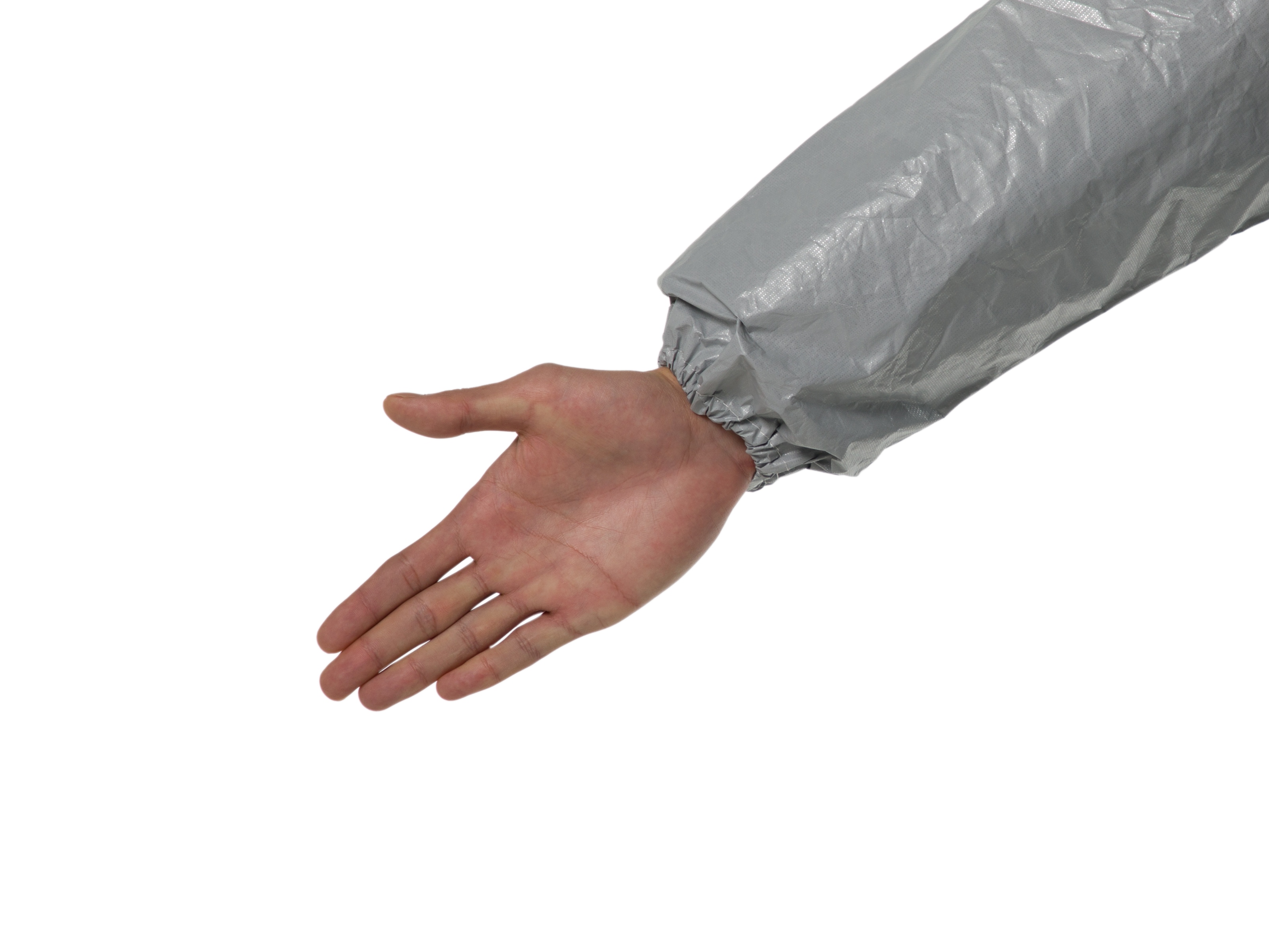

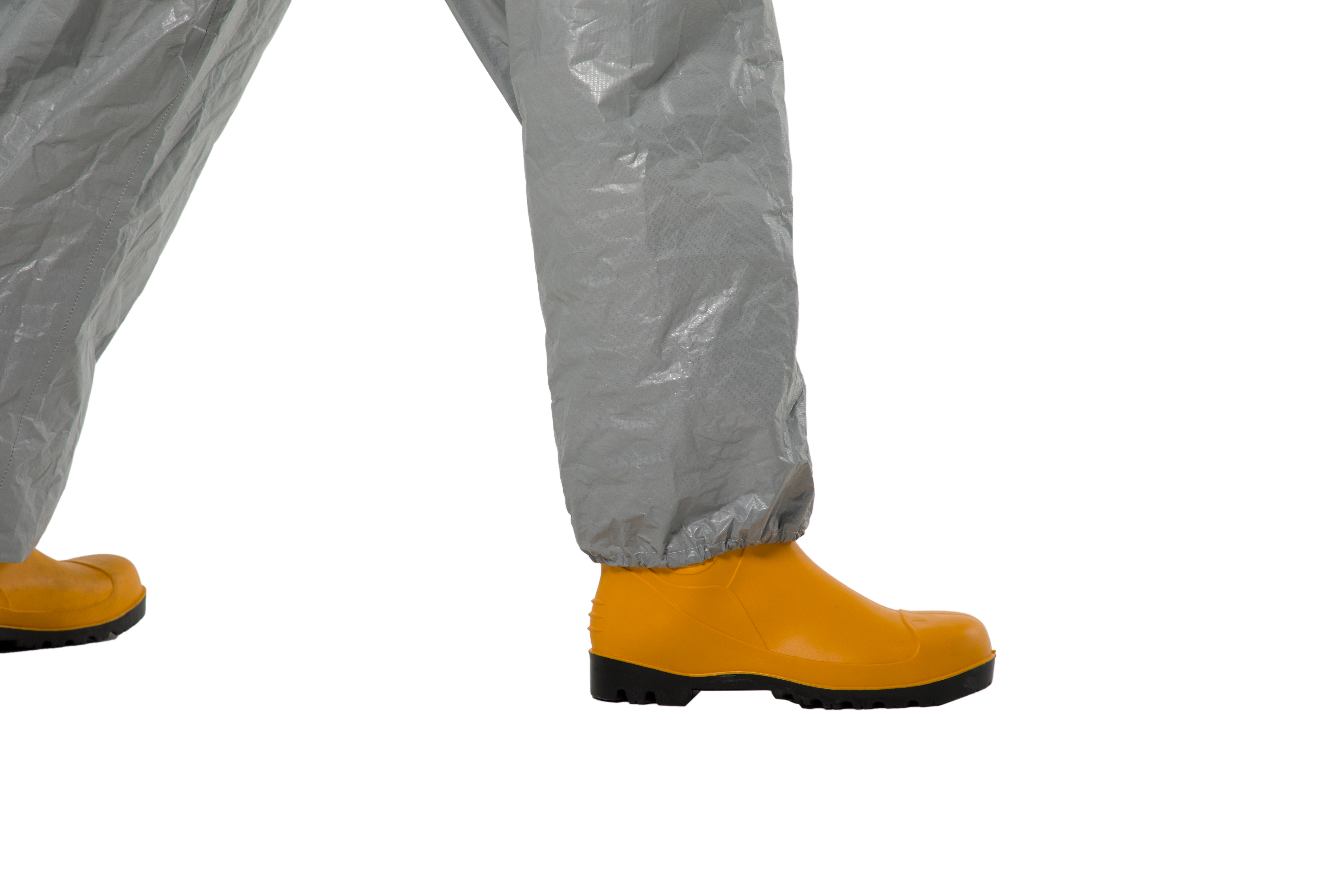

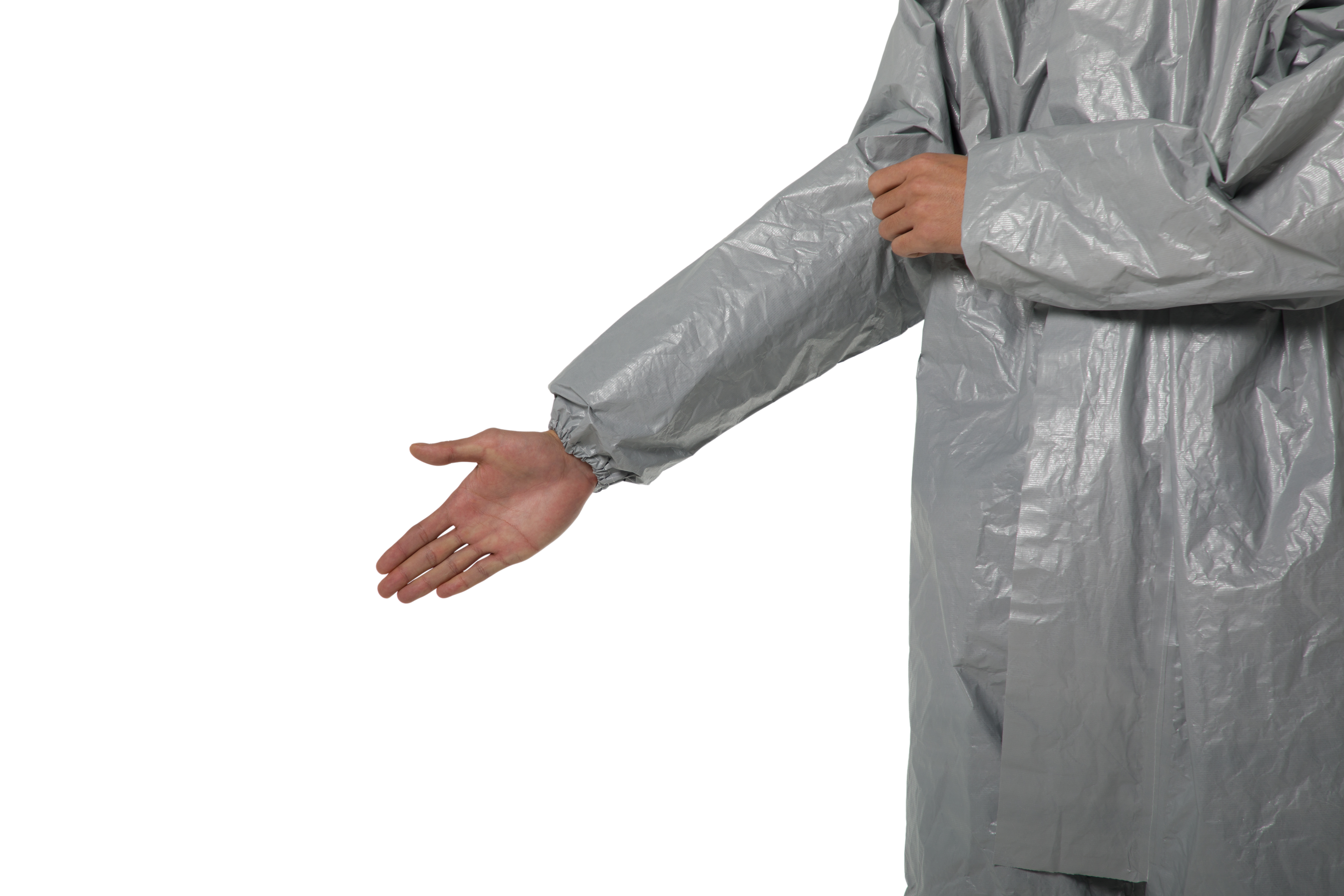

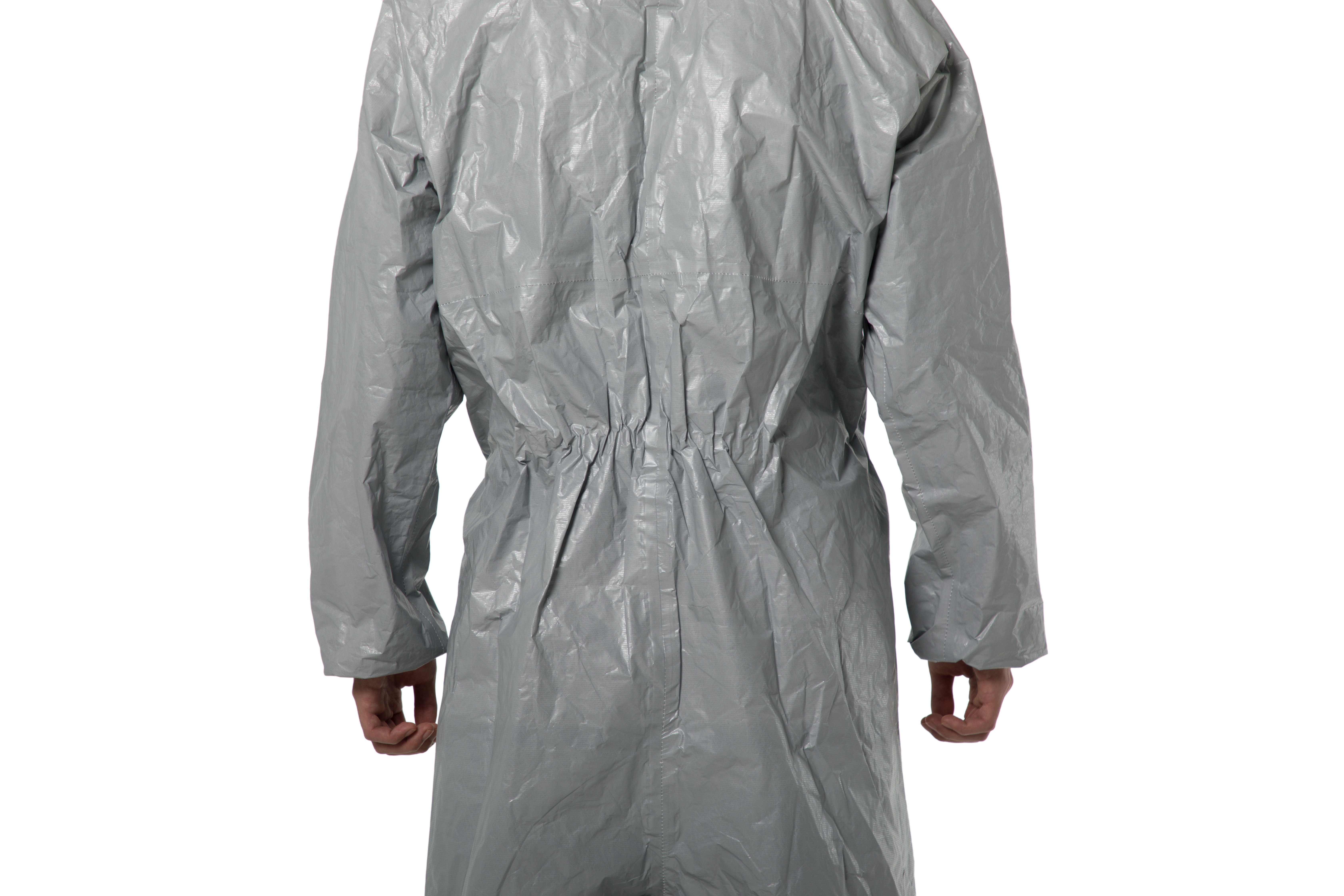

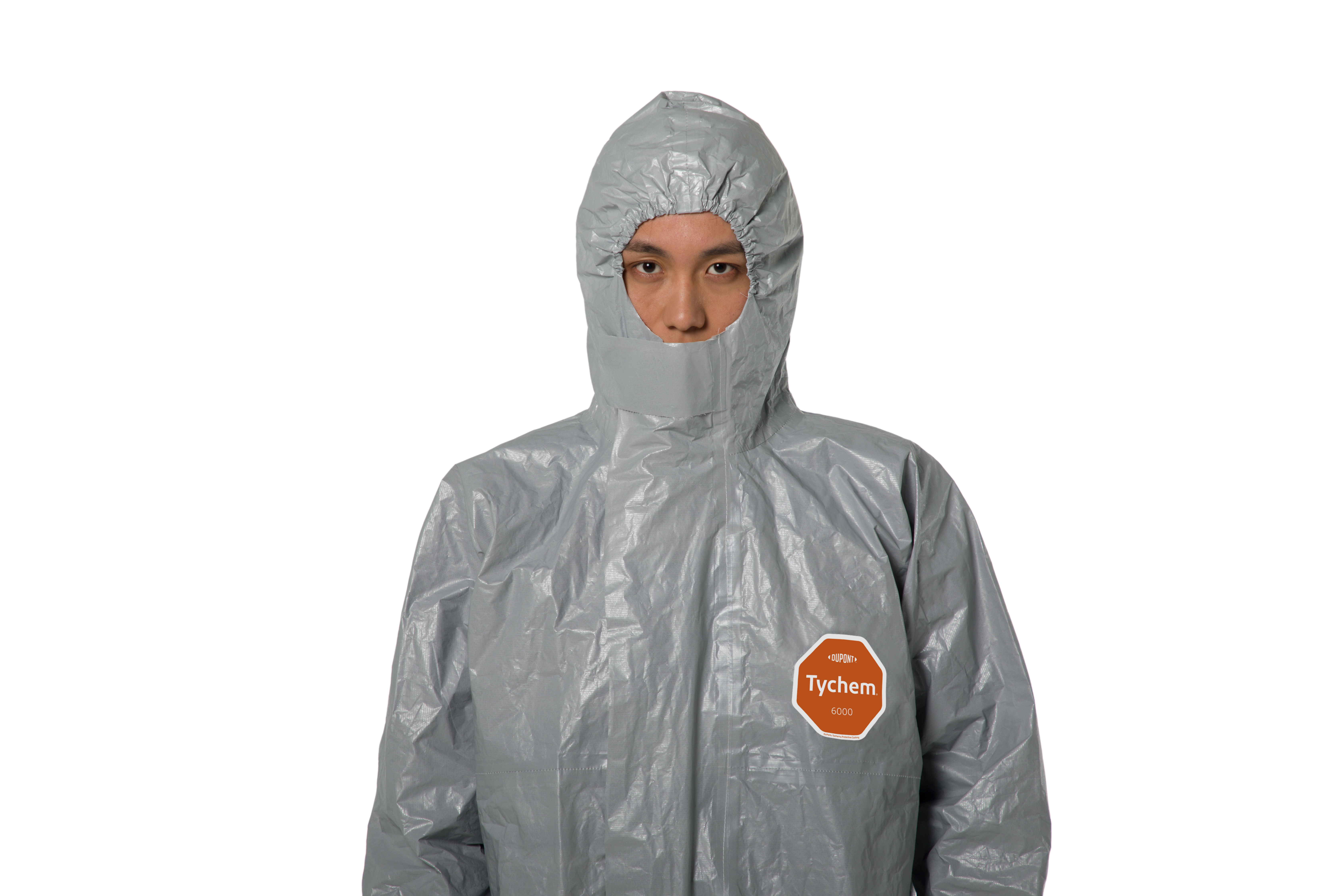

DuPont™ Tychem® 6000, model TF198T GY. Hooded coverall. Available in grey for discretionary needs and in sizes SM to 3XL. Stitched and over-taped seams. Elasticated face, wrists, waist and ankles for an optimal fit. Self-adhesive chin flap for tight seal of suit to face-masks.
Tychem® 6000 garments are made from a lightweight and durable fabric (<500g per garment) consisting of a proprietary barrier film laminated to a heavy duty Tyvek® substrate. They offer excellent chemical permeation protection to an extensive range of chemicals, helping to protect personnel against numerous toxic industrial organic chemicals, highly concentrated inorganic chemicals (even under pressure), particulates, biohazards and certain chemical warfare agents.
Tychem® 6000 is used for a broad range of applications from chemical spill clean-up, emergency response, to military and petrochemical applications.

  • Stitched and over-taped seams with barrier tape for protection and strength

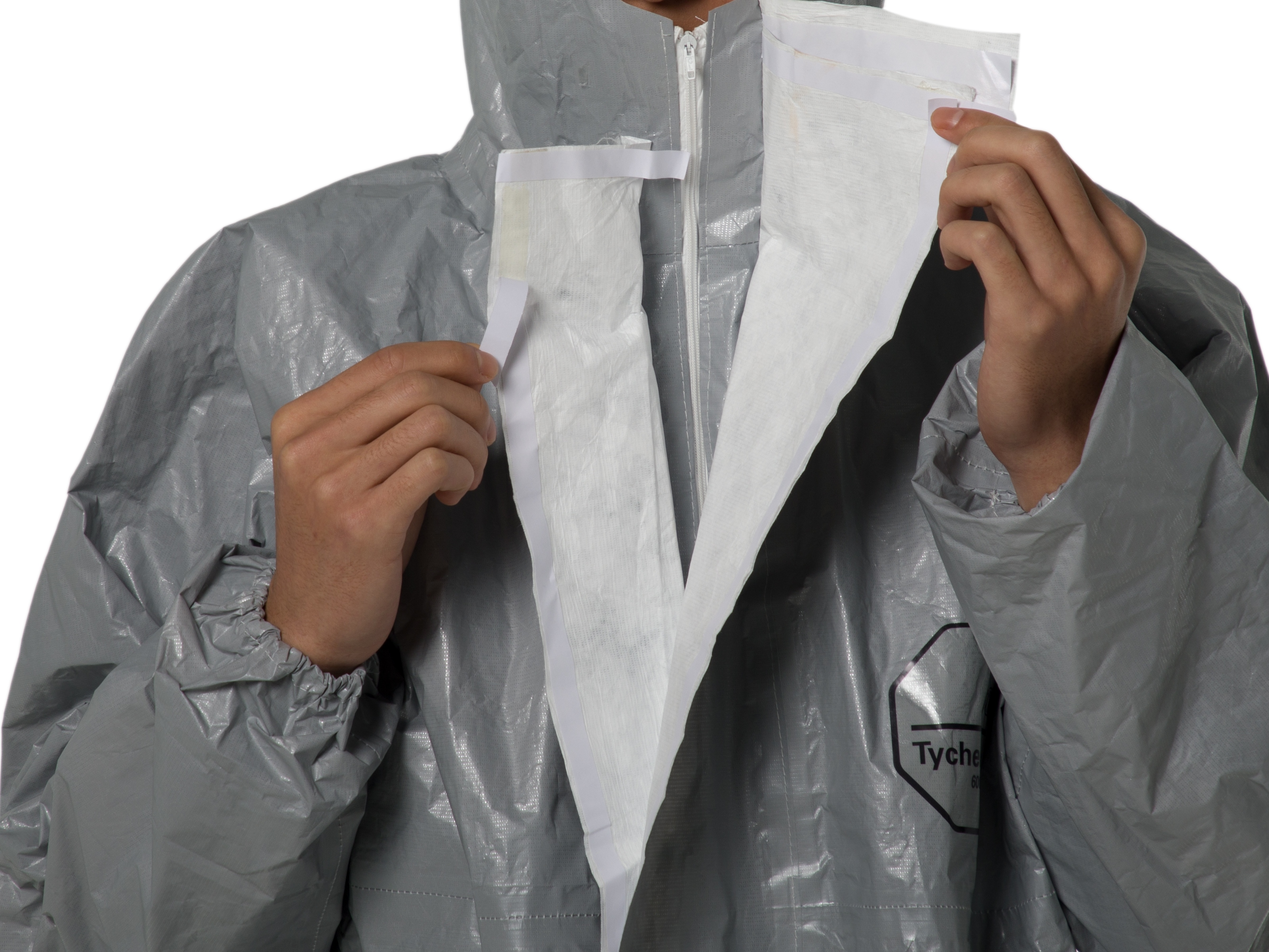

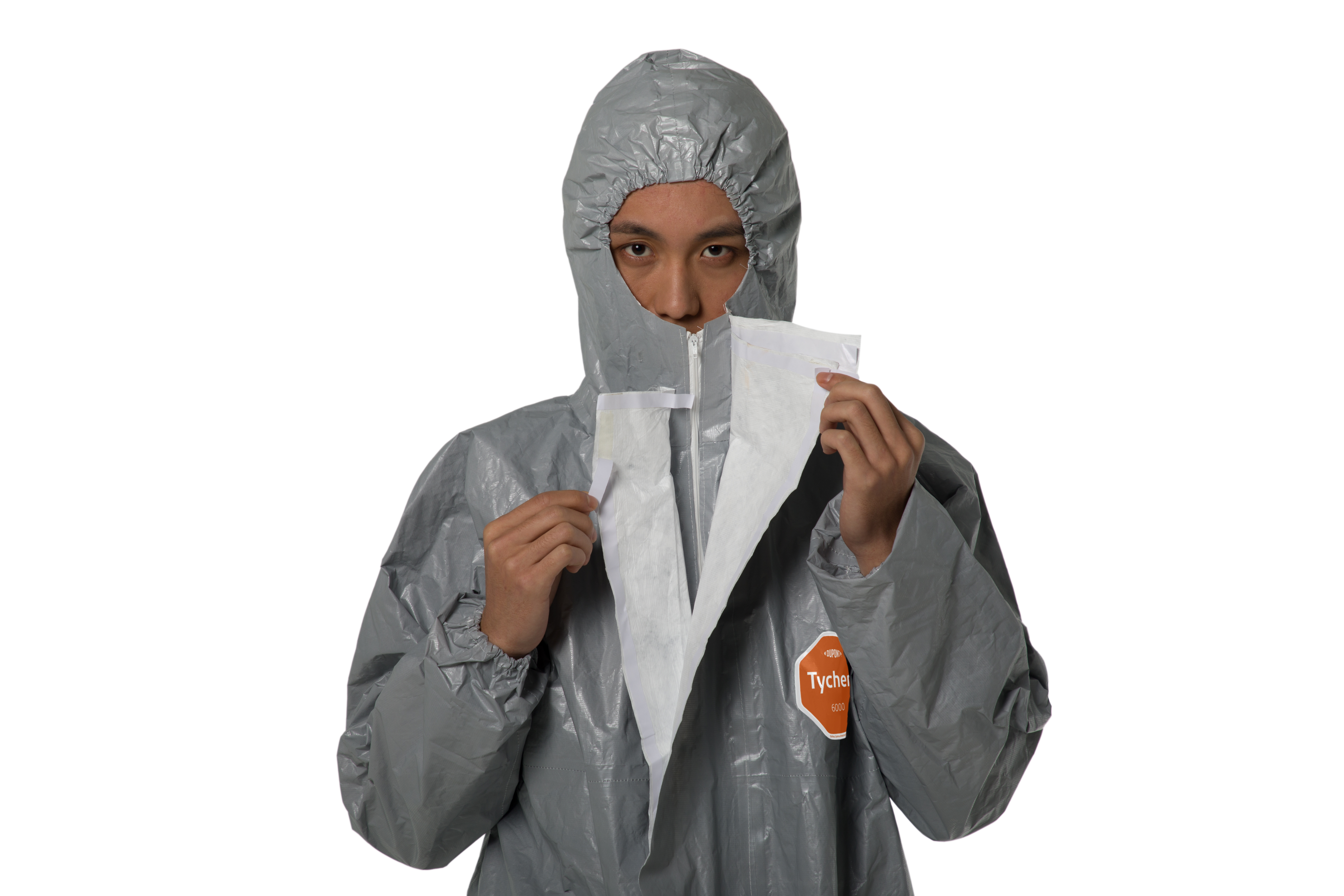

  • Self-adhesive double zipper flap closure system for higher protection
  • Limited-Use protective clothing, Type 3-B, 4-B, 5-B and 6-B Protection
  • EN 14126 (barrier to infective agents), EN 1073-2 (protection against radioactive contamination)
  • Antistatic treatment (EN 1149-5) - on inside
  • Also available in Orange color

ADDITIONAL EQUIPMENT NEEDED

Fabric & Permeation/Penetration Data

Physical Properties

Data relating to mechanical performance of the fabrics used in DuPont chemical protective clothing, listed for the selected garment according to the test methods and relevant European standard, if applicable. Such properties, including abrasion and flex-cracking resistance, tensile strength and puncture resistance can help in the assessment of protective performance.

Property Test Method Typical Result EN
Abrasion Resistance 7 EN 530 Method 2 >2000 cycles 6 of 6 1
Basis Weight DIN EN ISO 536 120 g/m2 N/A
Bursting Strength (Mullenburst) ISO 2758 610 kPa N/A
Colour. N/A (598) Grey N/A
Exposure to high Temperature N/A (598) Garments seams opens at ˜98°C N/A
Exposure to low Temperature N/A (598) Flexibility retained down to -73°C N/A
Flex Cracking Resistance 7 EN ISO 7854 Method B >1000 cycles 1 of 6 1
Flex Cracking Resistance at -30 °C EN ISO 7854 Method B >1000 cycles N/A
Puncture Resistance EN 863 26 N 2 of 6 1
Resistance to Ignition 7 EN 13274-4 Method 3 No after flame, no drop formation, hole formation N/A
Resistance to water penetration DIN EN 20811 >30 kPa N/A
Surface Resistance at RH 25% 7 EN 1149-1 ≤ 2,5x109 Ohm N/A
Surface Resistance at RH 25%, outside 7 EN 1149-1 No antistatic treatment N/A
Tensile Strength (MD) DIN EN ISO 13934-1 240 N 3 of 6 1
Tensile Strength (XD) DIN EN ISO 13934-1 245 N 3 of 6 1
Thickness (PPSH-249) DIN EN ISO 534 210 µm N/A
Trapezoidal Tear Resistance (MD) EN ISO 9073-4 40 N 2 of 6 1
Trapezoidal Tear Resistance (XD) EN ISO 9073-4 35 N 2 of 6 1
  •  According to EN 14325
  •  According to EN 14126
  •  According to EN 1073-2
  •  According to EN 14116
  •   According to EN 11612
  •  Front Tyvek ® / Back
  •  Based on test according to ASTM D-572
  •  See Instructions for Use for further information, limitations and warnings
  •  Larger than
  •  Smaller than
  •  Not Applicable
  •  Standard Deviation
