Tyvek / Tychem® 6000 F

Model CHA6

Tychem® 6000 F

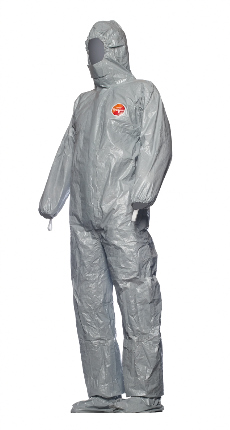

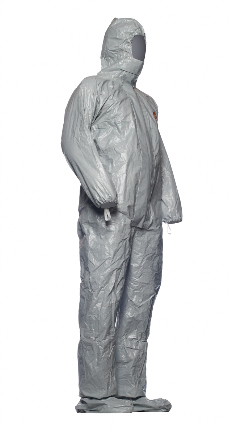

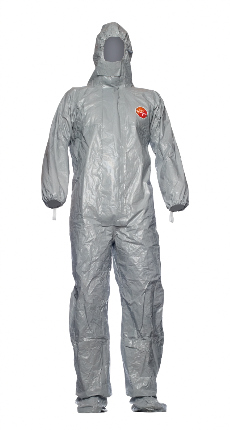

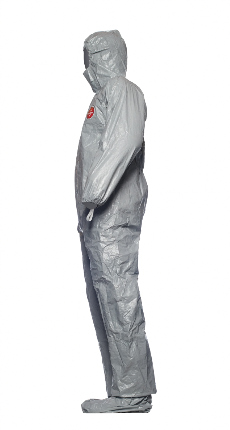

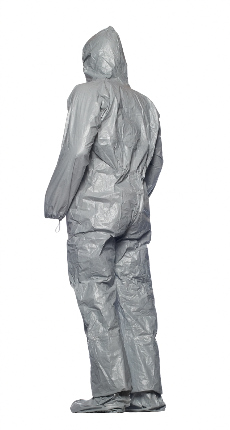

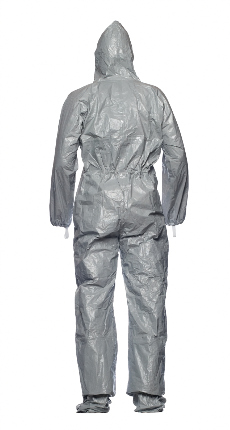

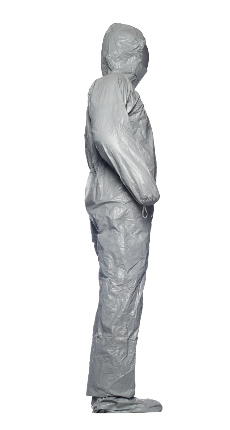

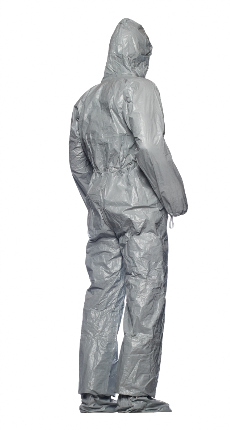

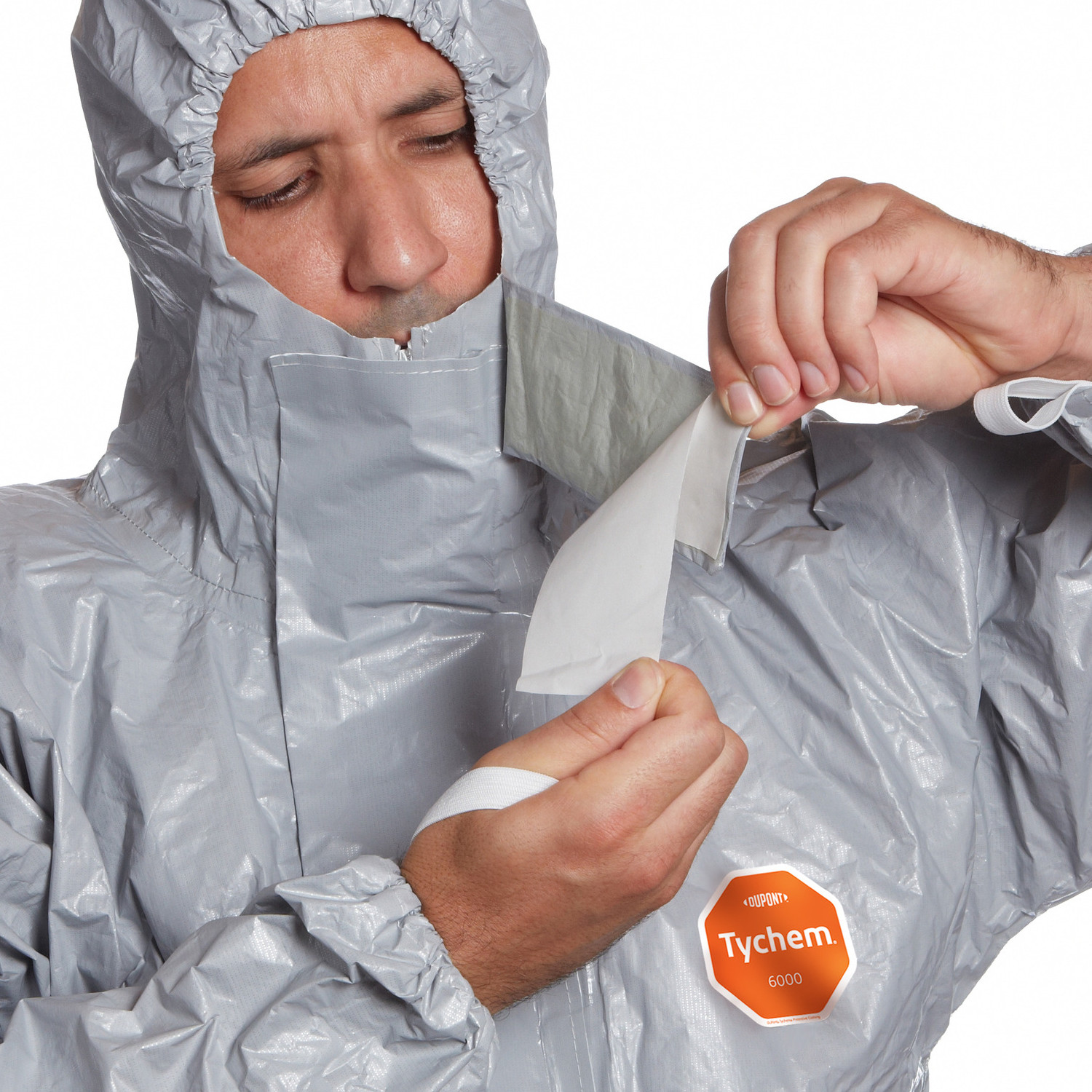

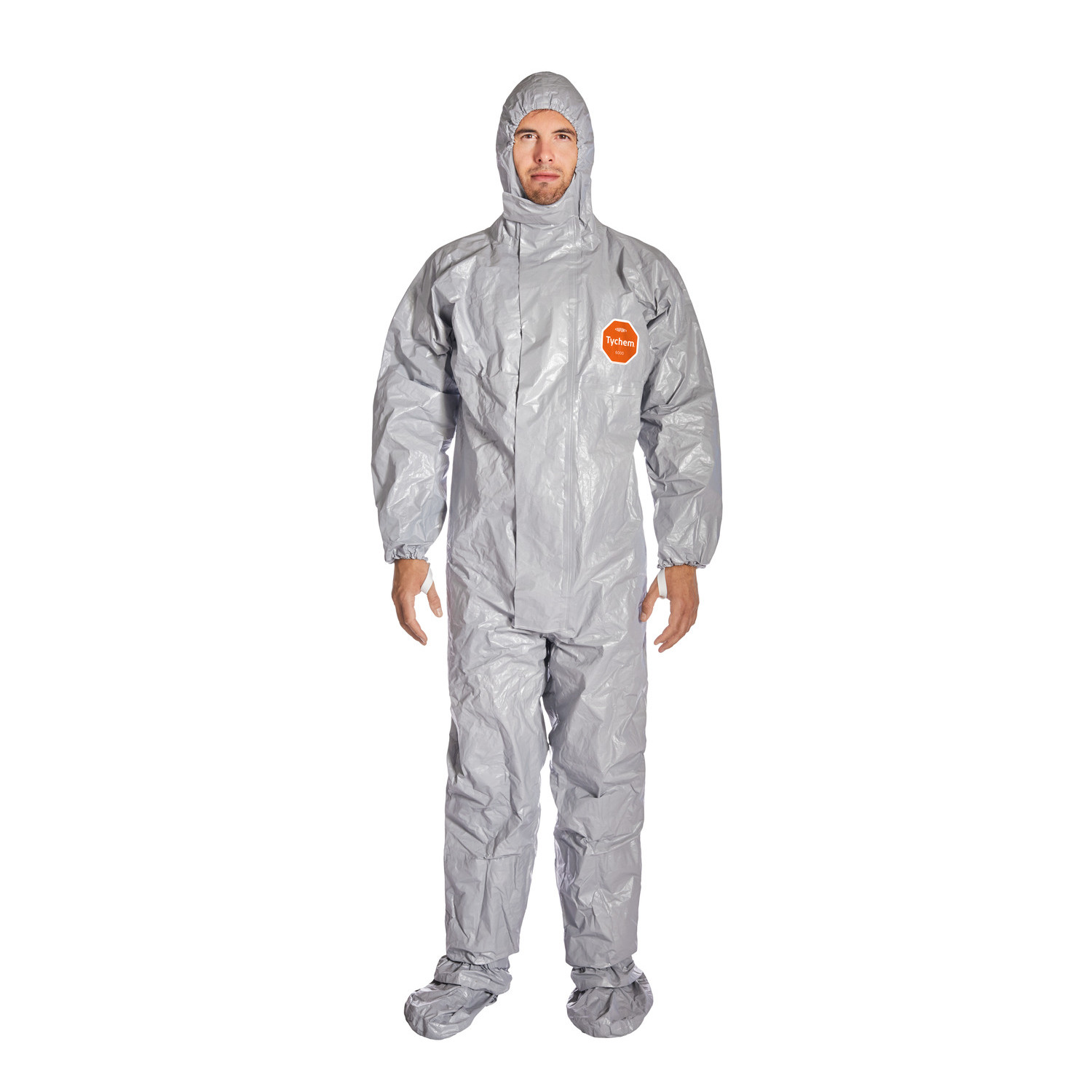

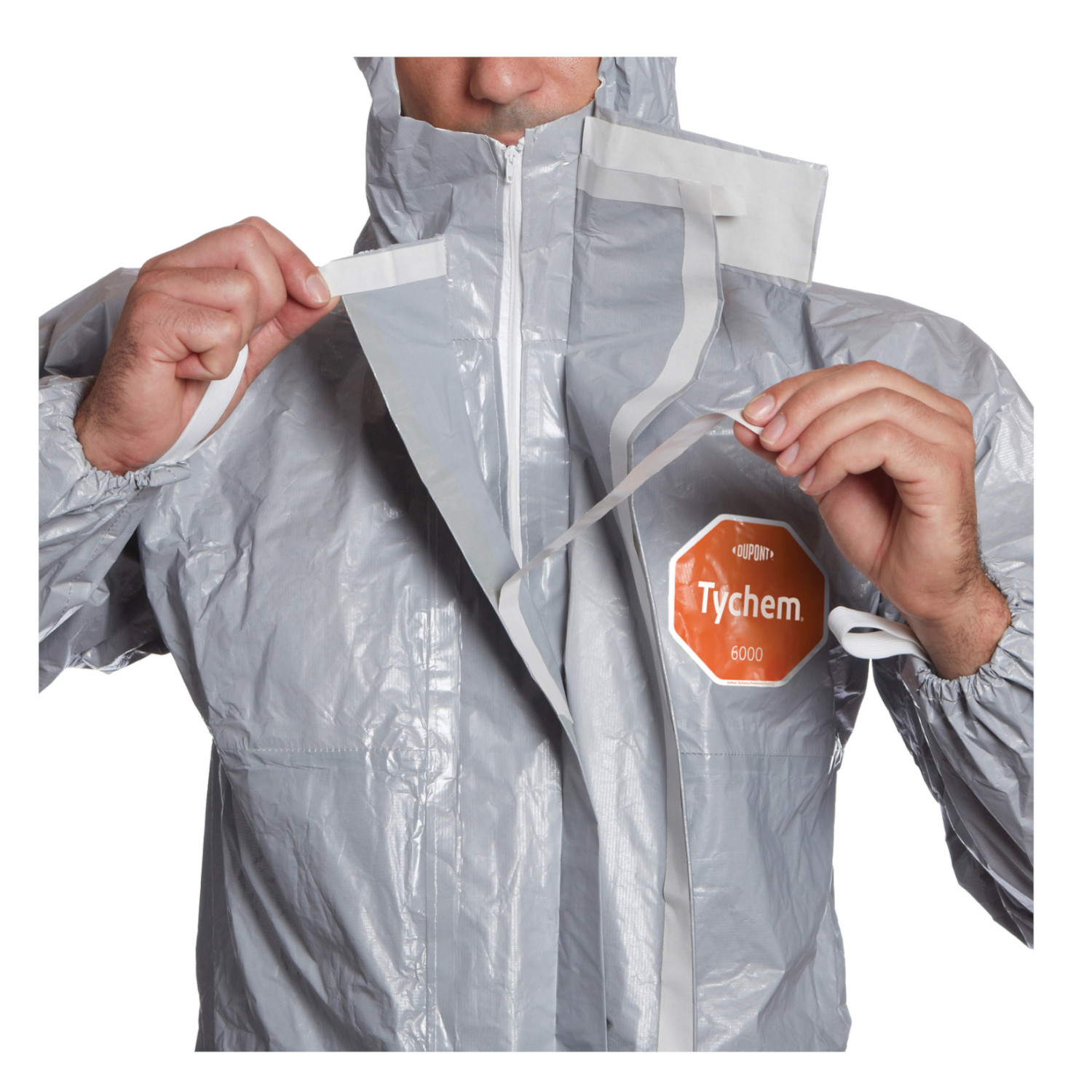

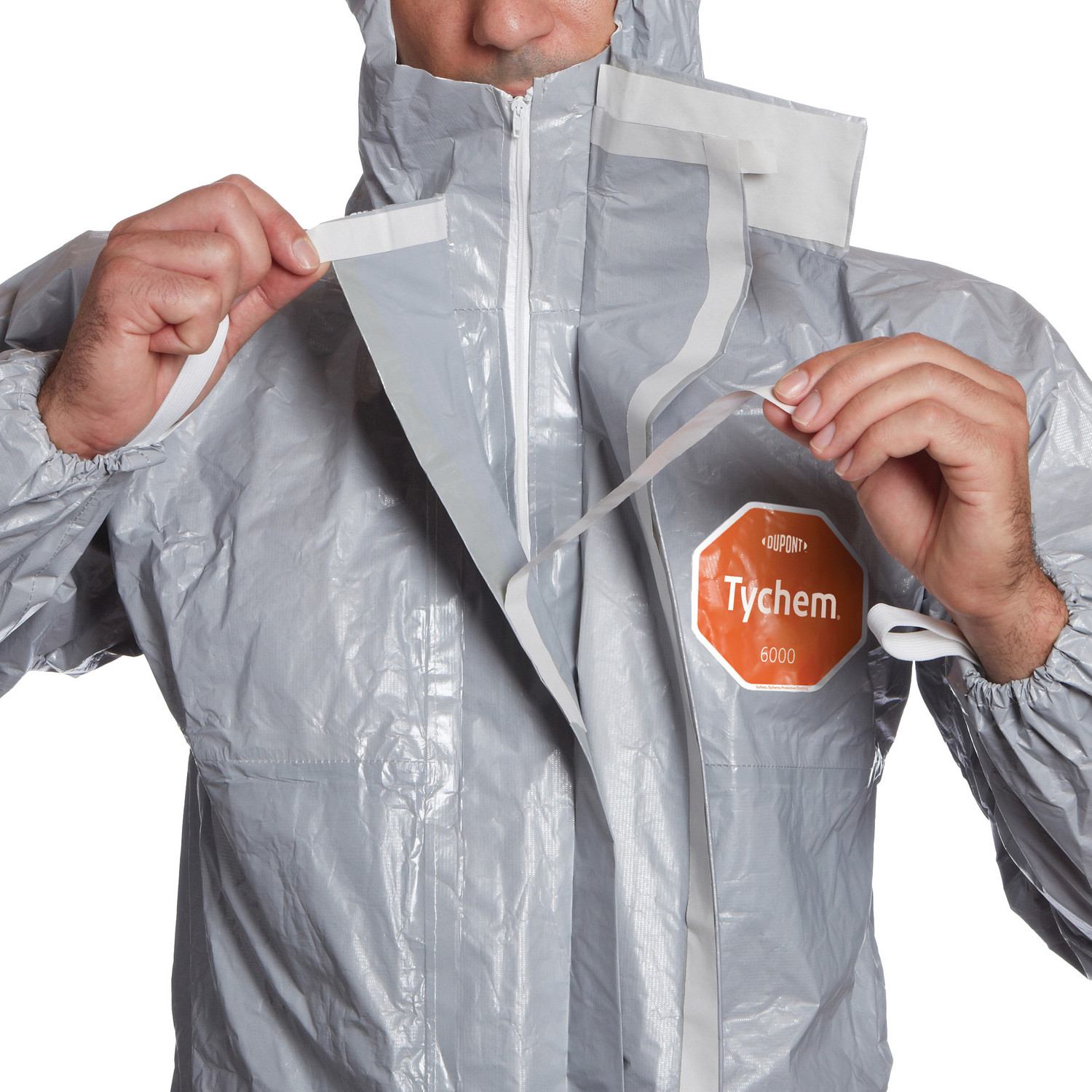

DuPont™ Tychem® 6000 F with dissipative socks. Hooded coverall. Attached socks and boot flap. Stitched and over-taped seams. Thumb loops. Elastication at wrists, face and waist. Self-adhesive double zipper flap and chin flap. Grey.




Hover over image to zoom

CATIII

T3

T4

T5

T6

EN 1073-2

EN 1149-5

EN 14126

Name Description
Full Part Number TFCHA6TGY16
Fabric/Materials Tychem® 6000
Design Hooded coverall with elastics, thumb loops, attached dissipative socks and boot flap
Seam Stitched and over-taped
Color Grey
Quantity/Box 20 per box, individually packed

FEATURES & PRODUCT DETAILS

DuPont™ Tychem® 6000 F with dissipative socks. Hooded coverall with integrated socks to be worn inside shoes or boots and additional knee-length boot flaps. Available in grey in sizes SM-3X. Elasticated face, wrists and waist for an optimal fit, thumb loops prevent sleeves from riding up. Self-adhesive chin flap for tight seal of suit to face-masks.
Tychem® 6000 F garments are made from a lightweight and durable fabric (<500g per garment) consisting of a proprietary barrier film laminated to a heavy duty Tyvek® substrate. They offer excellent chemical permeation to an extensive range of chemicals, helping to protect personnel against numerous toxic industrial organic chemicals, highly concentrated inorganic chemicals (even under pressure), particulates, biohazards and certain chemical warfare agents.
Tychem® 6000 F is used for a broad range of applications from industrial manufacturing, cleaning and maintenance, petrochemical applications to chemical spill clean-up, emergency response amd military applications.

  • Certified according to Regulation (EU) 2016/425.
  • Chemical protective clothing, Category III, Type 3-B, 4-B, 5-B and 6-B.
  • Antistatic treatment (EN 1149-5) - on inside
  • EN 14126 (barrier to infective agents), EN 1073-2 (protection against radioactive contamination)..
  • Stitched and over-taped seams with barrier tape for protection and strength
  • Attached dissipative socks

ADDITIONAL EQUIPMENT NEEDED

Fabric & Permeation/Penetration Data

Physical Properties

Data relating to mechanical performance of the fabrics used in DuPont chemical protective clothing, listed for the selected garment according to the test methods and relevant European standard, if applicable. Such properties, including abrasion and flex-cracking resistance, tensile strength and puncture resistance can help in the assessment of protective performance.

Property Test Method Typical Result EN
Abrasion Resistance 7 EN 530 Method 2 >2000 cycles 6/6 1
Basis Weight DIN EN ISO 536 120 g/m2 N/A
Bursting Strength (Mullenburst) ISO 2758 650 kPa N/A
Colour N/A. Grey N/A
Flex Cracking Resistance 7 EN ISO 7854 Method B >1000 cycles 1/6 1
Puncture Resistance EN 863 >10 N 2/6 1
Resistance to water penetration AATCC 127 >30 kPa N/A
Surface Resistance at RH 25%, inside 7 EN 1149-1 < 2,5 • 109 Ohm N/A
Surface Resistance at RH 25%, outside 7 EN 1149-1 No antistatic treatment N/A
Tensile Strength (MD) DIN EN ISO 13934-1 >100 N 3/6 1
Tensile Strength (XD) DIN EN ISO 13934-1 >100 N 3/6 1
Thickness DIN EN ISO 534 220 µm N/A
Trapezoidal Tear Resistance (MD) EN ISO 9073-4 >20 N 2/6 1
Trapezoidal Tear Resistance (XD) EN ISO 9073-4 >20 N 2/6 1
  •  According to EN 14325
  •  According to EN 14126
  •  According to EN 1073-2
  •  According to EN 14116
  •   According to EN 11612
  •  Front Tyvek ® / Back
  •  Based on test according to ASTM D-572
  •  See Instructions for Use for further information, limitations and warnings
  •  Larger than
  •  Smaller than
  •  Smaller than or equal to
  •  Not Applicable
  •  Standard Deviation

BIOLOGICAL BARRIER

PENETRATION AND REPELLENCY

GARMENT PERFORMANCE

WARNING

PERMEATION DATA
