Tyvek / Tychem® 6000

Model TF272B GY

Tychem® 6000

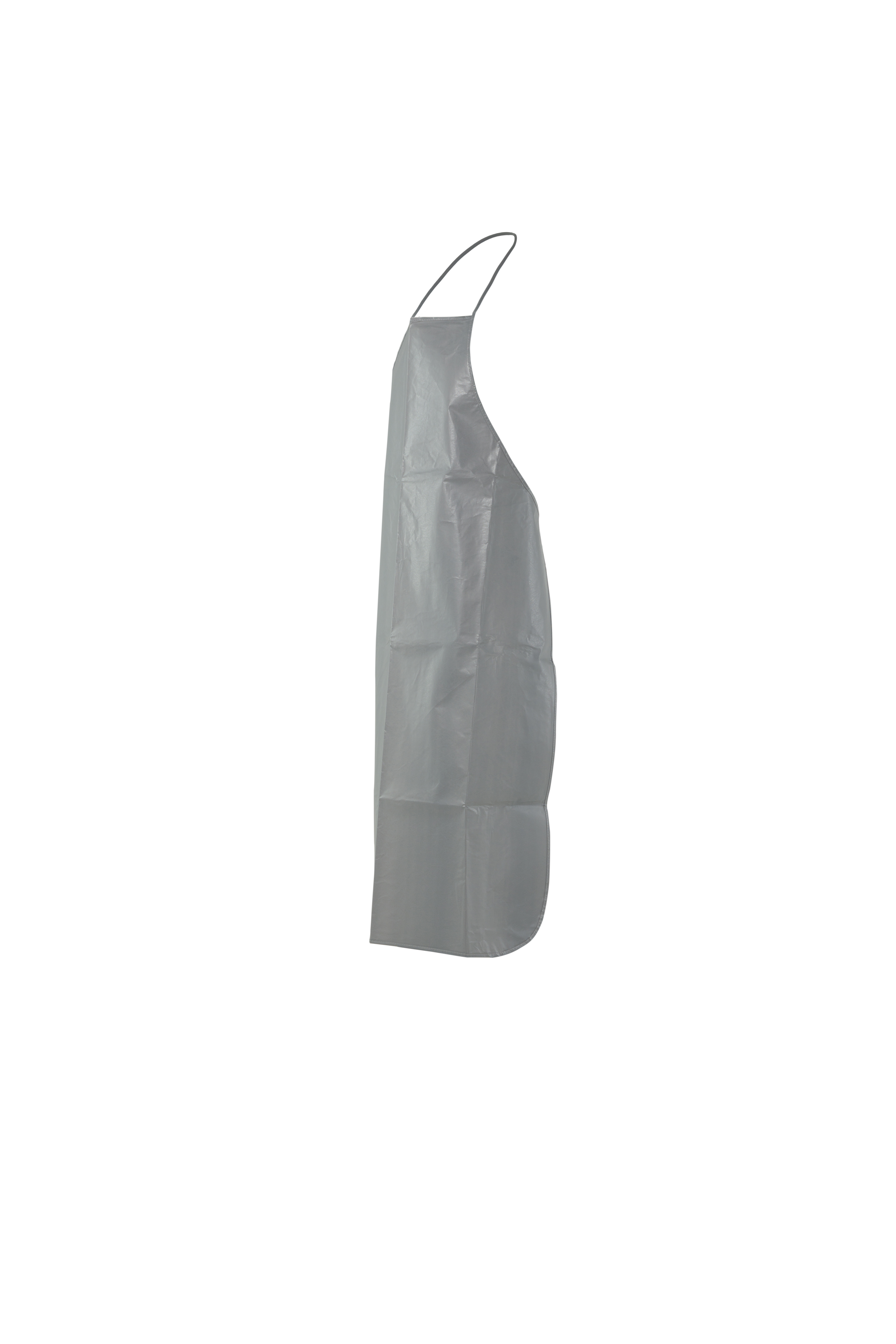

DuPont™ Tychem® 6000, model TF272B GY. Apron. Shin-length. Neck and waist ties. Grey.




Hover over image to zoom

CATIII

EN 14126

Name Description
Full Part Number TYFPA30BGYA0
Fabric / Material Tychem® 6000
Design Apron with ties
Color Grey
Quantity/Box 200 per box, bulk packed

FEATURES & PRODUCT DETAILS

DuPont™ Tychem® 6000, model TF272B GY. Shin-length (108cm excluding neck ties) apron with neck and waist ties. Available in grey and in one size.
Specially designed for use with Tychem® apparel, Tychem® accessories can help offer enhanced protection for body parts that are more exposed to hazardous substances.
Tychem® 6000 garments and accessories are made from a lightweight and durable fabric consisting of a proprietary barrier film laminated to a heavy duty Tyvek® substrate. They offer excellent chemical permeation protection to an extensive range of chemicals, helping to protect personnel against numerous toxic industrial organic chemicals, highly concentrated inorganic chemicals (even under pressure), particulates, biohazards and certain chemical warfare agents.
Tychem® 6000 is used for a broad range of applications from chemical spill clean-up, emergency response, to military and petrochemical applications.

  • Shin-length apron with neck and waist ties
  • Antistatic treatment (EN 1149-1) - on inside; see footnotes
  • EN 14126 (barrier to infective agents)

ADDITIONAL EQUIPMENT NEEDED

Fabric & Permeation/Penetration Data

Physical Properties

Data relating to mechanical performance of the fabrics used in DuPont chemical protective clothing, listed for the selected garment according to the test methods and relevant European standard, if applicable. Such properties, including abrasion and flex-cracking resistance, tensile strength and puncture resistance can help in the assessment of protective performance.

Property Test Method Typical Result EN
Abrasion Resistance 7 EN 530 Method 2 >2000 cycles 6 of 6 1
Basis Weight DIN EN ISO 536 120 g/m2 N/A
Bursting Strength (Mullenburst) ISO 2758 610 kPa N/A
Colour N/A Grey N/A
Exposure to high Temperature N/A Garments seams opens at ˜98°C N/A
Exposure to low Temperature N/A Flexibility retained down to -73°C N/A
Flex Cracking Resistance 7 EN ISO 7854 Method B >1000 cycles 1 of 6 1
Flex Cracking Resistance at -30 ℃ EN ISO 7854 Method B >1000 cycles N/A
Puncture Resistance EN 863 26 N 2 of 6 1
Resistance to Ignition 7 EN 13274-4 Method 3 No after flame, no drop formation, hole formation N/A
Resistance to Water Penetration DIN EN 20811 >30 kPa N/A
Surface Resistance at RH 25% 7 EN 1149-1 ≤ 2,5x109 Ohm N/A
Surface Resistance at RH 25%, outside 7 EN 1149-1 No antistatic treatment N/A
Tensile Strength (MD) DIN EN ISO 13934-1 240 N 3 of 6 1
Tensile Strength (XD) DIN EN ISO 13934-1 245 N 3 of 6 1
Thickness DIN EN ISO 534 210 µm N/A
Trapezoidal Tear Resistance (MD) EN ISO 9073-4 40 N 2 of 6 1
Trapezoidal Tear Resistance (XD) EN ISO 9073-4 35 N 2 of 6 1
  •  According to EN 14325
  •  According to EN 14126
  •  According to EN 1073-2
  •  According to EN 14116
  •   According to EN 11612
  •  Front Tyvek ® / Back
  •  Based on test according to ASTM D-572
  •  See Instructions for Use for further information, limitations and warnings
  •  Larger than
  •  Smaller than
  •  Not Applicable
  •  Standard Deviation

GARMENT PERFORMANCE

PERMEATION DATA

COMFORT

PENETRATION AND REPELLENCY

BIOLOGICAL BARRIER

Warnings
