Tyvek / Tychem® 6000 F

Model CHZ5

Tychem® 6000 F

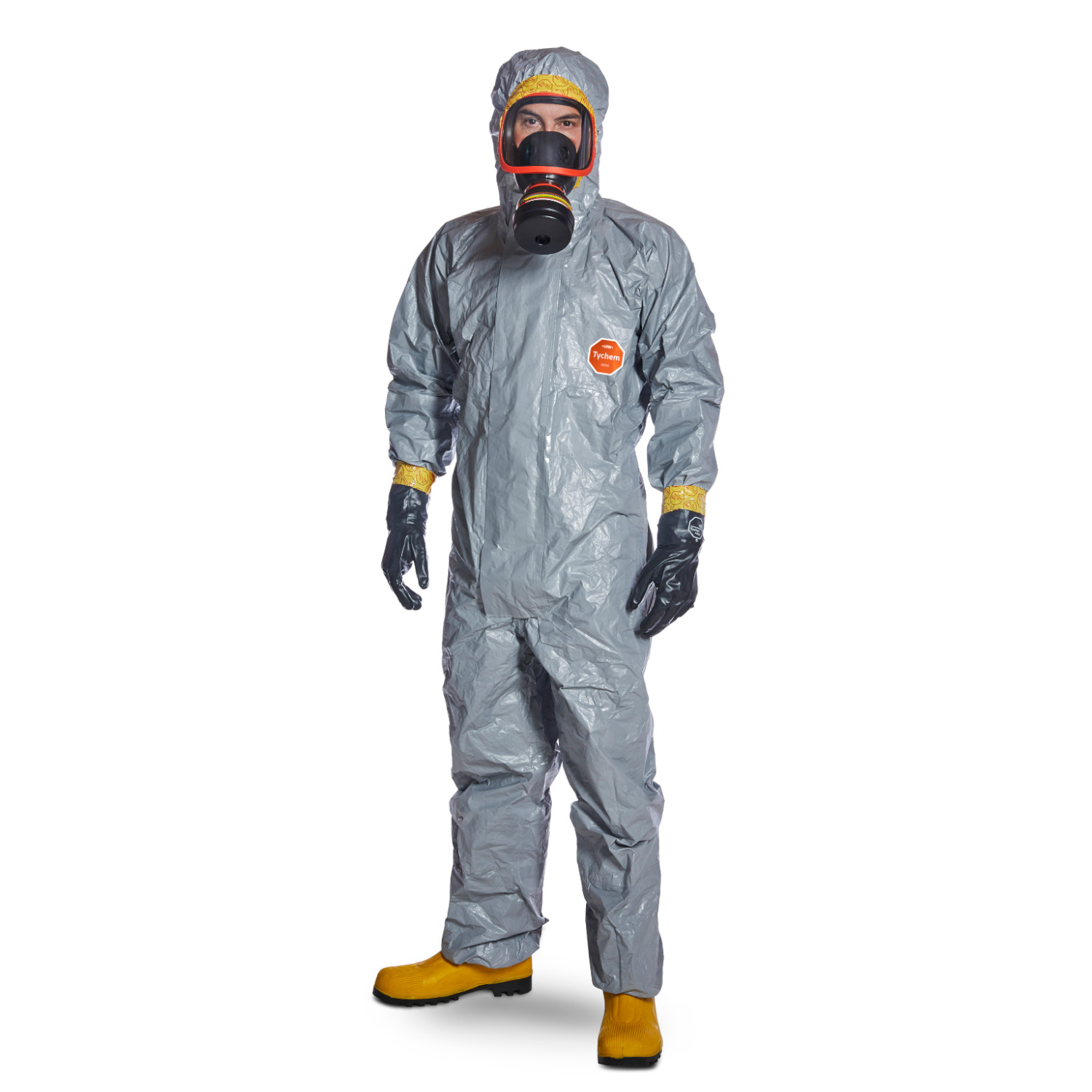

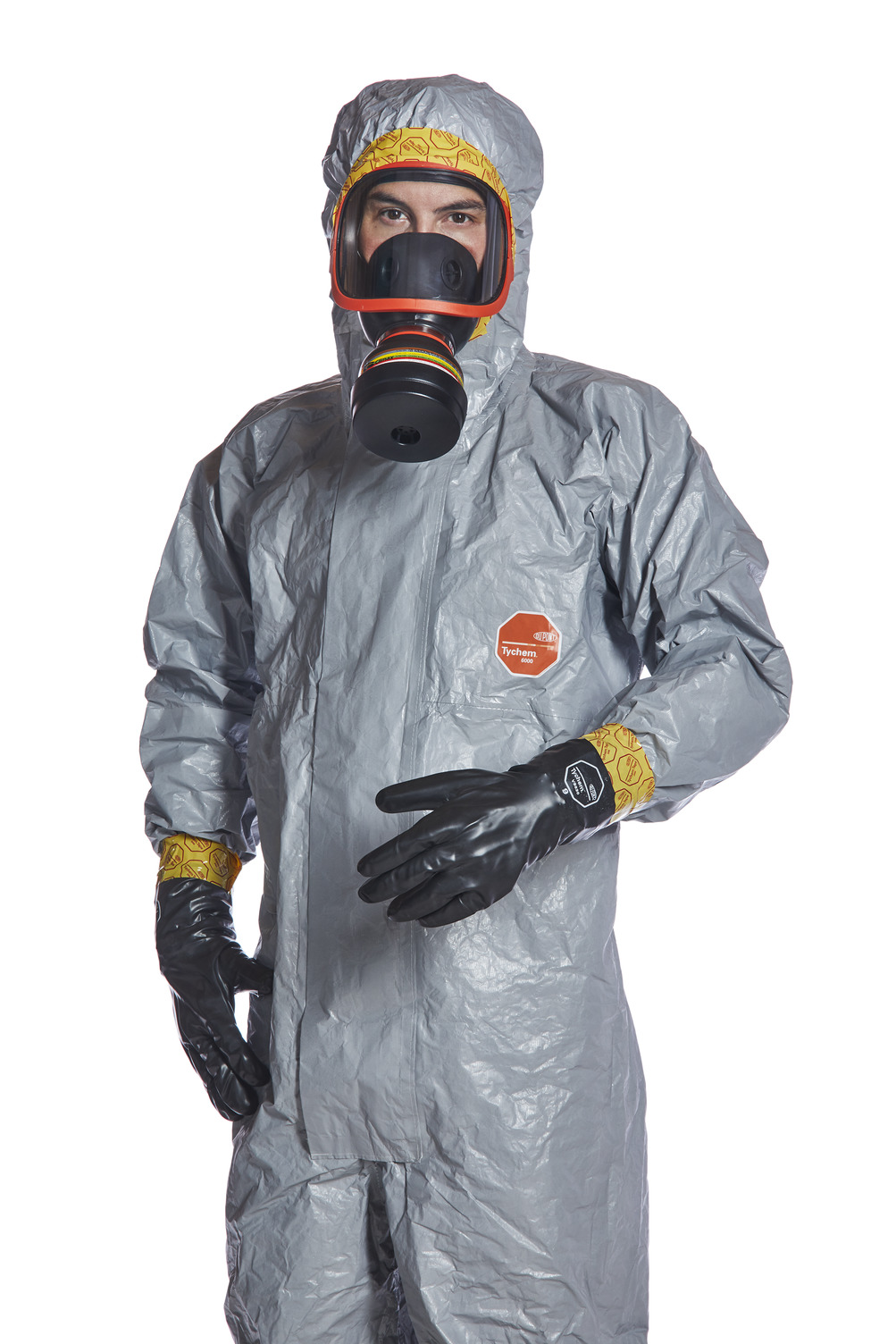

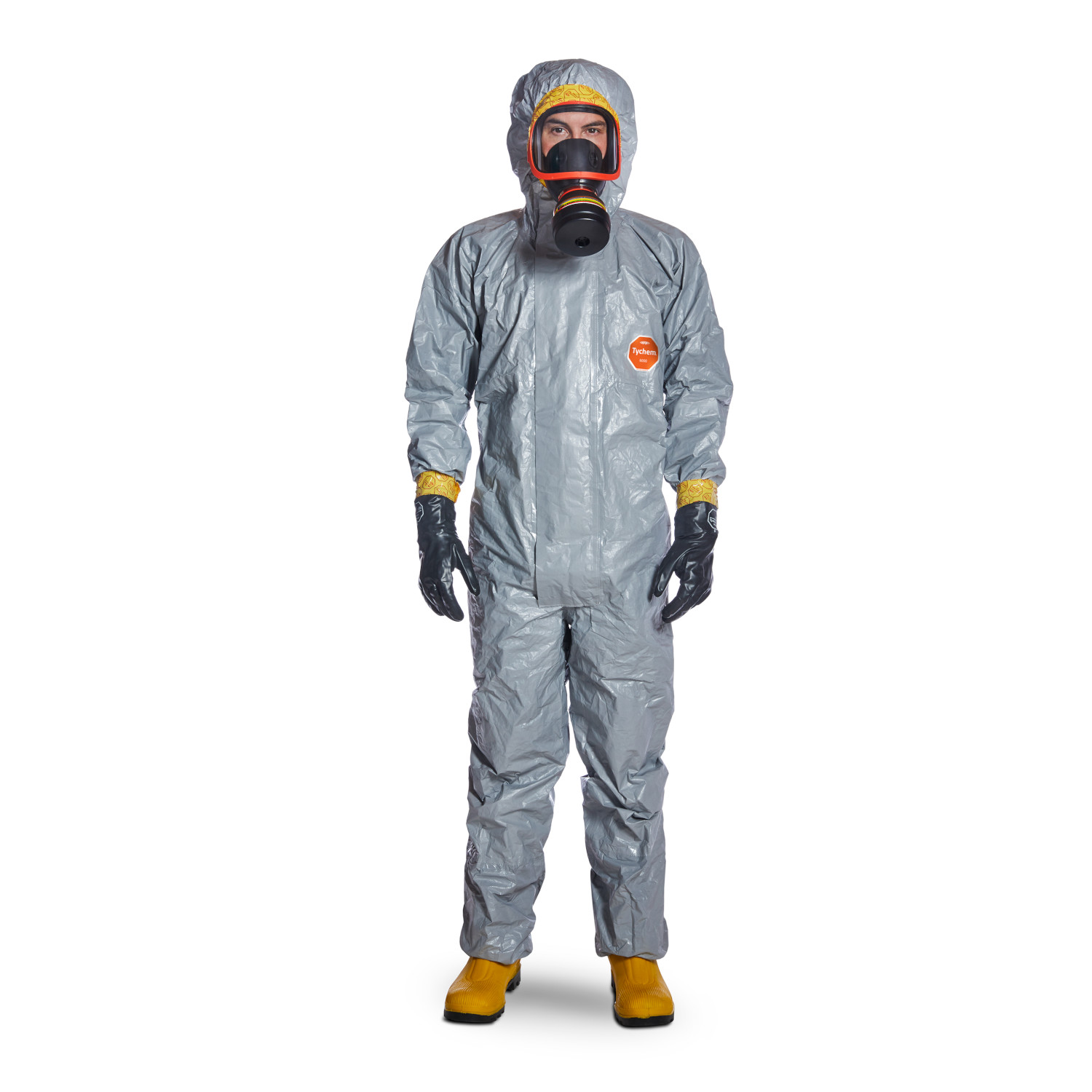

DuPont™ Tychem® 6000 F Plus. Hooded coverall. Stitched and over-taped seams. Double cuffs. Knitted inner cuffs. Thumb loops. Elastication at wrists, ankles, face and waist. Double zippers and double flaps. Outer flap with adhesive tape. Grey.




Hover over image to zoom

CATIII

T3

T4

T5

T6

EN 1073-2

EN 1149-5

EN 14126

Name Description
Full Part Number TFCHZ5TGY00
Fabric/Materials TYCHEM® F
Design Hooded coverall, double cuffs, double zippers and double flaps
Seam Stitched and over-taped
Color Grey
Quantity/Box 10 per box, individually packed

FEATURES & PRODUCT DETAILS

DuPont™ Tychem® 6000 F Plus. Hooded coverall available in grey, in sizes SM to 3X. Elasticated face, wrists, waist and ankles for an optimal fit. Double cuffs, knitted inner cuffs, thumb loops to prevent sleeves from riding up. Front entry with double zipper, double flap and adhesive tape at outer flap.
Tychem® 6000 F garments are made from a lightweight and durable Tychem® 6000 F fabric (<500g per garment) consisting of a proprietary barrier film laminated to a heavy duty Tyvek® substrate. They offer excellent chemical permeation resistance to an extensive range of chemicals, helping to protect personnel against numerous toxic industrial organic chemicals, highly concentrated inorganic chemicals (even under pressure), particulates, biohazards and certain chemical warfare agents.
Tychem® 6000 F garment are typically used for a broad range of applications from chemical spill clean-up, emergency response, to military and petrochemical applications.

  • Certified according to Regulation (EU) 2016/425
  • Chemical protective clothing, Category III, Type 3-B, 4-B, 5-B and 6-B
  • EN 14126 (barrier to infective agents), EN 1073-2 (protection against radioactive contamination)
  • Stitched and over-taped seams with barrier tape for protection and strength
  • Front closure with double zipper, double flap, outer flap with adhesive tape
  • Double cuffs, thumb loops, knitted inner cuffs
  • Antistatic treatment (EN 1149-5) - on inside

ADDITIONAL EQUIPMENT NEEDED

Fabric & Permeation/Penetration Data

Physical Properties

Data relating to mechanical performance of the fabrics used in DuPont chemical protective clothing, listed for the selected garment according to the test methods and relevant European standard, if applicable. Such properties, including abrasion and flex-cracking resistance, tensile strength and puncture resistance can help in the assessment of protective performance.

Property Test Method Typical Result EN
Abrasion Resistance 7 EN 530 Method 2 >2000 cycles 6 of 6 1
Basis Weight DIN EN ISO 536 120 g/m2 N/A
Bursting Strength (Mullenburst) ISO 2758 610 kPa N/A
Colour. N/A (598) Grey N/A
Exposure to high Temperature N/A (598) Garments seams opens at ˜98 °C N/A
Exposure to low Temperature N/A (598) Flexibility retained down to -73 °C N/A
Flex Cracking Resistance 7 EN ISO 7854 Method B >1000 cycles 1 of 6 1
Flex Cracking Resistance at -30 °C EN ISO 7854 Method B >1000 cycles N/A
Puncture Resistance EN 863 26 N 2 of 6 1
Resistance to Ignition 7 EN 13274-4 Method 3 No after flame, no drop formation, hole formation N/A
Resistance to water penetration DIN EN 20811 >30 kPa N/A
Surface Resistance at RH 25%, inside 7 EN 1149-1 < 2,5 • 109 Ohm N/A
Surface Resistance at RH 25%, outside 7 EN 1149-1 No antistatic treatment N/A
Tensile Strength (MD) DIN EN ISO 13934-1 240 N 3 of 6 1
Tensile Strength (XD) DIN EN ISO 13934-1 245 N 3 of 6 1
Thickness (PPSH-249) DIN EN ISO 534 210 µm N/A
Trapezoidal Tear Resistance (MD) EN ISO 9073-4 40 N 2 of 6 1
Trapezoidal Tear Resistance (XD) EN ISO 9073-4 35 N 2 of 6 1
  •  According to EN 14325
  •  According to EN 14126
  •  According to EN 1073-2
  •  According to EN 14116
  •   According to EN 11612
  •  Front Tyvek ® / Back
  •  Based on test according to ASTM D-572
  •  See Instructions for Use for further information, limitations and warnings
  •  Larger than
  •  Smaller than
  •  Not Applicable
  •  Standard Deviation

GARMENT PERFORMANCE

COMFORT

PENETRATION AND REPELLENCY

BIOLOGICAL BARRIER

WARNING

PERMEATION DATA
