Tyvek / Tychem® 2000 C Plus

model CHZ5

Tychem® 2000 C Plus

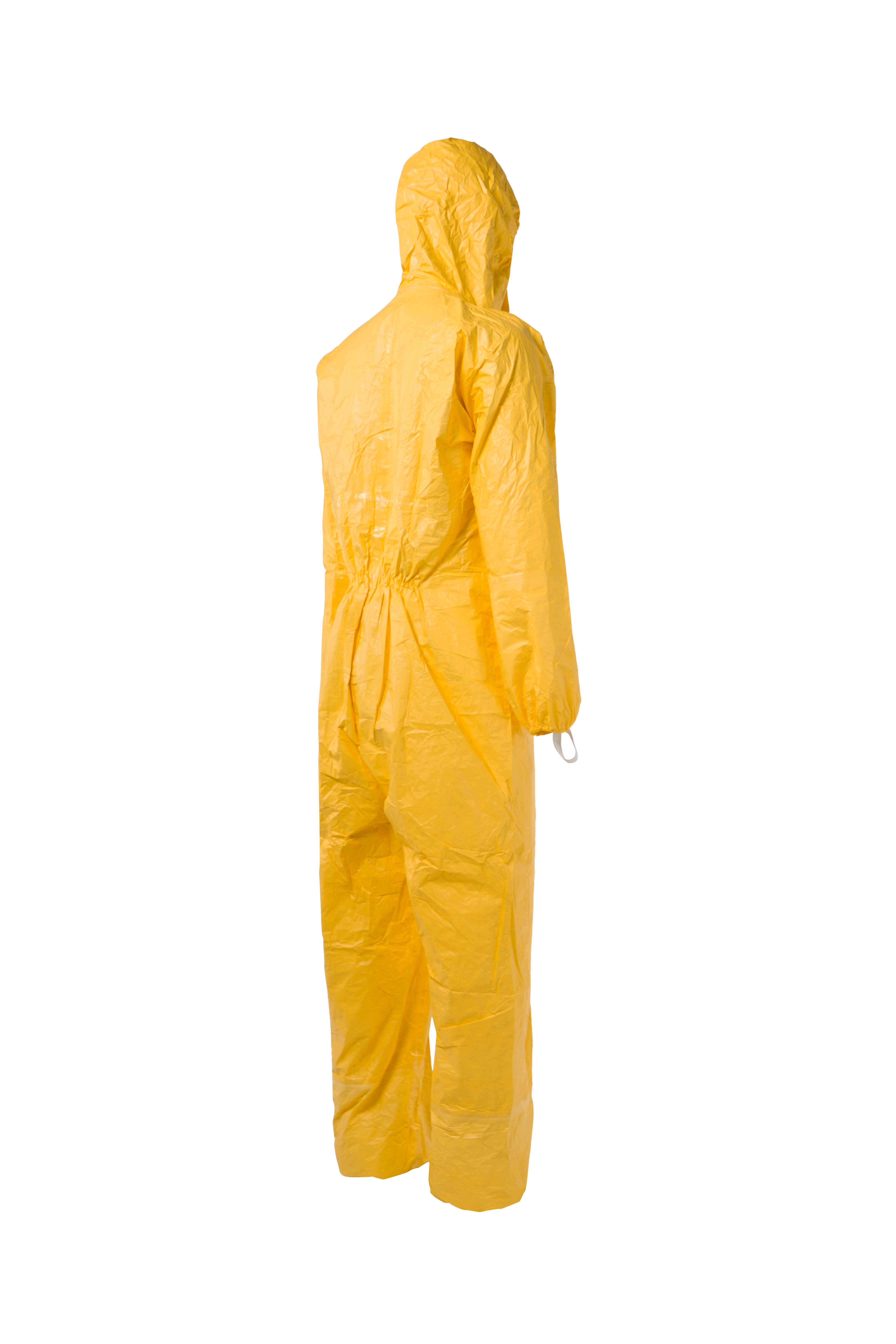

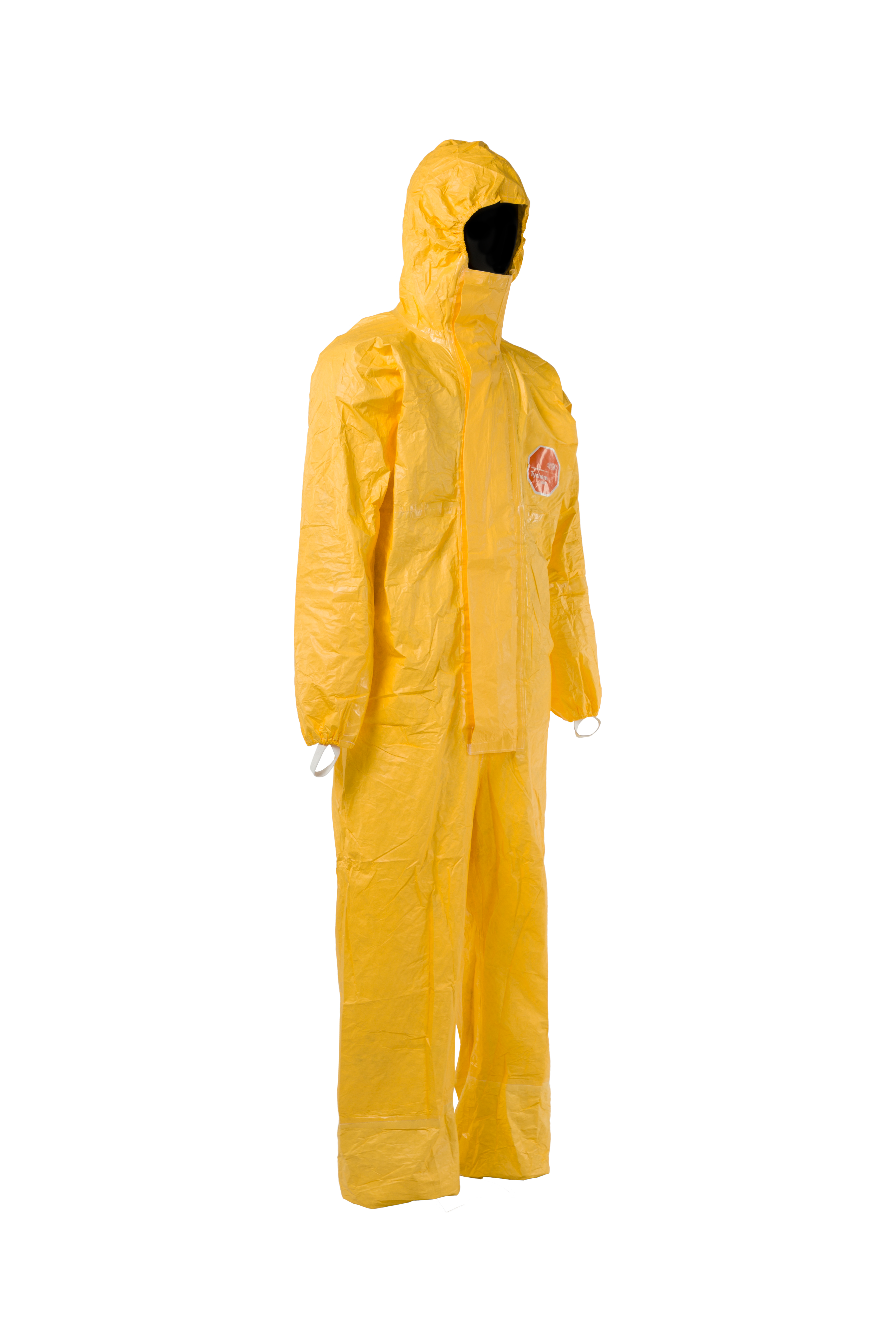

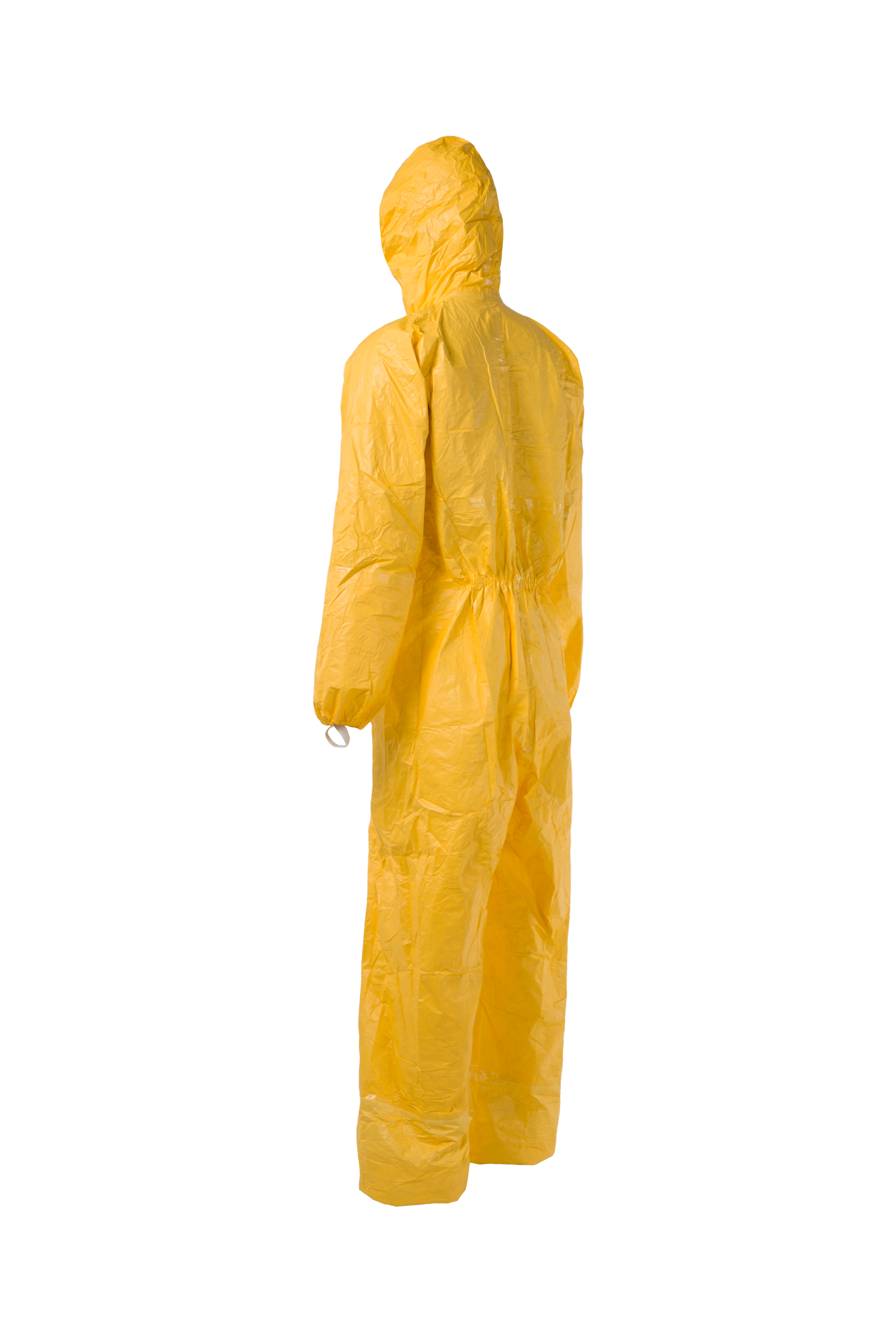

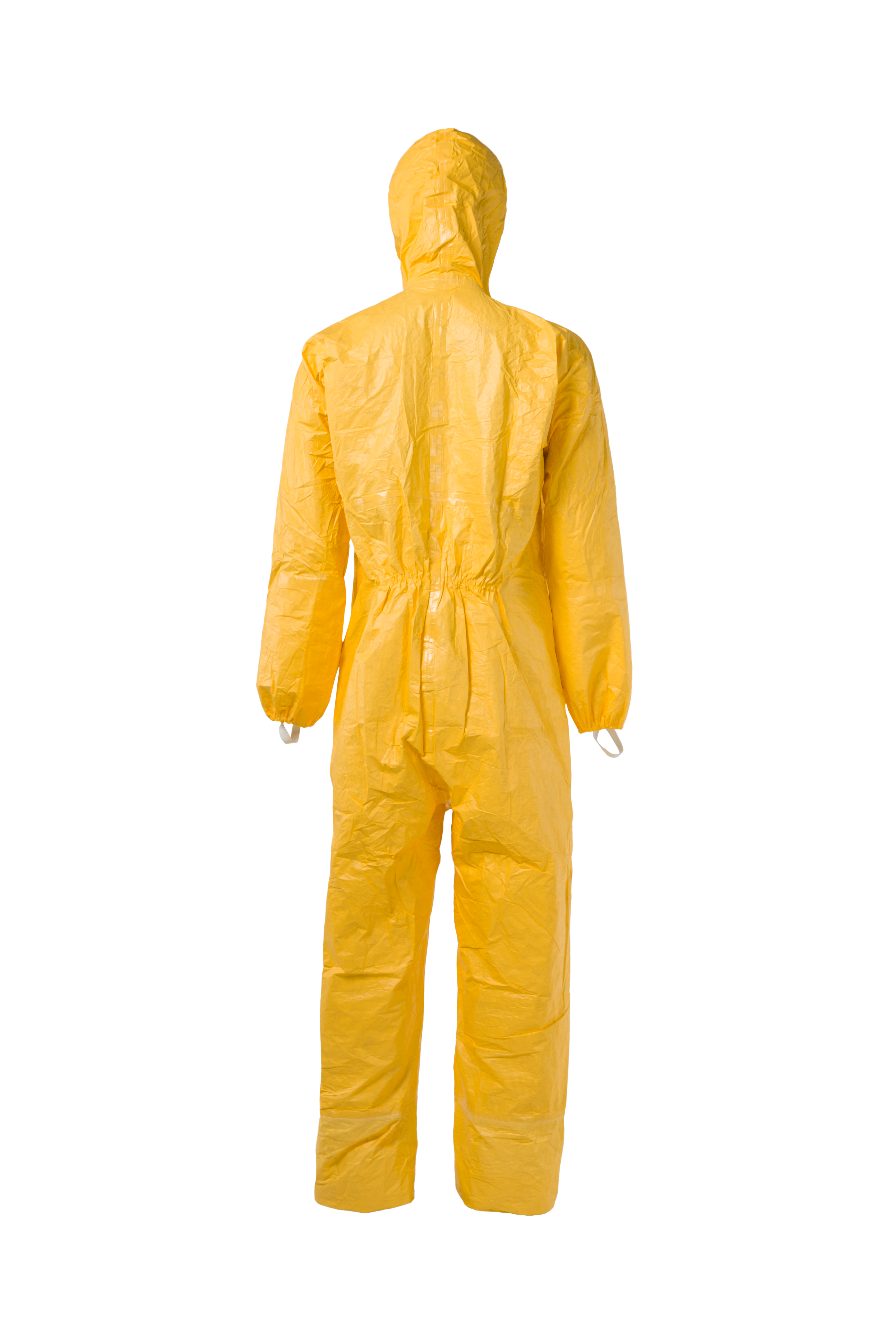

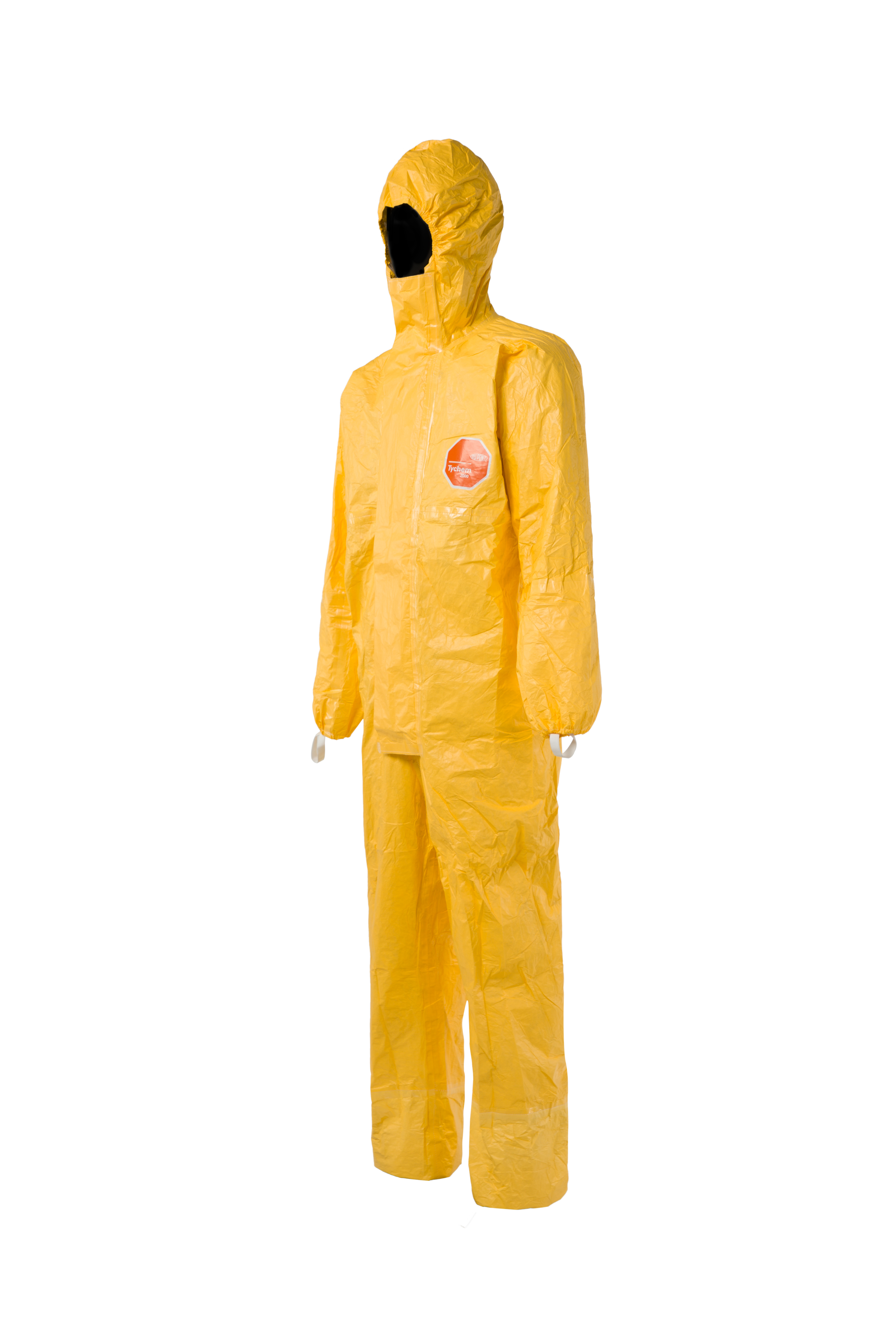

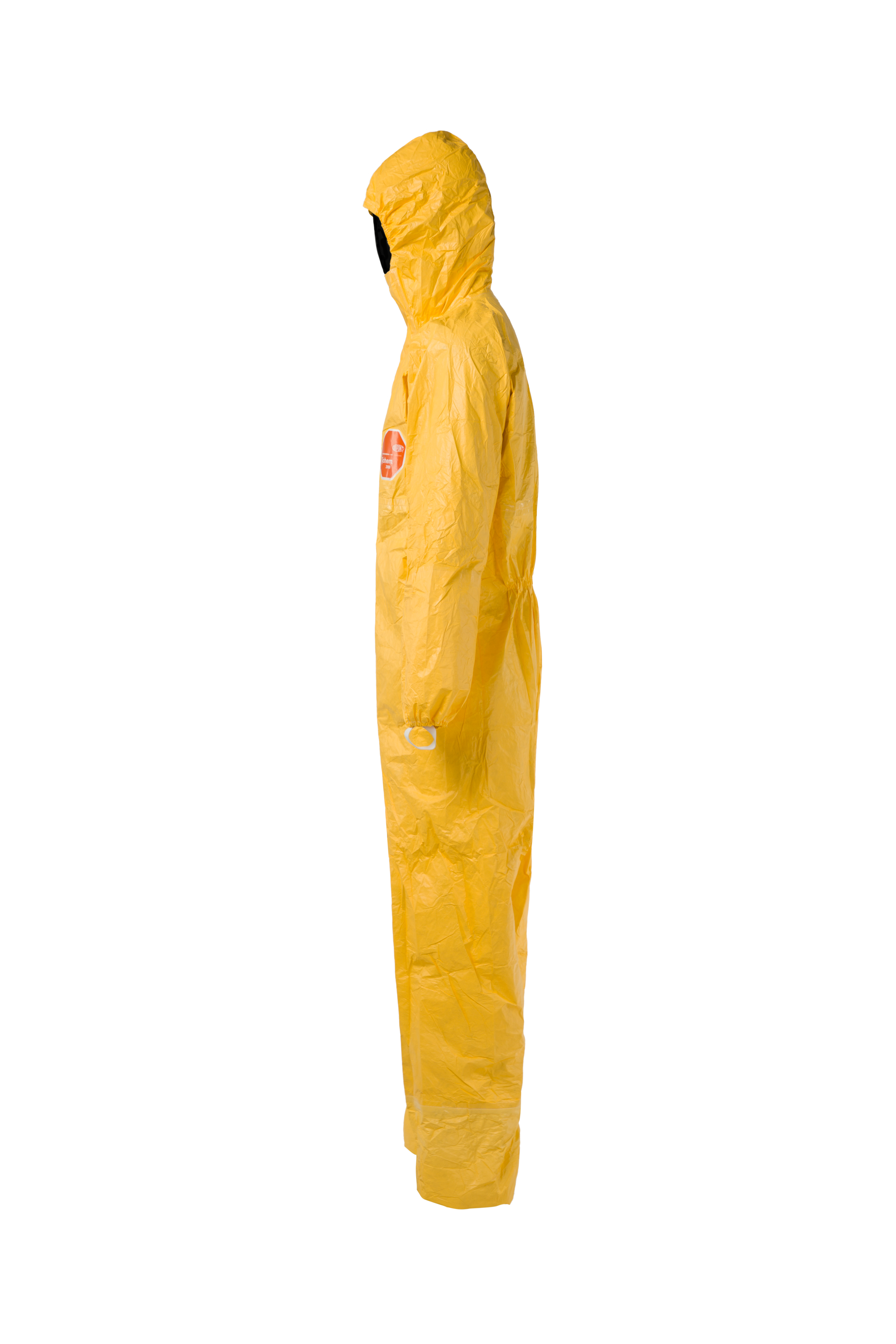

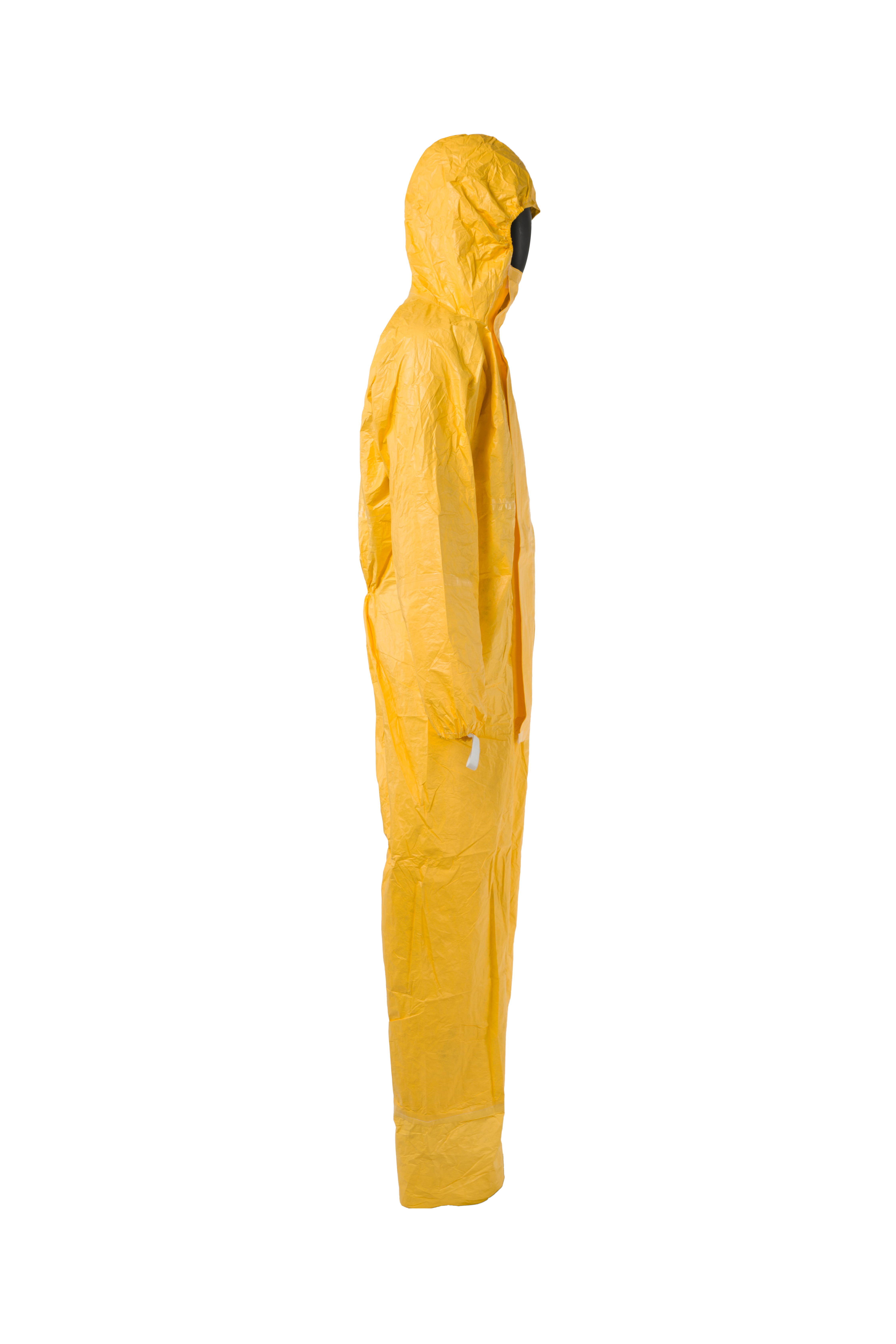

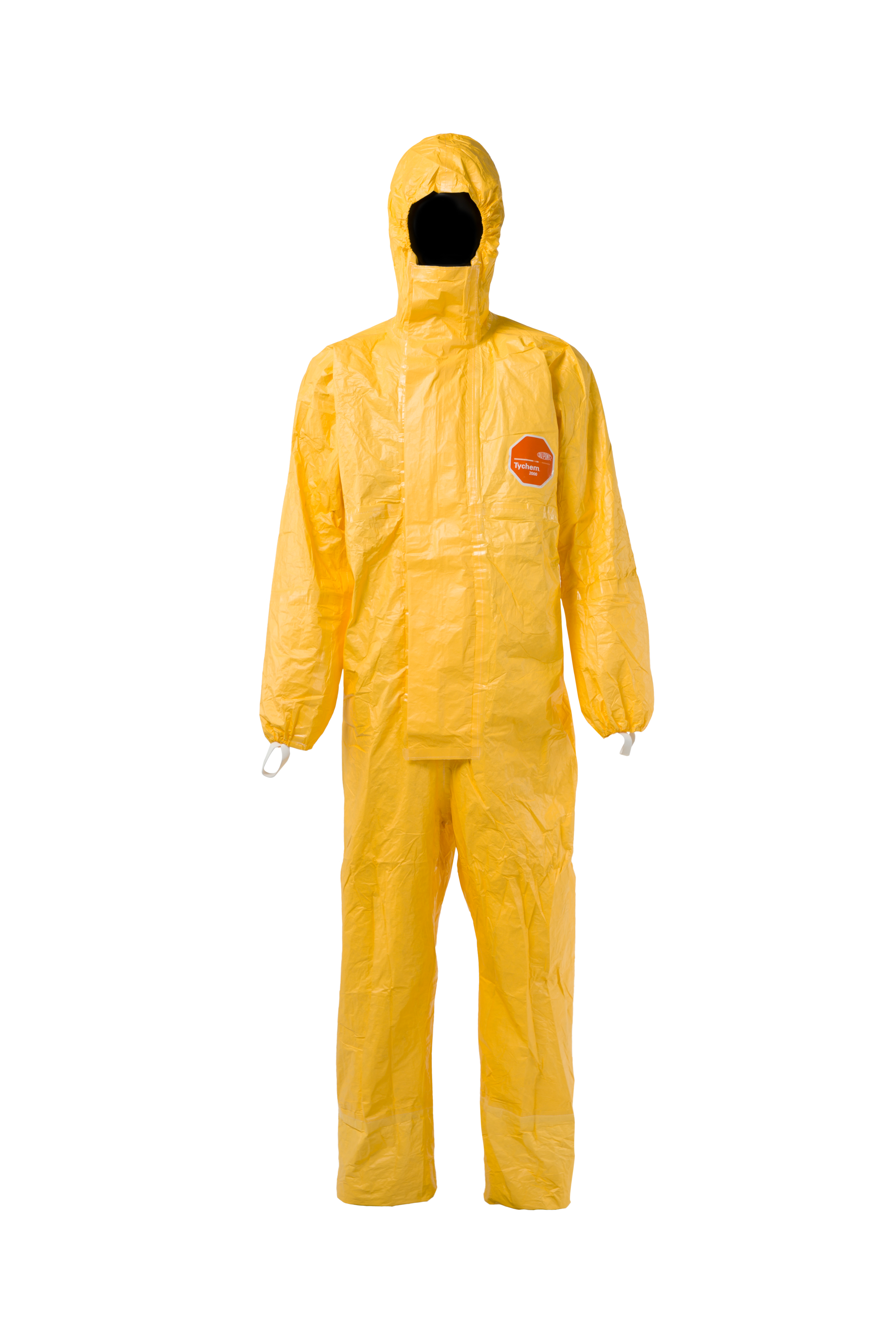

DuPont™ Tychem® 2000 C Plus. Hooded coverall. Stitched and over-taped seams. Double cuffs. Thumb loops. Elastication at wrists, ankles, face and waist. Double zippers and double flaps. Outer flap with adhesive tape. Yellow.




Hover over image to zoom

CATIII

T3

T4

T5

T6

EN 1073-2

EN 1149-1

EN 14126

Name Description
Full Part Number TCCHZ5TYL00
Fabric/Materials TYCHEM® C
Design Hooded coverall, double cuffs, double zippers and double flaps
Seam Stitched and over-taped
Color Yellow
Quantity/Box 20 per box, individually packed

FEATURES & PRODUCT DETAILS

DuPont™ Tychem® 2000 C Plus, model CHZ5. Hooded coverall. Available in bright yellow for high visibility and in sizes SM-3XL. Stitched and over-taped seams. Elasticated face, wrists, waist and ankles for an optimal fit. Double cuffs, thumb loops to prevent sleeves from riding up. Front entry with double zipper, double flap and adhesive tape at outer flap.
Made from a lightweight and durable fabric (<450g per garment), Tychem® 2000 garments utilise the strength of Tyvek® and a polymeric barrier coating to offer good permeation barrier protection against a wide range of inorganic chemicals and biological hazards (even under pressure).
Tychem® 2000 is used for splash or pressurised splash protection in a variety of industrial environments, including pulp and paper manufacturing, food processing, chemical processing and pharmaceutical manufacturing.

  • Chemical protective clothing, Category III, Type 3-B, 4-B, 5-B and 6-B
  • EN 14126 (barrier to infective agents), EN 1073-2 (protection against radioactive contamination)

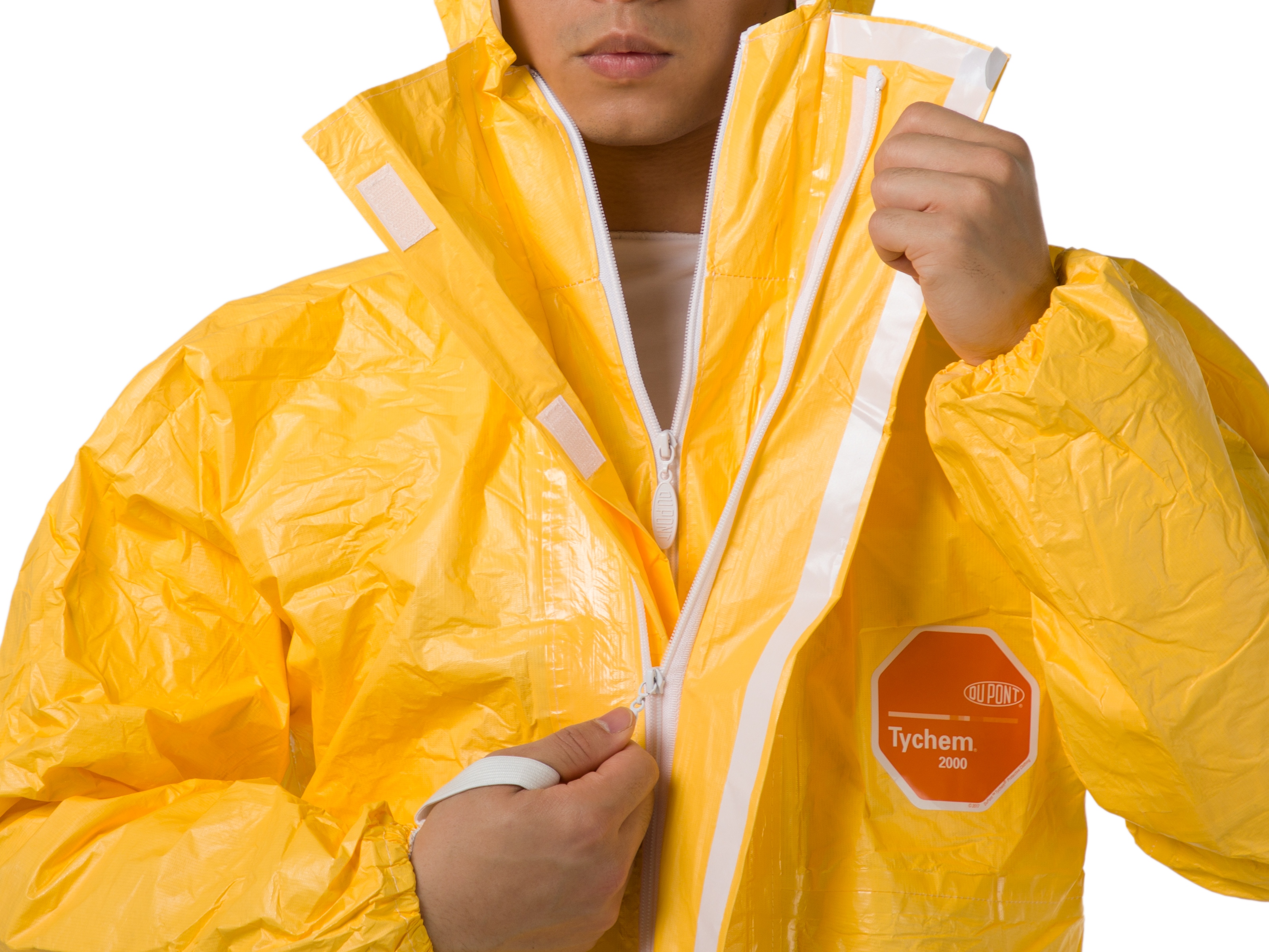

  • Front closure with double zipper, double flap, outer flap with adhesive tape
  • Certified according to Regulation (EU) 2016/425
  • Antistatic treatment (EN 1149-5) - on inside
  • Stitched and over-taped seams with barrier tape for protection and strength

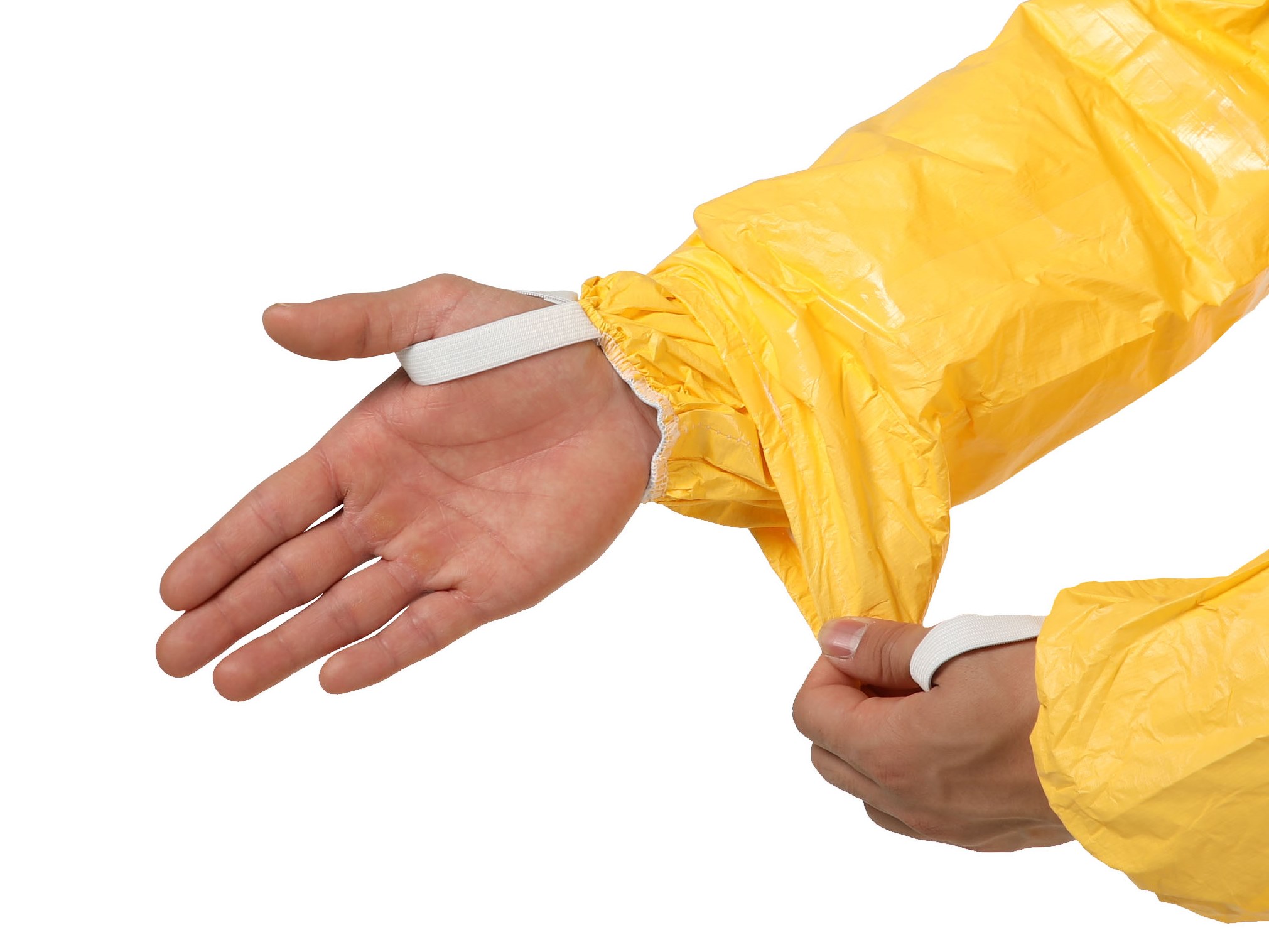

  • Double cuffs, thumb loops
  • EN 14126 (barrier to infective agents), EN 1073-2 (protection against radioactive contamination)

ADDITIONAL EQUIPMENT NEEDED

Fabric & Permeation/Penetration Data

Physical Properties

Data relating to mechanical performance of the fabrics used in DuPont chemical protective clothing, listed for the selected garment according to the test methods and relevant European standard, if applicable. Such properties, including abrasion and flex-cracking resistance, tensile strength and puncture resistance can help in the assessment of protective performance.

Property Test Method Typical Result EN
Abrasion Resistance 7 EN 530 Method 2 >1500 cycles 5 of 6 1
Basis Weight DIN EN ISO 536 83g/m2 N/A
Bursting Strength (Mullenburst) ISO 2758 475 kPa N/A
Colour. N/A (598) Yellow N/A
Exposure to high Temperature N/A (598) Garments seams opens at ˜98°C N/A
Exposure to low Temperature N/A (598) Flexibility retained down to -73°C N/A
Flex Cracking Resistance 7 EN ISO 7854 Method B >5000 cycles 3 of 6 1
Flex Cracking Resistance at -30 °C EN ISO 7854 Method B >500 cycles N/A
Puncture Resistance EN 863 18 N 2 of 6 1
Resistance to Ignition 7 EN 13274-4 Method 3 No after flame, no drop formation, hole formation N/A
Resistance to water penetration DIN EN 20811 >30 kPa N/A
Surface Resistance at RH 25% 7 EN 1149-1 ≤ 2,5x109 Ohm N/A
Surface Resistance at RH 25%, outside 7 EN 1149-1 No antistatic treatment N/A
Tensile Strength (MD) DIN EN ISO 13934-1 160 N 3 of 6 1
Tensile Strength (XD) DIN EN ISO 13934-1 150 N 3 of 6 1
Thickness (PPSH-249) DIN EN ISO 534 180 µm N/A
Trapezoidal Tear Resistance (MD) EN ISO 9073-4 35 N 1 of 6 1
Trapezoidal Tear Resistance (XD) EN ISO 9073-4 30 N 1 of 6 1
  •  According to EN 14325
  •  According to EN 14126
  •  According to EN 1073-2
  •  According to EN 14116
  •   According to EN 11612
  •  Front Tyvek ® / Back
  •  Based on test according to ASTM D-572
  •  See Instructions for Use for further information, limitations and warnings
  •  Larger than
  •  Smaller than
  •  Not Applicable
  •  Standard Deviation

GARMENT PERFORMANCE

COMFORT

PENETRATION AND REPELLENCY

BIOLOGICAL BARRIER

WARNING

PERMEATION DATA
