Tyvek / Tychem® 2000

Model TC285S YL

Tychem® 2000

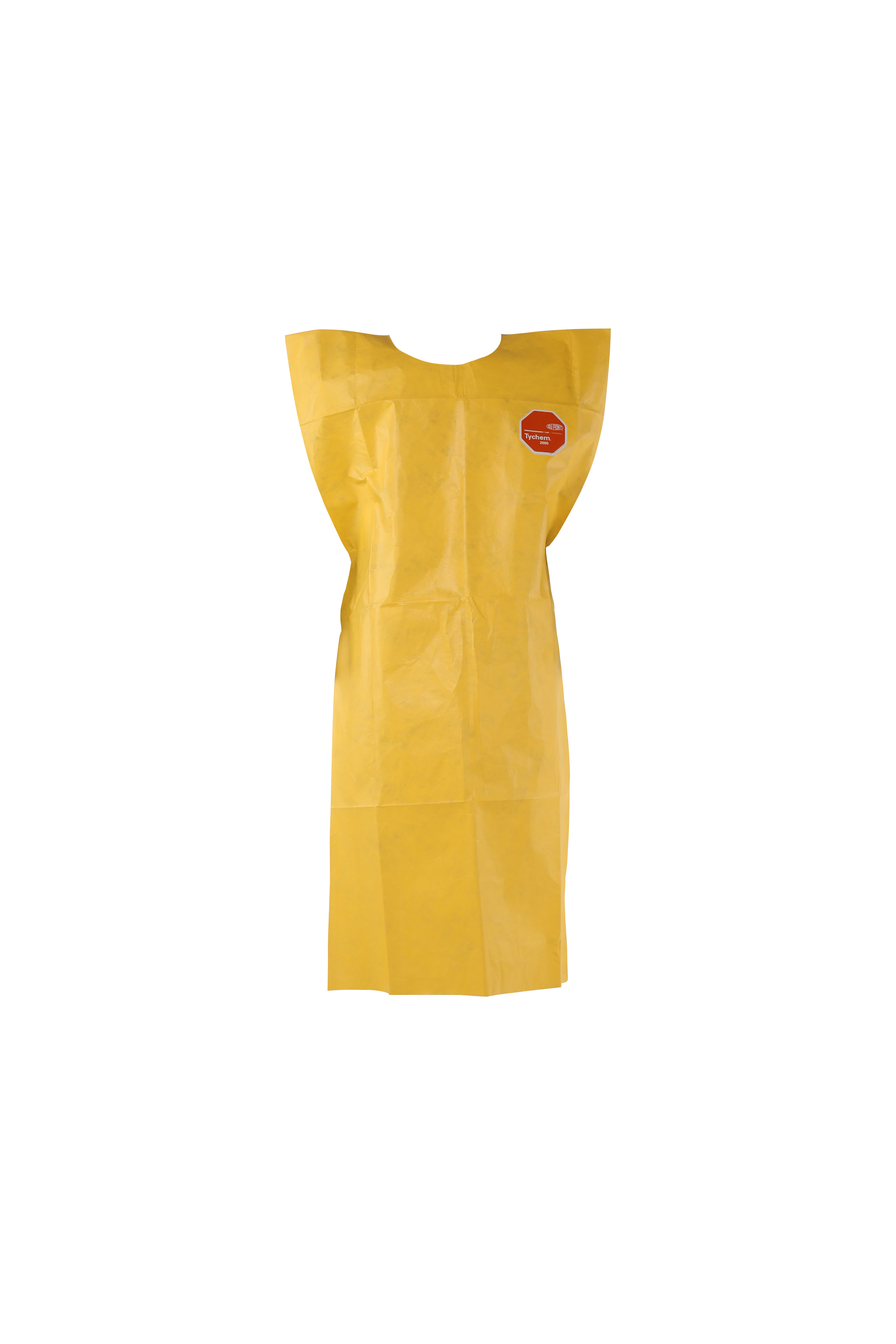

DuPont™ Tychem® 2000, model TC285S YL. Crop apron. Shin-length. Waist ties. Yellow.




Hover over image to zoom

CATIII

EN 14126

Name Description
Full Part Number TYCPA50BYLA0
Fabric/Materials Tychem® C
Design Crop apron
Seam No seams
Color Yellow
Quantity/Box 25 per box, individually packed

FEATURES & PRODUCT DETAILS

DuPont™ Tychem® 2000, model TC285S YL. For use in agricultural industry. Wider range of protection at front (length 122cm at front and 84cm at back). With waist ties on each side. Available in yellow and in one size.
Specially designed for use with Tychem® apparel, Tychem® accessories can help offer enhanced protection for body parts that are more exposed to hazardous substances.
Made from a lightweight  and durable fabric (<450g per garment), Tychem® 2000 garments and accessories utilise the strength of Tyvek® and a polymeric barrier coating to offer good permeation barrier protection against a wide range of inorganic chemicals and biological hazards (even under pressure).
Tychem® 2000 is used for splash or pressurised splash protection in a variety of industrial environments, including pulp and paper manufacturing, food processing, chemical processing and pharmaceutical manufacturing.

  • EN 14126 (barrier to infective agents).
  • Open ankles
  • Antistatic treatment (EN 1149-1) - on inside; see footnotes

ADDITIONAL EQUIPMENT NEEDED

Fabric & Permeation/Penetration Data

Physical Properties

Data relating to mechanical performance of the fabrics used in DuPont chemical protective clothing, listed for the selected garment according to the test methods and relevant European standard, if applicable. Such properties, including abrasion and flex-cracking resistance, tensile strength and puncture resistance can help in the assessment of protective performance.

Property Test Method Typical Result EN
Abrasion Resistance 7 EN 530 Method 2 >1500 cycles 5 of 6 1
Basis Weight DIN EN ISO 536 83g/m2 N/A
Bursting Strength (Mullenburst) ISO 2758 475 kPa N/A
Colour. N/A (598) Yellow N/A
Exposure to high Temperature N/A (598) Garments seams opens at ˜98°C N/A
Exposure to low Temperature N/A (598) Flexibility retained down to -73°C N/A
Flex Cracking Resistance 7 EN ISO 7854 Method B >5000 cycles 3 of 6 1
Flex Cracking Resistance at -30 °C EN ISO 7854 Method B >500 cycles N/A
Puncture Resistance EN 863 18 N 2 of 6 1
Resistance to Ignition 7 EN 13274-4 Method 3 No after flame, no drop formation, hole formation N/A
Resistance to water penetration DIN EN 20811 >30 kPa N/A
Surface Resistance at RH 25% 7 EN 1149-1 ≤ 2,5x109 Ohm N/A
Surface Resistance at RH 25%, outside 7 EN 1149-1 No antistatic treatment N/A
Tensile Strength (MD) DIN EN ISO 13934-1 160 N 3 of 6 1
Tensile Strength (XD) DIN EN ISO 13934-1 150 N 3 of 6 1
Thickness (PPSH-249) DIN EN ISO 534 180 µm N/A
Trapezoidal Tear Resistance (MD) EN ISO 9073-4 35 N 1 of 6 1
Trapezoidal Tear Resistance (XD) EN ISO 9073-4 30 N 1 of 6 1
  •  According to EN 14325
  •  According to EN 14126
  •  According to EN 1073-2
  •  According to EN 14116
  •   According to EN 11612
  •  Front Tyvek ® / Back
  •  Based on test according to ASTM D-572
  •  See Instructions for Use for further information, limitations and warnings
  •  Larger than
  •  Smaller than
  •  Not Applicable
  •  Standard Deviation

GARMENT PERFORMANCE

COMFORT

PENETRATION AND REPELLENCY

BIOLOGICAL BARRIER

WARNING

PERMEATION DATA
