/ DuPont™ Tyvek® 400 D
TD127S WB option CM
DuPont™ Tyvek® 400 D
DuPont™ Tyvek® 400 D. Coverall. Comfort Fit Design. Respirator Fit Hood. Elastic Wrists and Ankles. Elastic Waist. Serged Seams. White DuPont™ Tyvek® 400 Front. Blue DuPont™ ProShield® 10 Back.
DUPONT™ SAFESPEC™ Terms of Use
Product Selector Agreement
The following information must be read and accepted by the user before proceeding.
The DuPont™ SafeSPEC™ Product Selector Tool (“Tool”) is intended to assist in choosing protective clothing styles for particular applications and does not replace the judgment of a qualified safety professional or industrial hygienist. Additional personal protective equipment (“PPE”), such as but not limited to: respiratory, eye, head, foot, and hand protection, may be required. Supplying the proper hazard/chemical and exposure information for your hazard scenario is critical in order to obtain suggestions of possible garment options for your consideration. Inaccurate information could result in improper suggestions. Since there are other factors involved which could affect the final PPE decision and may not be considered in this Tool, the final decision on protective clothing selection is the responsibility of the buyer, safety professional, industrial hygienist and end-user. DuPont de Nemours, Inc. or its affiliates DISCLAIM ANY RESPONSIBILITY OR LIABILITY FOR ANY INFORMATION OR SUGGESTIONS PROVIDED BY THE TOOL OR THE USE THEREOF.
WARNING / CAUTION
There are uses, environments and chemicals for which any garment will be unsuitable. It is the responsibility of the user to review available data and verify that the garment selected is appropriate for the intended use and meets all specified government and industry standards.
Search by :
1 Choose Hazards
1 Enter
Chemicals
2 View Permeation Data
2 View
Data
3 View Matching Products
3 View
Products
Step 1 of 3
You may enter from one to five chemicals or other hazards that may be present in your working environment. Our tool will find the best product match for the combined hazards. Enter a single chemical or hazard if you wish to find the best possible product match for that one hazard.
Chemical or Other Hazard Name
or
CAS Number
| Chemical Details | CAS | Actions |
|---|
Hazard Concentration information
Please read following
- You have selected a chemical that has been tested at multiple concentrations. All concentrations will be displayed on the next page so that you can review breakthrough times for each concentration.
- Please review FAQs if your hazard concentration is lower or higher than the tested concentrations
Need Help?
- If you see your CAS number in the drop down list, make sure you are selecting the hazard from the drop down list before clicking "Add to List".
- If you do not see your CAS number listed, check the number and try again or you may want to try Guide.
1 Choose Hazards
1 Enter
Chemicals
2 View Permeation Data
2 View
Data
3 View Matching Products
3 View
Products
Step 2 of 3
CHEMICAL COMPARISON
The table below shows the Normalized Breakthrough times of fabrics for the hazards selected. (Testing Details) You can find specific garments that protect against these hazards by clicking the 'Next' button below.
Done
Done
Done
TYVEK
|
TYCHEM
|
GLOVES
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
1 Choose Hazards
1 Enter
Chemicals
2 View Permeation Data
2 View
Data
3 View Matching Products
3 View
Products
Step 3 of 3
Flammable Environments
WARNING
If any of the following apply:
- A fire or electric arc is actively present in the work environment
- The work environment contains an uncontrollable flammable material between the Lower Explosive Limit (LEL) or Lower Flammable Limit (LFL) and the Upper Explosive Limit (UEL) or Upper Flammable Limit (UFL)
- The work environment has been subject to a breach or loss in containment of flammable material (flammable liquids, flammable vapors or combustible dusts)
- There is an uncontrolled fuel source available in the work environment (that may or may not have encountered an ignition source yet)
Please consider fire fighter PPE (personal protective equipment). Read more.
If none of these conditions apply but FR clothing is required in your working environment, close this box and proceed to the next question. Only fabrics that provide both chemical resistance to the hazards you have listed and protection during escape from a flash fire will be considered for your hazard scenario.
1 Choose Hazards
1 Enter
Chemicals
2 View Permeation Data
2 View
Data
3 View Matching Products
3 View
Products
step3of3
Is Suitable For Hazard Scenario
Is Not Suitable For Hazard Scenario
| Hazard | Fabric/Materials | Seam | Design |
|---|
Compare All
YOU MAY WANT TO CONSIDER SIMILAR PRODUCTS RELATED TO TD127S WB option CM
Matching Products (0)
Your hazard scenario did not produce any results. May we suggest:
- If you are searching multiple hazards at one time, try breaking your search into separate hazards by either creating a new scenario or unchecking Hazards in the pane to the left. SafeSPEC™ is trying to find one garment that can be used for all of your hazards. You may need to consider more than one garment.
- If you have a liquid or vapor chemical hazard, try searching the Chemical Resistance Database. This database will show you permeation data for all of the fabrics tested against a given hazard. Once you are able to determine a suitable fabric, you will have the flexibility of selecting a suitable garment design and seam construction yourself.
- If you answered "yes" to the question that you are working in an environment that requires flame resistant clothing, please note that although DuPont has several garment options for scenarios involving possible industrial fire or electric arc exposures as well as chemical exposure hazards, these garments may not have been tested against the specific chemical hazard(s) that you have selected or may have breakthrough times lower than your intended work duration. If possible, try to mitigate the need for flame resistant clothing by implementing engineering controls, work practices and administrative controls before resorting to protective clothing. Additionally, try breaking your search into separate hazards as suggested above in order to find garment options to meet your needs.
- If you selected "localized to the feet" for the direction of exposure question, you may want to consider chemical resistant boots instead of purchasing a full garment. DuPont does not manufacture or sell chemical resistant boots. However, we do offer some coveralls and encapsulated suits with attached socks. These socks can be worn as an extra layer of protection inside of chemical resistant boots.
If you still need help, please Contact Us.
Is Suitable For Hazard Scenario
Is Not Suitable For Hazard Scenario
| Hazard | Fabric/Materials | Seam | Design |
|---|
Hover over image to zoom

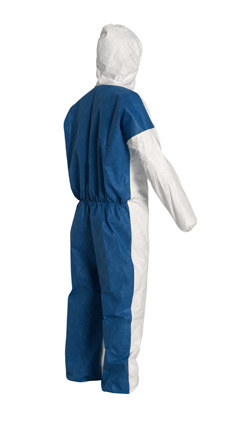

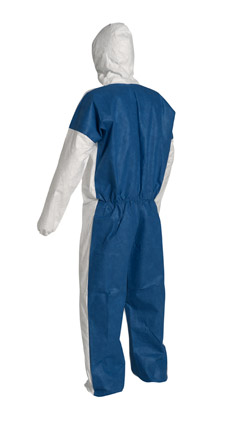

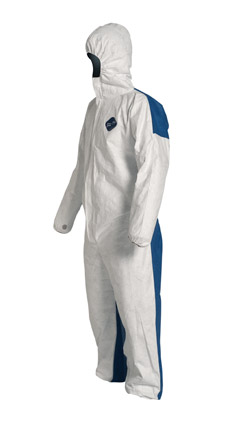

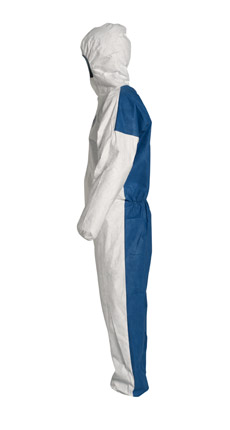

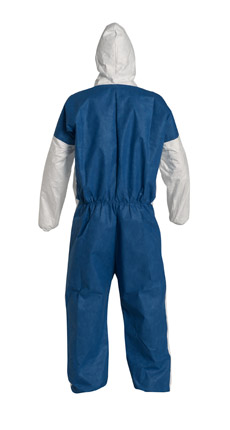

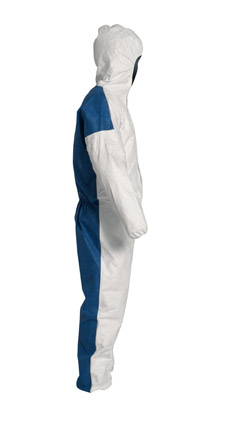

| PRODUCT DETAILS | |
|---|---|
| Full Part Number | TD127SWBxx0025yy (xx=size;yy=option code)  |
| Fabric/Materials | TYVEK® 400 D |
| Design | Coverall w/ Resp. Fit Hood, Elastic Wrists and Ankles |
| Seam | Serged |
| Color | White Front, Blue Back |
| Sizes | MD,SM/MD,LG,XL,2X,3X,4X |
| Quantity/Box | 25 per case |
| Option Codes | CM |
Related Products
DuPont™ ProShield® 10
DuPont™ ProShield® 10 Coverall. Standard Fit Hood. Elastic Wrists. Attached Skid-Resistant Boots. Elastic Waist. Serged Seams. White.
DuPont™ ProShield® 6 SFR
DuPont™ ProShield® 6 SFR Coverall. Standard Fit Hood. Elastic Wrists and Ankles. Serged Seams. Blue.
DuPont™ ProShield® 6 SFR
DuPont™ ProShield® 6 SFR Coverall. Collar. Open Wrists and Ankles. Serged Seams. Blue.
DuPont™ ProShield® 6 SFR
DuPont™ ProShield® 6 SFR Coverall. Standard Fit Hood. Elastic Wrists. Attached Socks. Serged Seams. Blue.
DuPont™ Tychem® 2000
DuPont™ Tychem® 2000 Sleeved Apron. Elastic Wrists. 44"" Long. Neck Loop w/ Snaps & Waist Ties. Bound Seams. Yellow.
DuPont™ Tychem® 2000
DuPont™ Tychem® 2000 Bib Apron. 28"" x 36"". Neck Loop & Waist Ties. Bound Seams. Yellow.
DuPont™ Tychem® 2000
DuPont™ Tychem® 2000 Sleeved Apron. Elastic Wrists. 52"" Long. Bound yoke neck w/out Snaps & Waist Ties. Bound Seams. Yellow.
DuPont™ Tychem® 2000
DuPont™ Tychem® 2000 Coverall. Standard Fit Hood. Elastic Wrists and Ankles. Serged Seams. Yellow.
DuPont™ Tychem® 2000
DuPont™ Tychem® 2000 Sleeve. 18"" Long. Elastic at Both Ends. Bound Seams. Yellow.
DuPont™ Tychem® 6000
DuPont™ Tychem® gown,model PL50. Shin-length. Wrap-over rear closure with tie. Stitched and over-taped. Gray.
DuPont™ Tychem® 6000 SFR
DuPont™ Tychem® 6000 SFR Coverall. Respirator Fit Hood. Front Zipper Closure. Chin Flap. Double Storm Flap.Elastic Face Opening. Elastic Wrists. Elastic Ankles. Elastic Waist. Taped Seams. Pin Lock Zipper. Light Tan.
DuPont™ Tyvek® IsoClean®
DuPont™ Tyvek® IsoClean® Boot Cover. Serged Seams. PVC Sole. Covered Elastic Opening. Ties at Ankles. 18" High. White.
Certificates of Sterility Available Here
ProShield® 10
DuPont™ ProShield® 10 Coverall. Standard Fit Hood. Elastic Wrists and Ankles. Elastic Waist. Serged Seams. White.
ProShield® 10
DuPont™ ProShield® 10 Coverall. Standard Fit Hood. Elastic Wrists and Ankles. Elastic Waist. Serged Seams. Blue.
Tychem® 10000
DuPont™ Tychem® 10000 Encapsulated Level A Suit. Certified to NFPA 1990 (NFPA 1994, Class 2) 2022 edition. Expanded Back, Front Entry. Extra-Wide, Anti-Fog, Three-Layer Faceshield: 40 mil PVC / 5 mil Teflon™ / 20 mil PVC. Attached Dual Layer Gloves, Internal: Multi-layer laminate / External: Neoprene. Attached Socks with Outer Boot Flaps. Double Storm Flap with Hook & Loop Closure. Two Exhaust Valves. Double Taped Seams. Lime Yellow.
Tychem® 10000
DuPont™ Tychem® 10000 Encapsulated Level A Suit. Expanded Back, Front Entry. Extra-Wide Visor, 3 Layers: 40 mil PVC / Teflon® 5 mil / 20 mil PVC. Attached Dual Layer Gloves, Internal: Multi-layer laminate / External: Butyl. Attached Socks with Outer Boot Flaps. Double Storm Flap with Hook & Loop Closure. Two Exhaust Valves. Double Taped Seams. Lime Yellow.
Tychem® 10000
DuPont™ Tychem® 10000 Encapsulated Level A Suit. Certified to NFPA 1990 (NFPA 1992), 2022 edition. Expanded Back, Rear Entry. Extra-Wide, Anti-Fog, Three-Layer Faceshield: 40 mil PVC / 5 mil Teflon™ / 20 mil PVC. Attached Dual Layer Gloves, Internal: Multi-layer laminate / External: Neoprene. Attached Socks with Outer Boot Flaps. Double Storm Flap with Hook & Loop Closure. Two Exhaust Valves. Double Taped Seams. Lime Yellow..
Tychem® 10000
DuPont™ Tychem® 10000 Coverall. Respirator Fit Hood. Elastic Wrists. Attached Socks with Outer Boot Flaps. Double Storm Flap with Adhesive Closure. Taped Seams. Semi-auto locking slider zipper pull.Lime Yellow.
Tychem® 10000
DuPont™ Tychem® 10000 Encapsulated Level A Suit. Expanded Back, Rear Entry. Extra-Wide Visor, 3 Layers: 40 mil PVC / Teflon® 5 mil / 20 mil PVC. Attached Dual Layer Gloves Internal: Multi-layer laminate / External: Butyl. Attached Socks with Outer Boot Flaps. Double Storm Flap with Hook & Loop Closure. Two Exhaust Valves. Double Taped Seams. Lime Yellow.
Tychem® 10000
DuPont™ Tychem® 10000 Encapsulated Level A Suit. Flat Back, Front Entry. 3 Layers: 40 mil PVC / 5 mil Teflon® / 20 mil PVC. Attached Dual Layer Gloves, Internal: Multi-layer laminate / External: Butyl. Attached Socks with Outer Boot Flaps. Double Storm Flap with Hook & Loop Closure. Two Exhaust Valves. Double Taped Seams. Lime Yellow. Requires Passthrough (see "option codes" below for available passthrough options).
Features & Product Details
DuPont™ Tyvek® 400 D garments combine the protection, durability and comfort of DuPont™ Tyvek® fabric on the front and the comfort, softness and breathability of DuPont™ ProShield® 10 fabric on the back. The DuPont™ Tyvek® 400 D garments are suitable for applications where comfort requirements are combined with limited protective requirements for frontal exposures. Garments are available in a variety of styles. Applications include fiberglass and composite manufacturing, wind turbines, boat construction and repair, remediation, and maintenance.
- Comfort fit design based on extensive wearer input to provide our most comfortable garment design that: enables a greater range of movement while stretching and bending, provides a more tailored fit, offers reinforcement in high stress areas for fewer blowouts, utilizes a longer zipper for easier donning and doffing and an elastic waist to better position the garment. (inactive)
- Multiple interlocking threads are sewn around the raw edges of garment material to create a strong, stress-resistant seam
- Attached respirator-fit hood with elastic around face opening, designed to cover neck and chin and fit around respirator face mask
- Longer zipper extends to chin for complete coverage of neck area
- Storm flap of garment material covers zipper
- Elastic opening for tighter fit at wrist
- Thumb loop to keep garment sleeve in place
- Elastic opening for tighter fit at ankle
AVAILABLE OPTIONS
FINISHED DIMENSIONS
ADDITIONAL EQUIPMENT NEEDED
Fabric & Permeation/Penetration Data
Physical Properties
Data relating to mechanical performance of the fabrics used in DuPont chemical protective clothing, listed for the selected garment according to the test methods and relevant European standard, if applicable. Such properties, including abrasion and flex-cracking resistance, tensile strength and puncture resistance can help in the assessment of protective performance.
| Property | Test Method | Typical Result |
|---|---|---|
| Hydrostatic Head | Tyvek® - AATCC 127 ProShield® - AATCC 127 |
45" H2O 20" H2O |
| Tear Resistance - Trap Tear (CD) | Tyvek® - ASTM D5733 ProShield® - ASTM D5733 |
5 lbf 7 lbf |
| Breaking Strength - Grab (CD) | Tyvek® - ASTM D5034 ProShield® - ASTM D5034 |
22 lbf 14 lbf |
| Thickness | Tyvek® - ASTM D1777 ProShield® - ASTM D1117 |
5.9 mils 12 mils |
| Basis Weight | Tyvek® - ASTM D3776 ProShield® - ASTM D3776 |
1.2 oz/yd2 1.3 oz/yd2 |
| Tear Resistance - Trap Tear (MD) | Tyvek® - ASTM D5733 ProShield® - ASTM D5733 |
6 lbf 4.5 lbf |
| Wearing Apparel Flammability | Tyvek® - 16 CFR 1610 ProShield® - 16 CRF 1610 |
Class 1 Class 1 |
| Burst Strength - Mullen | Tyvek® - ASTM D774 ProShield® - ASTM D3786 |
50 psi 23 psi |
| Breaking Strength - Grab (MD) | Tyvek® - ASTM D5034 ProShield® - ASTM D5034 |
18 lbf 17 lbf |
| Surface Resistivity (25°C / 55% RH) | Tyvek® - ASTM D257 ProShield® - ASTM D257 |
<6.3 x10^9 ohms/square <6.3 x10^9 ohms/square |
- According to EN 14325
- According to EN 14126
- According to EN 1073-2
- According to EN ISO 14116
- According to EN ISO 11612
- Front Tyvek ® / Back
- Based on test according to ASTM D-572
- See Instructions for Use for further information, limitations and warnings
- Larger than
- Smaller than
- Smaller than or equal to
- Not Applicable
- Standard Deviation
