Tyvek / DuPont™ Tychem® 6000

TYFPL50SGY

DuPont™ Tychem® 6000

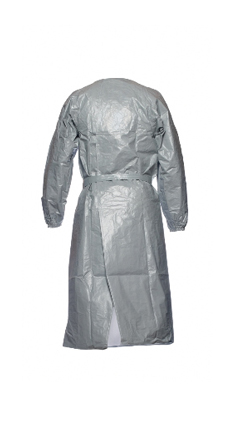

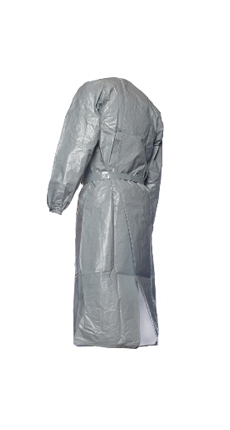

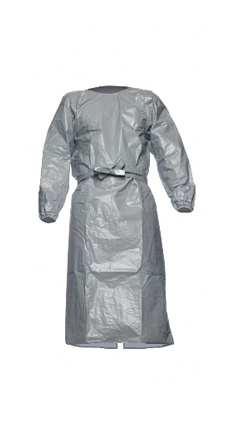

DuPont™ Tychem® gown,model PL50. Shin-length. Wrap-over rear closure with tie. Stitched and over-taped. Gray.




Hover over image to zoom
Name Description
Full Part Number TYF PL50 S GY 00
Fabric/Materials Tychem® F
Design Gown with rear closure
Seam Stitched and over-taped
Color Grey
Quantity/Box 25 per box, bulk packed.
Option Codes 00

FEATURES & PRODUCT DETAILS

Tychem® 6000 garments are made of a proprietary barrier film laminated to a Tyvek® substrate. The fabric provides at least 30 minutes of protection against over 180 challenge chemicals including chemical warfare agents and toxic industrial chemicals. Tychem® 6000 garments are strong, durable and lightweight, and they are available in both high-visibility orange and low-visibility gray fabrics, making them a preferred choice for law enforcement, emergency medical services (EMS) technicians and military personnel.

  • Partial body chemical protective clothing, Category III, Type PB [3]
  • EN 14126 (barrier to infective agents)
  • Antistatic treatment (EN 1149-1) - on inside; see footnotes
  • Stitched and over-taped seams with barrier tape for protection and strength

AVAILABLE OPTIONS

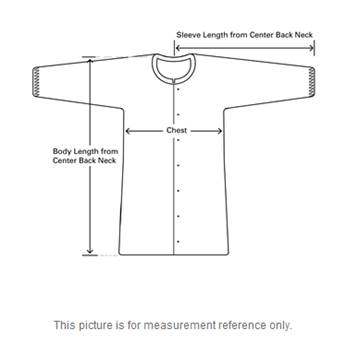

FINISHED DIMENSIONS

ADDITIONAL EQUIPMENT NEEDED

Fabric & Permeation/Penetration Data

Physical Properties

Data relating to mechanical performance of the fabrics used in DuPont chemical protective clothing, listed for the selected garment according to the test methods and relevant European standard, if applicable. Such properties, including abrasion and flex-cracking resistance, tensile strength and puncture resistance can help in the assessment of protective performance.

Property Test Method Typical Result EN
Abrasion Resistance 7 EN 530 Method 2 >2000 cycles 6/6 1
Basis Weight DIN EN ISO 536 120 g/m2 N/A
Bursting Strength (Mullenburst) ISO 2758 650 kPa N/A
Colour N/A. Grey N/A
Flex Cracking Resistance 7 EN ISO 7854 Method B >1000 cycles 1/6 1
Puncture Resistance EN 863 >10 N 2/6 1
Resistance to water penetration AATCC 127 >30 kPa N/A
Surface Resistance at RH 25%, inside 7 EN 1149-1 < 2,5 • 109 Ohm N/A
Surface Resistance at RH 25%, outside 7 EN 1149-1 No antistatic treatment N/A
Tensile Strength (MD) DIN EN ISO 13934-1 >100 N 3/6 1
Tensile Strength (XD) DIN EN ISO 13934-1 >100 N 3/6 1
Thickness DIN EN ISO 534 220 µm N/A
Trapezoidal Tear Resistance (MD) EN ISO 9073-4 >20 N 2/6 1
Trapezoidal Tear Resistance (XD) EN ISO 9073-4 >20 N 2/6 1
  •  According to EN 14325
  •  According to EN 14126
  •  According to EN 1073-2
  •  According to EN 14116
  •   According to EN 11612
  •  Front Tyvek ® / Back
  •  Based on test according to ASTM D-572
  •  See Instructions for Use for further information, limitations and warnings
  •  Larger than
  •  Smaller than
  •  Smaller than or equal to
  •  Not Applicable
  •  Standard Deviation

BIOLOGICAL BARRIER

PENETRATION AND REPELLENCY

WARNING

PERMEATION DATA
