Tyvek / Tyvek® IsoClean®

Model IC 668 B WH MS

Tyvek® IsoClean®

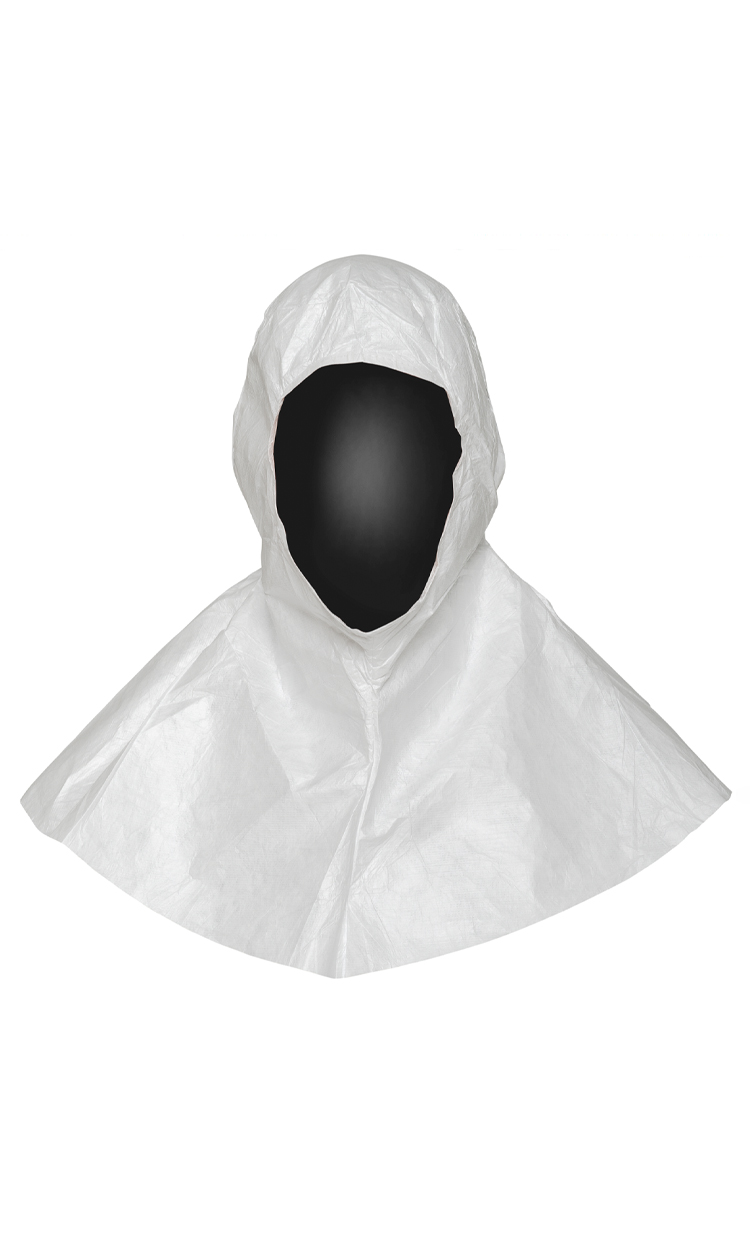

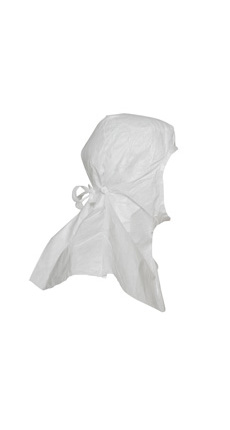

DuPont™ Tyvek® IsoClean® hood with ties model IC 668 B WH MS. Clean-processed and gamma-sterilized. Bound internal seams. Bound hood opening. Full face opening. Ties with loops. Aseptically folded. White.




Hover over image to zoom

CATIII

PB[6]

EN 14126

Option MS

SAL

Name Description
Full Part Number IC0668BWHMS
Fabric/Materials Tyvek® IsoClean®
Design Hood with ties
Seam Bound
Color White
Quantity/Box 100 per box, individually packed. Subgrouped by 20 in an outer bag. 2 polyethylene liners. Cardboard box.

FEATURES & PRODUCT DETAILS

DuPont™ Tyvek® IsoClean® hood with ties, model IC 668 WH MS. Available in white and in one size. Clean-processed and gamma-sterilized. Bound seams. Bound hood opening for low particle shedding. Full face opening. Ties with loops for adjustable fit.
Tyvek® IsoClean® delivers an ideal balance of protection, durability and comfort. Made of high density polyethylene using a patented flash spinning process. Tyvek® IsoClean® provides an inherent barrier to particles, microorganisms and non-hazardous water-based light liquid splash. Tyvek® IsoClean® is also breathable and exceptionally low linting.
Tyvek® IsoClean® (option codes CS, DS and MS) garments and accessories have been clean-processed to maximize cleanliness and have been sterilized by gamma- irradiation. They are folded to aid aseptic donning and packaged in an ISO class 4 cleanroom. All DuPont™ Tyvek® IsoClean® clean-processed and sterile accessories (option MS) are packed in a dual barrier packaging system, consisting of an inner and outer easy tear cleanroom bag. The packaging system serves as a key element for contamination risk reduction when transferring apparel into clean areas. The accessories are individually packed and grouped together in an outer bag.
Garments and accessories made of clean-processed and sterile Tyvek® IsoClean® are typically used in cleanrooms within the biotech, pharmaceutical, medical device manufacturing, food processing, cosmetics industry as well as in other critical or controlled environments.

  • Certified according to Regulation (EU) 2016/425.
  • Partial body chemical protective clothing, Category III, Type PB [6]
  • EN 14126 (barrier to infective agents)
  • Clean-processed and sterilised by gamma-irradiation to SAL of 10-6 (ISO 11137-1)
  • Full traceability on all sterilized apparal with certificates of sterility available

  • Suitable for use in GMP class A/B (ISO Class 5) clean rooms*

Fabric & Permeation/Penetration Data

Physical Properties

Data relating to mechanical performance of the fabrics used in DuPont chemical protective clothing, listed for the selected garment according to the test methods and relevant European standard, if applicable. Such properties, including abrasion and flex-cracking resistance, tensile strength and puncture resistance can help in the assessment of protective performance.

Property Test Method Typical Result EN
Abrasion Resistance 7 EN 530 Method 2 >10 cycles 1 of 6 1
Basis Weight DIN EN ISO 536 45 g/m2 N/A
Colour. N/A (598) White N/A
Exposure to high Temperature N/A (598) Melting point ˜135 °C N/A
Puncture Resistance EN 863 >5 N 1 of 6 1
Resistance to water penetration DIN EN 20811 7 kPa N/A
Resistenza alla rottura per flessione 7 EN ISO 7854 Method B >100000 cycles 6 of 6 1
Surface Resistance at RH 25%, inside 7 EN 1149-1 210 Ohm N/A
Tensile Strength (MD) DIN EN ISO 13934-1 >30 N 1 of 6 1
Tensile Strength (XD) DIN EN ISO 13934-1 >30 N 1 of 6 1
Thickness (PPSH-249) DIN EN ISO 534 185 µm N/A
Trapezoidal Tear Resistance (MD) EN ISO 9073-4 >10 N 1 of 6 1
Trapezoidal Tear Resistance (XD) EN ISO 9073-4 >10 N 1 of 6 1
  •  According to EN 14325
  •  According to EN 14126
  •  According to EN 1073-2
  •  According to EN 14116
  •   According to EN 11612
  •  Front Tyvek ® / Back
  •  Based on test according to ASTM D-572
  •  See Instructions for Use for further information, limitations and warnings
  •  Larger than
  •  Smaller than
  •  Smaller than or equal to
  •  Not Applicable
  •  Standard Deviation

GARMENT PERFORMANCE

COMFORT

PENETRATION AND REPELLENCY

BIOLOGICAL BARRIER

CLEANLINESS

WARNING

PERMEATION DATA
