Tyvek / Tyvek® 500

Model New Workman Plus

Tyvek® 500

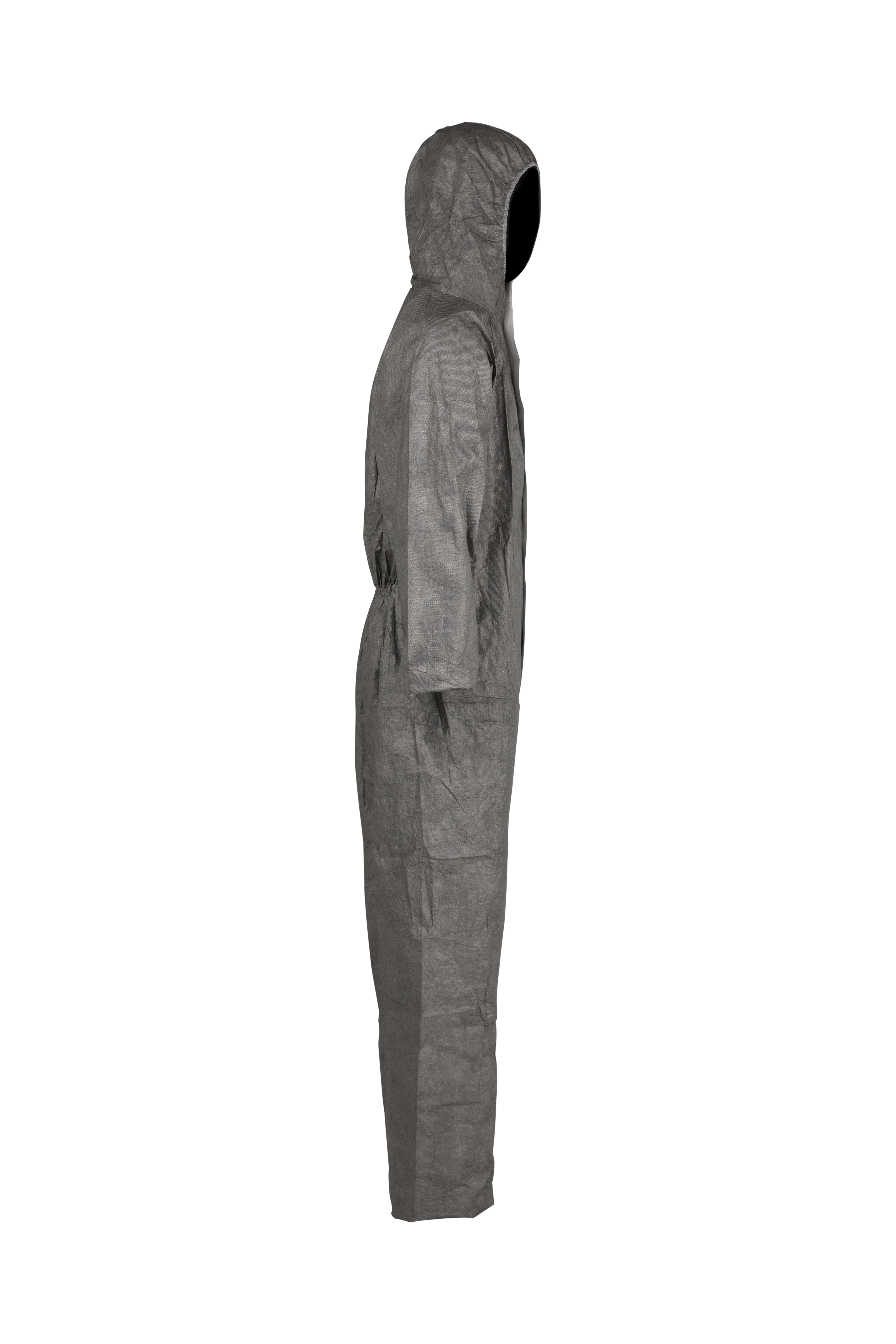

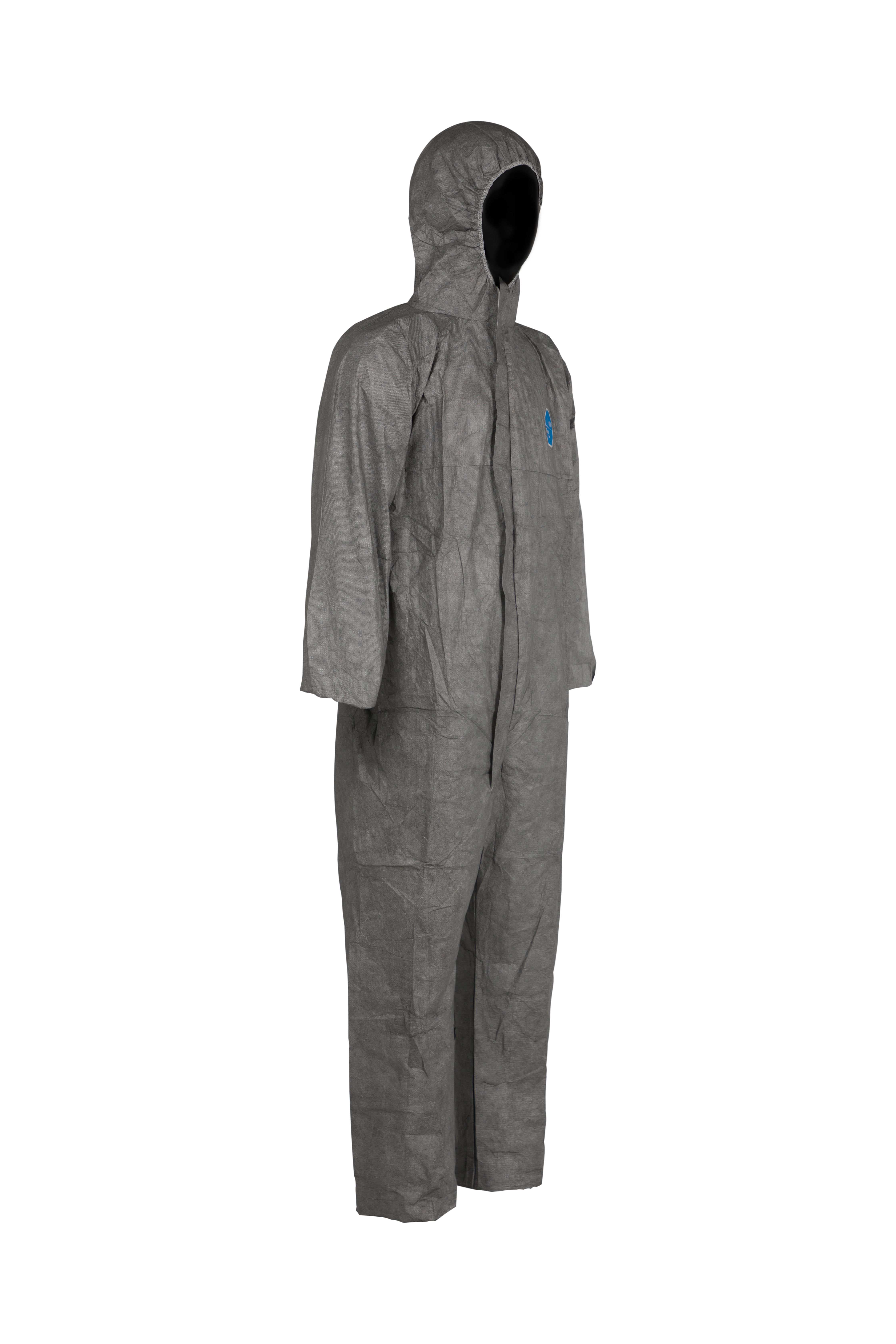

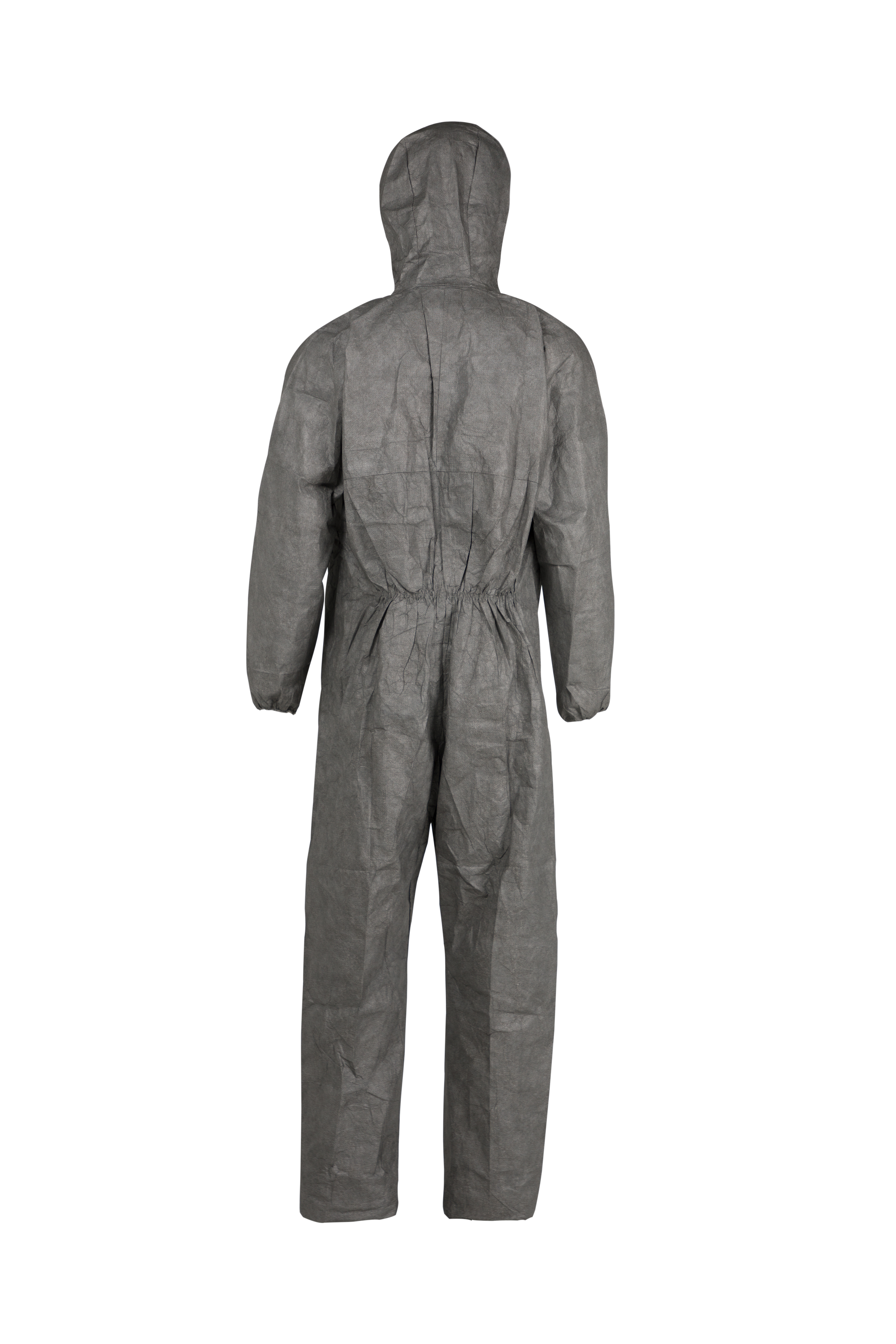

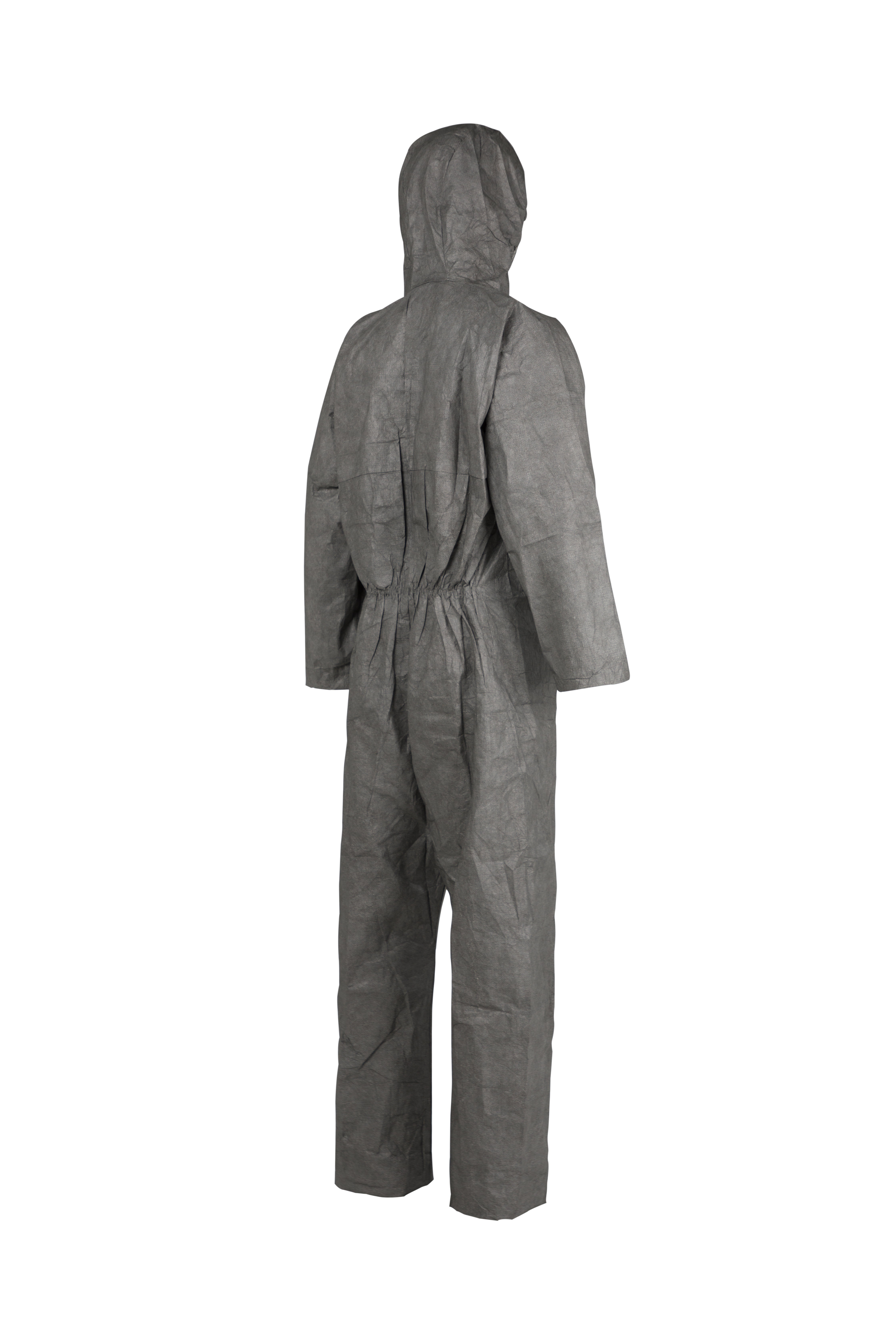

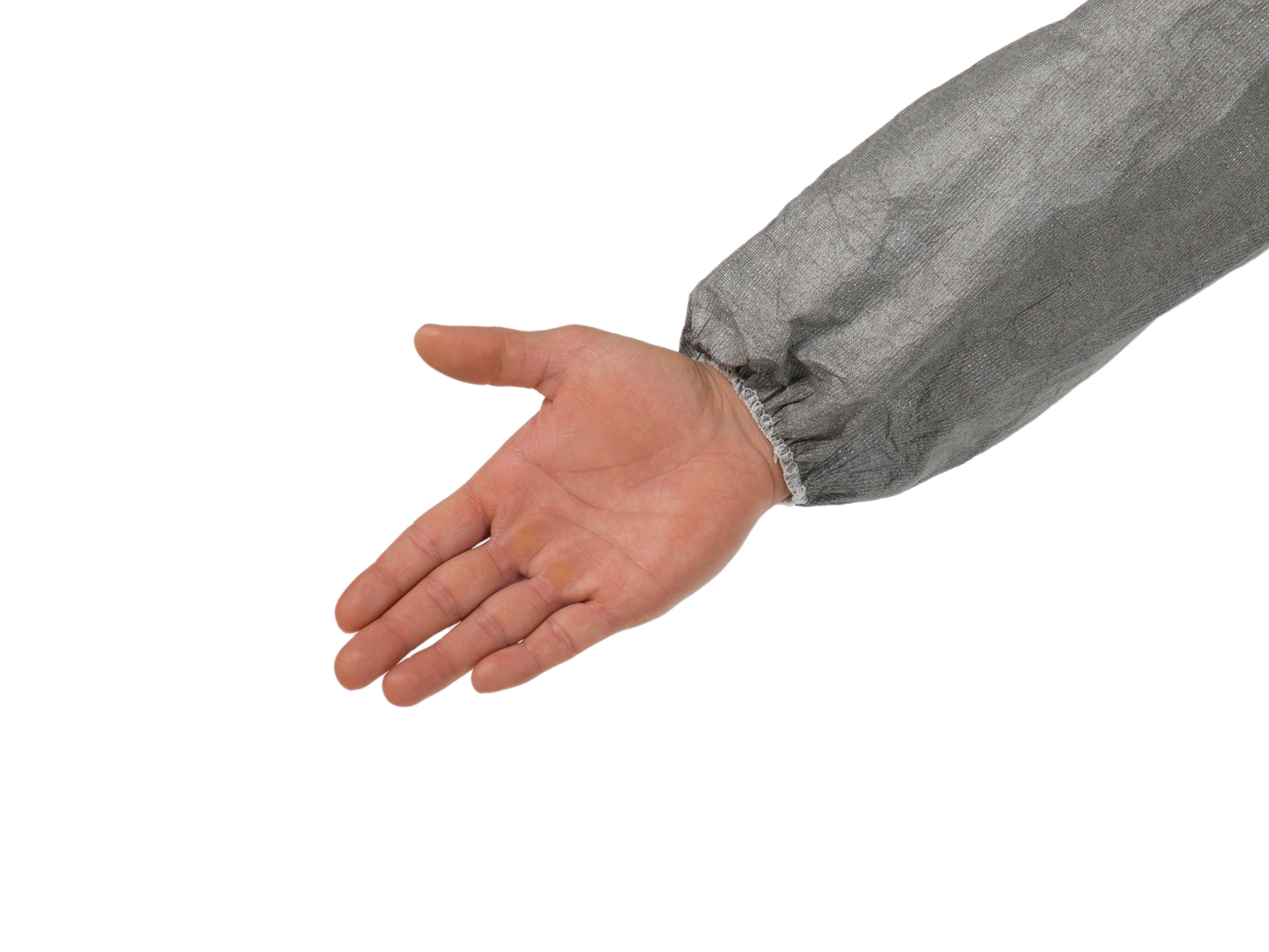

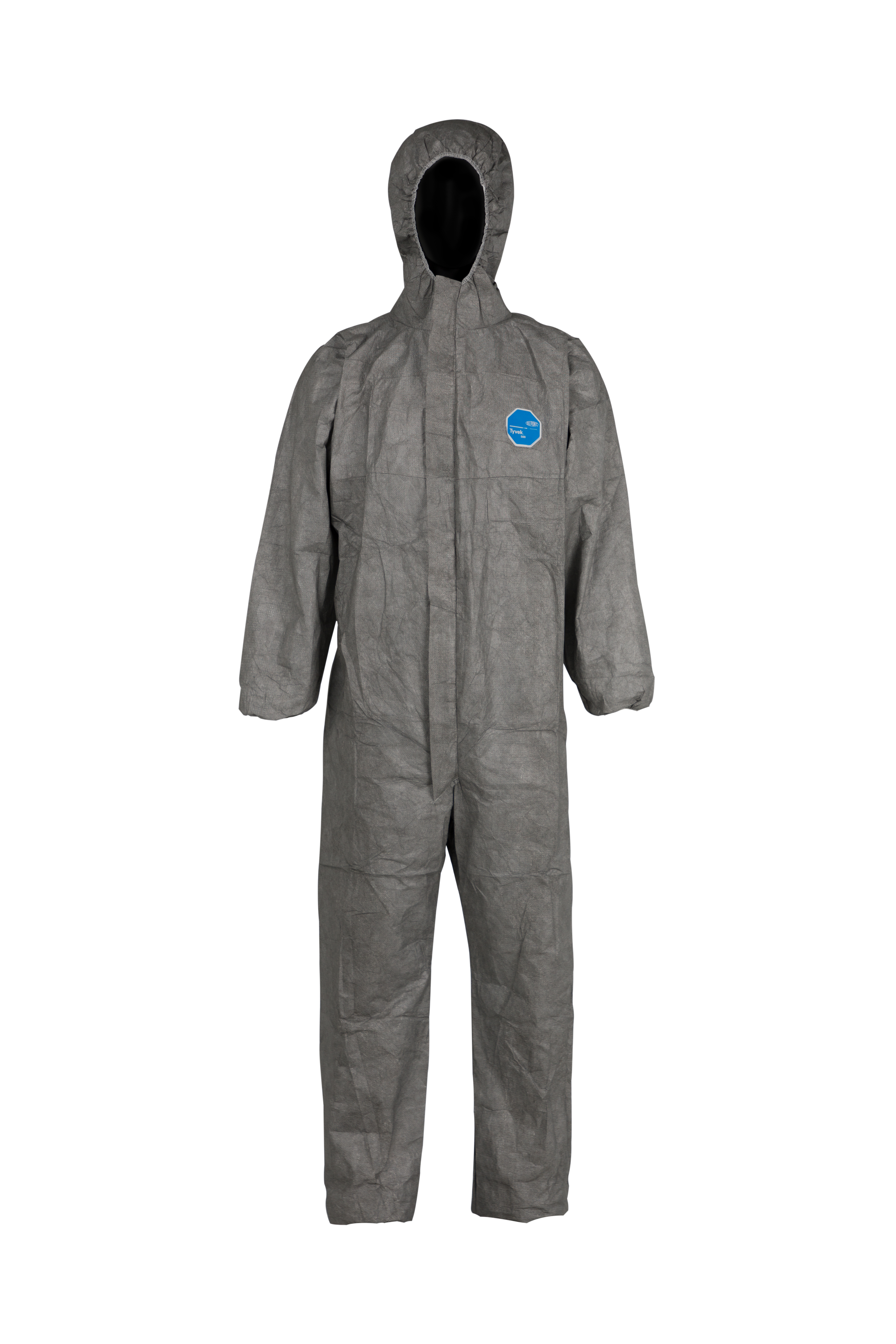

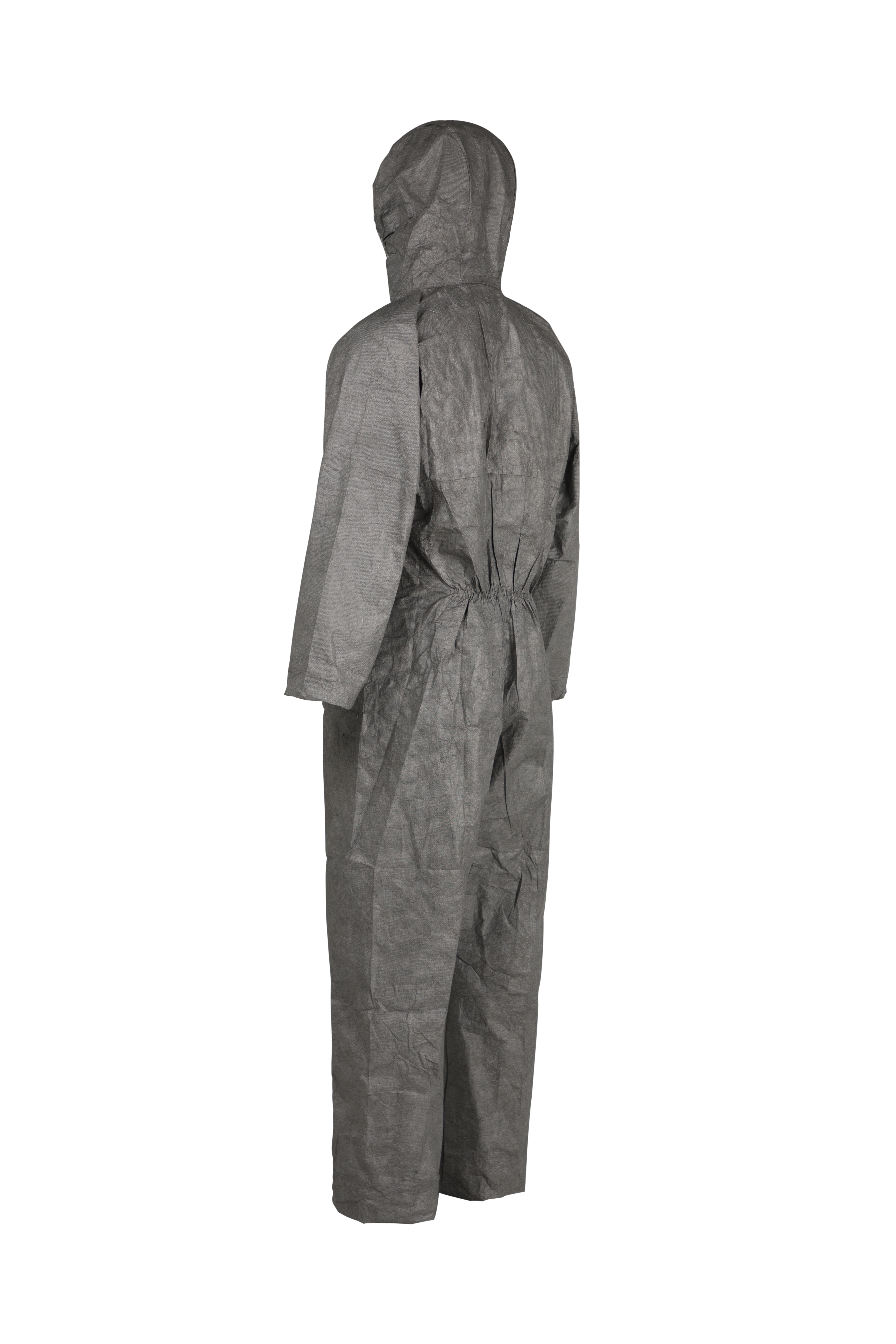

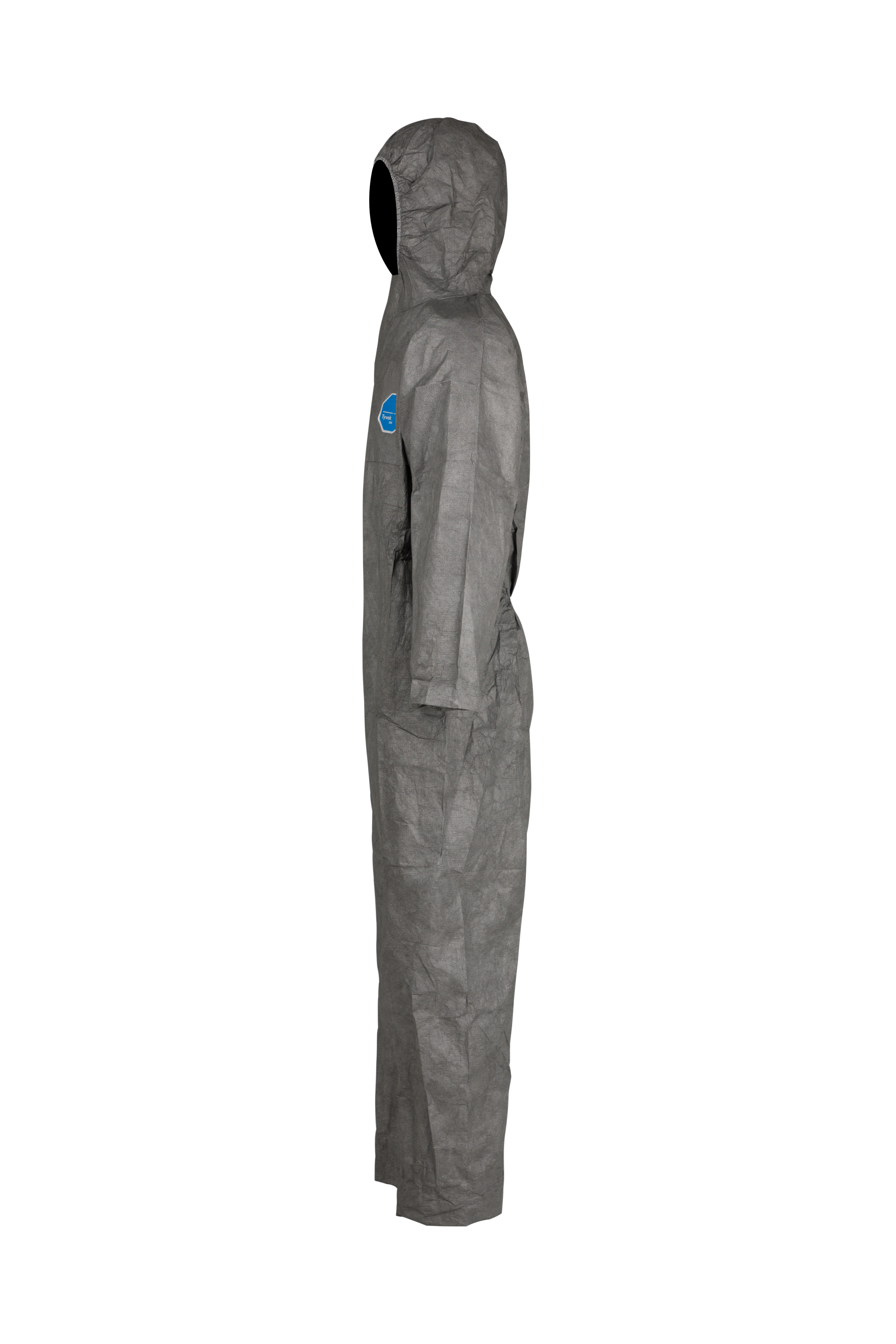

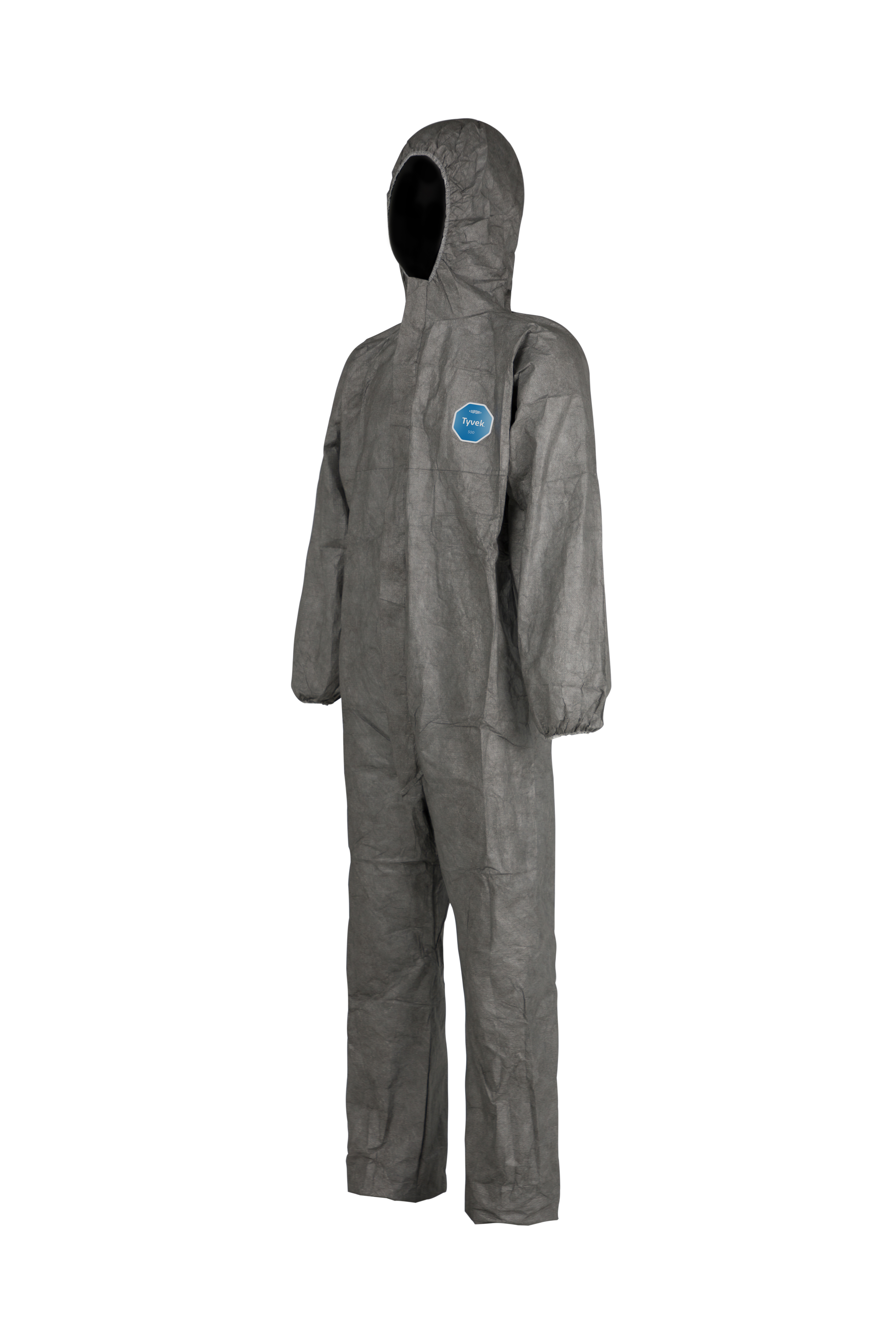

DuPont™ Tyvek® 500, New Workman Plus. Hooded coverall. Stitched internal seams. Elastication at wrists, ankles and face. Elastication at waist (glued-in). Tyvek® zipper and flap. Grey.




Hover over image to zoom

CATIII

Name Description
Full Part Number TYVCHF5SGYK0
Fabric/Materials Tyvek® New Workman Plus
Design Hooded coverall with elastics
Seam Stitched (internal)
Color Grey
Sizes SM,MD,LG,XL,2XL,3XL
Quantity/Box 50 per box, individually packed

FEATURES & PRODUCT DETAILS

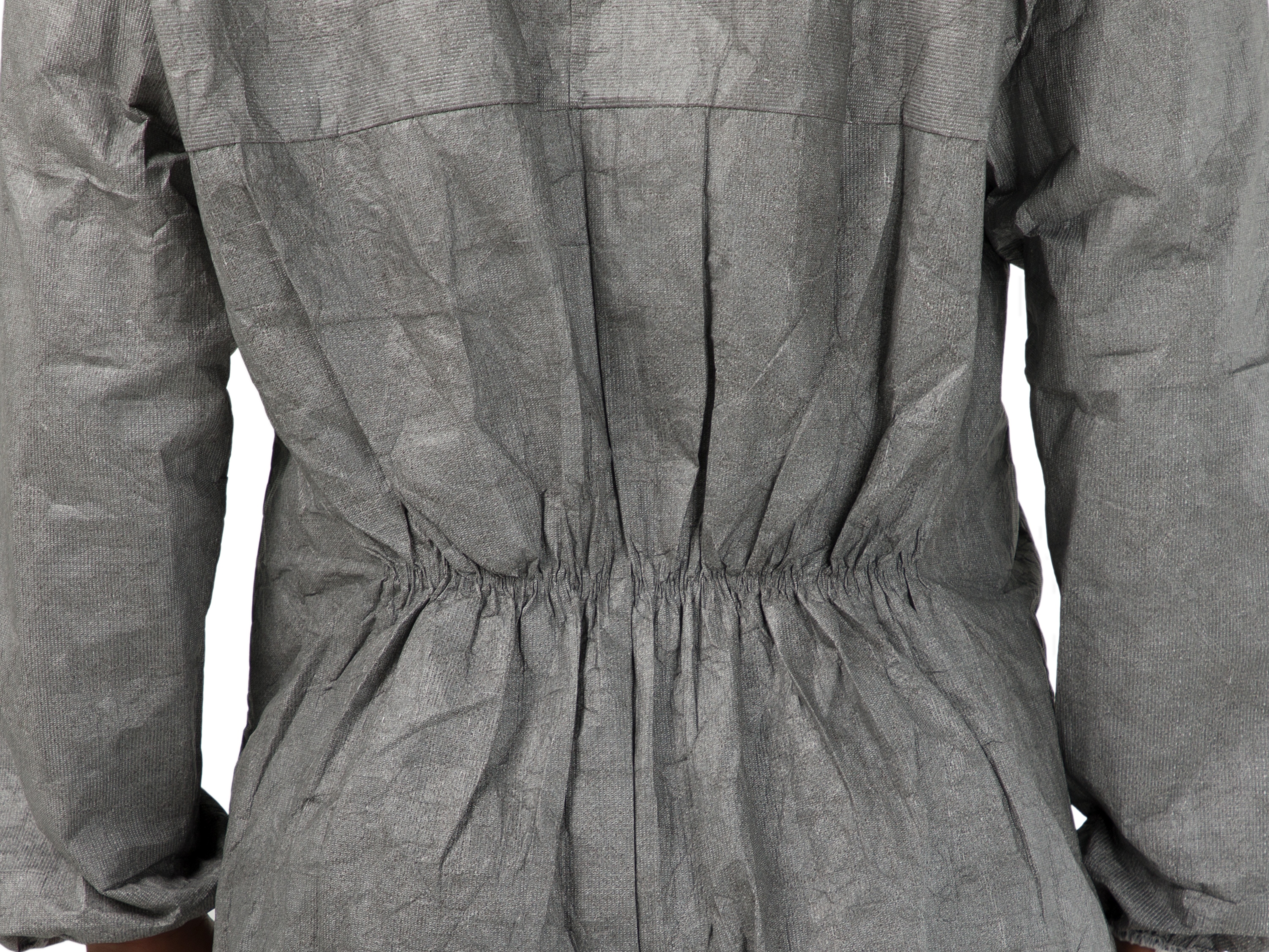

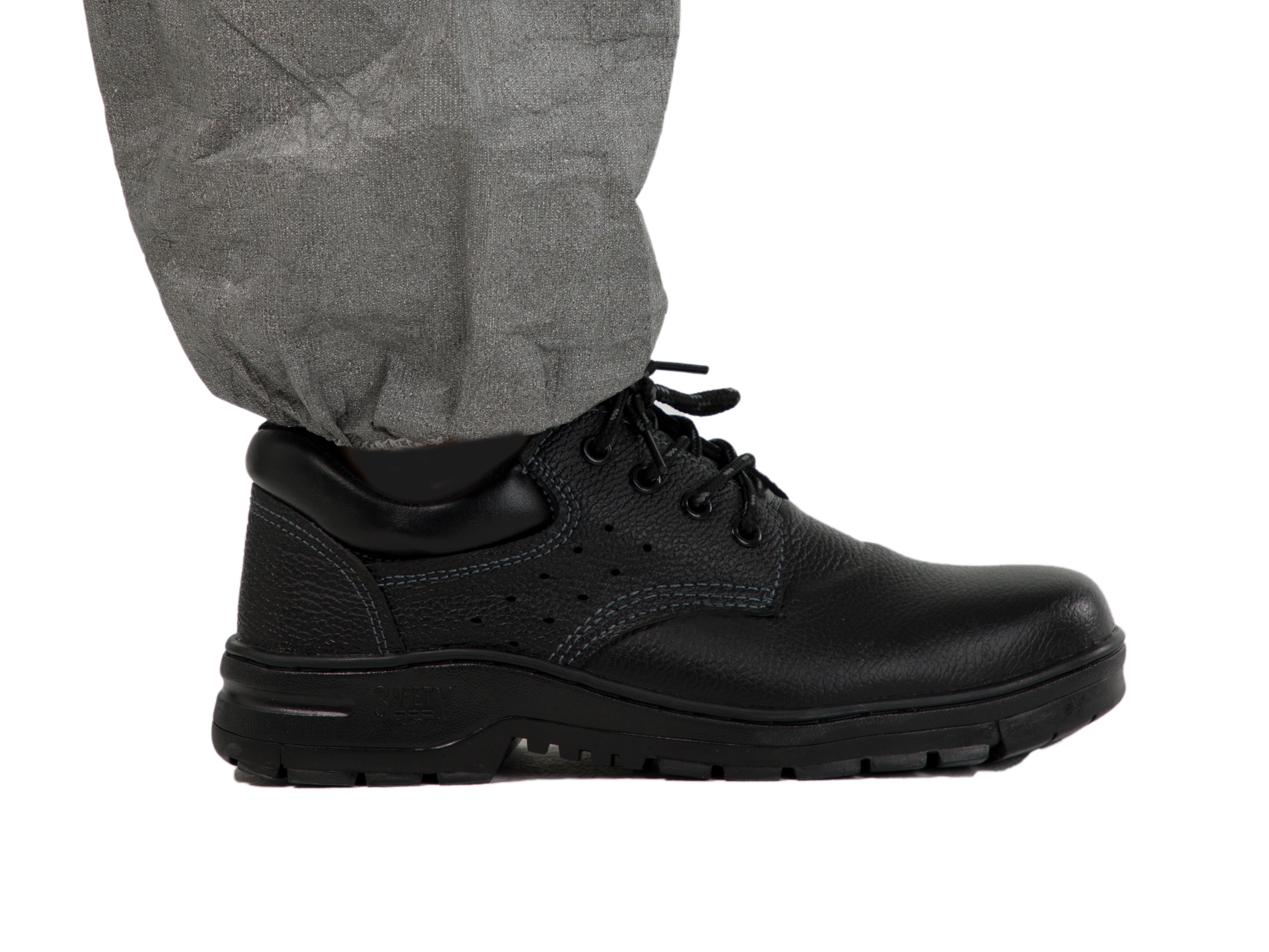

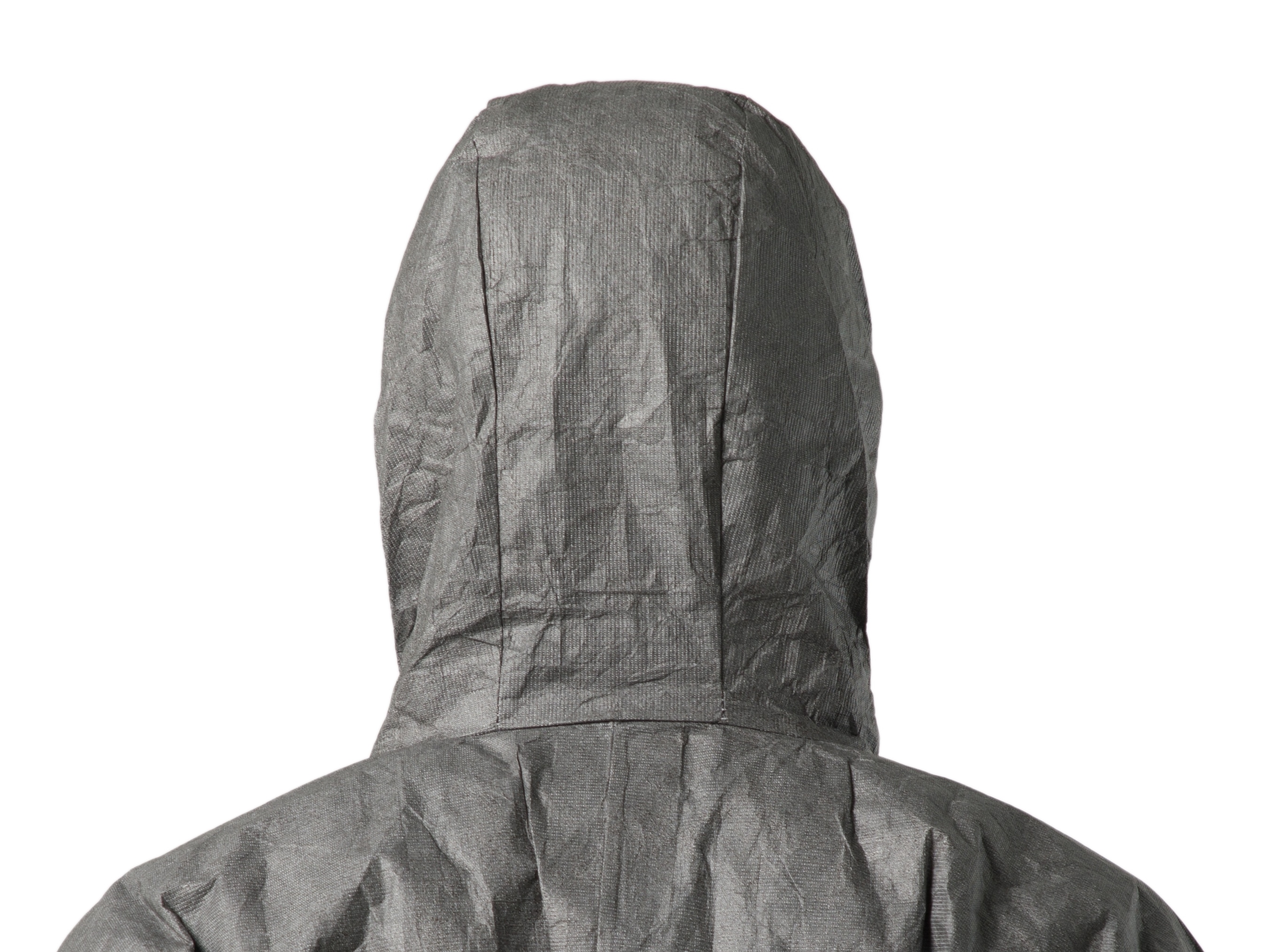

DuPont™ Tyvek® 500, model New Workman Plus. Hooded coverall available in grey and in sizes SM to 3XL. Stitched internal seams. 3-piece hood for optimal fit to head and face when turning. Elasticated face, wrists, waist and ankles. Tyvek® zipper with storm flap.
Tyvek® garments are composed of flash spun high density polyethylene, providing an ideal balance of protection, durability and comfort. Tyvek® is permeable to both air and water vapour, yet repels water-based liquids and aerosols. It offers an excellent barrier against fine particles and fibres (down to 1 micron in size), is ultra-low-linting, antistatically treated. Silicon non added,
Applications for Tyvek® 500 New Workman Plus garments include general maintenance/operations, heavy industries, general clean-up, amongst many others.

  • Limited-Use protective clothing, Type 5 and 6 Protection
  • Stitched internal seams

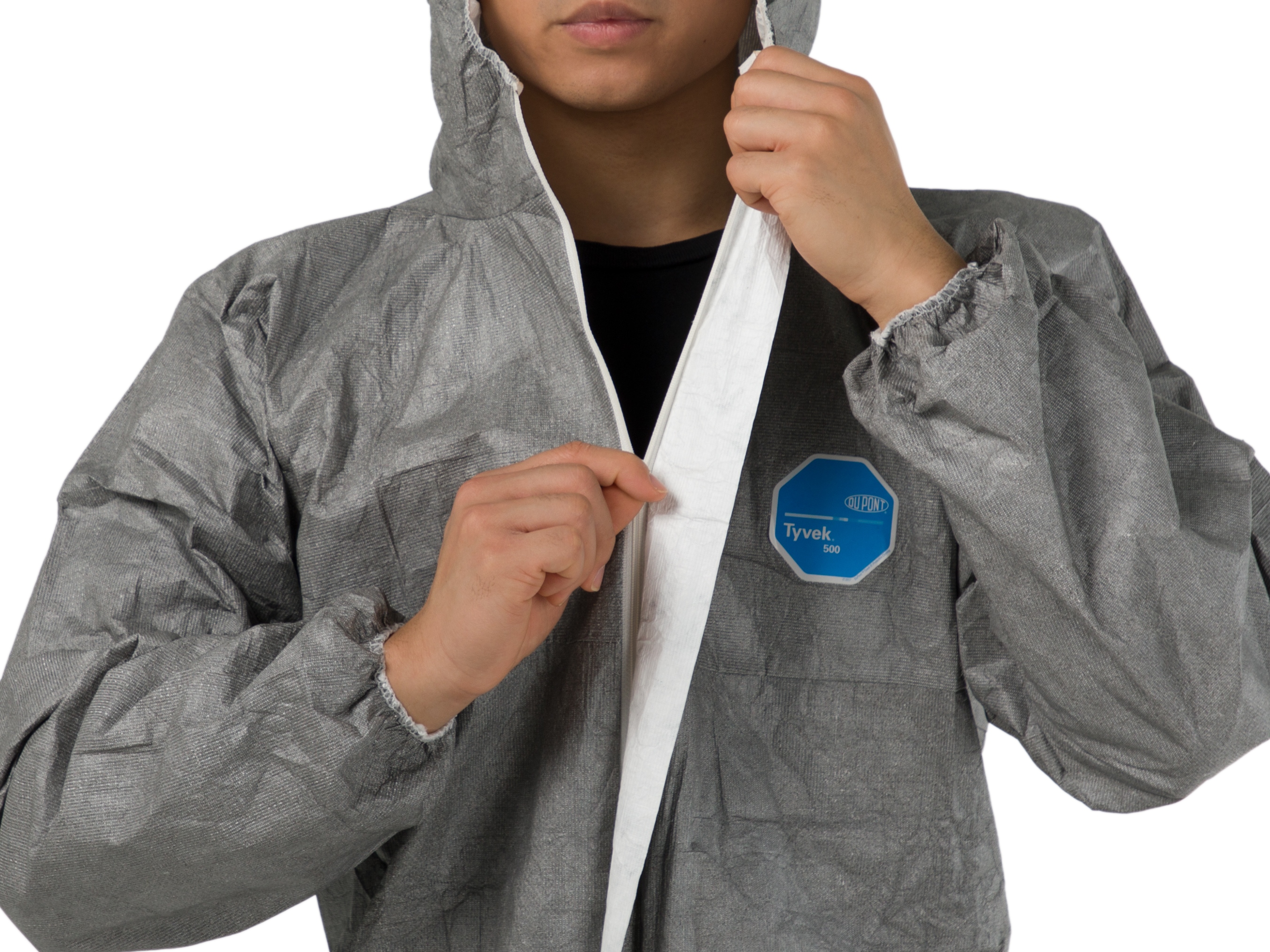

  • Tyvek® zipper and zipper flap for enhanced protection

ADDITIONAL EQUIPMENT NEEDED

Fabric & Permeation/Penetration Data

Physical Properties

Data relating to mechanical performance of the fabrics used in DuPont chemical protective clothing, listed for the selected garment according to the test methods and relevant European standard, if applicable. Such properties, including abrasion and flex-cracking resistance, tensile strength and puncture resistance can help in the assessment of protective performance.

Property Test Method Typical Result EN
Abrasion Resistance 7 KOSHA >10 cycles 1 of 6 8
Colour. N/A (598) Grey N/A
Flex Cracking Resistance 7 KOSHA >1000 cycles 1 of 6 8
Puncture Resistance EN 863 >10 N 2 of 6 1
Tensile Strength (MD) DIN EN ISO 13934-1 >100 N 3 of 6 1
Trapezoidal Tear Resistance (MD) EN ISO 9073-4 >10 N 1 of 6 1
  •  According to EN 14325
  •  According to EN 14126
  •  According to EN 1073-2
  •  According to EN 14116
  •   According to EN 11612
  •  Front Tyvek ® / Back
  •  Based on test according to ASTM D-572
  •  See Instructions for Use for further information, limitations and warnings
  •  Larger than
  •  Smaller than
  •  Not Applicable
  •  Standard Deviation

GARMENT PERFORMANCE

PENETRATION AND REPELLENCY
