Tyvek / DuPont™ Tychem® 2000

QC500B YL

DuPont™ Tychem® 2000

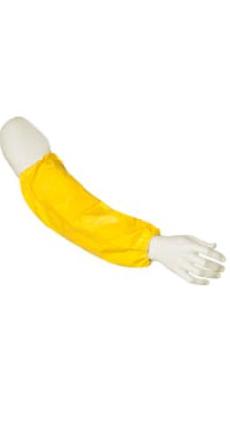

DuPont™ Tychem® 2000 Sleeve. 18" Long. Elastic at Both Ends. Bound Seams. Yellow.




Hover over image to zoom
Name Description
Full Part Number QC500BYLxx0200yy (xx=size;yy=option code)  Help
Fabric/Materials TYCHEM® 2000
Design Sleeve
Seam Bound
Color Yellow
Quantity/Box 200 per case
Option Codes 00

FEATURES & PRODUCT DETAILS

A lightweight, and durable fabric, DuPont™ Tychem® 2000 utilizes the strength of DuPont™ Tyvek® fabric and a polyethylene coating. Tychem® 2000 fabric provides at least 30 minutes of protection against 42 chemical challenges. Tychem® 2000 is used for light splash protection in a variety of industrial environments, including petroleum refining, pulp and paper manufacturing, food processing, chemical processing, and pharmaceutical manufacturing.

  • Elastic at both ends (bicep and wrist) for arm protection
  • 18" long
  • One size fits most

AVAILABLE OPTIONS

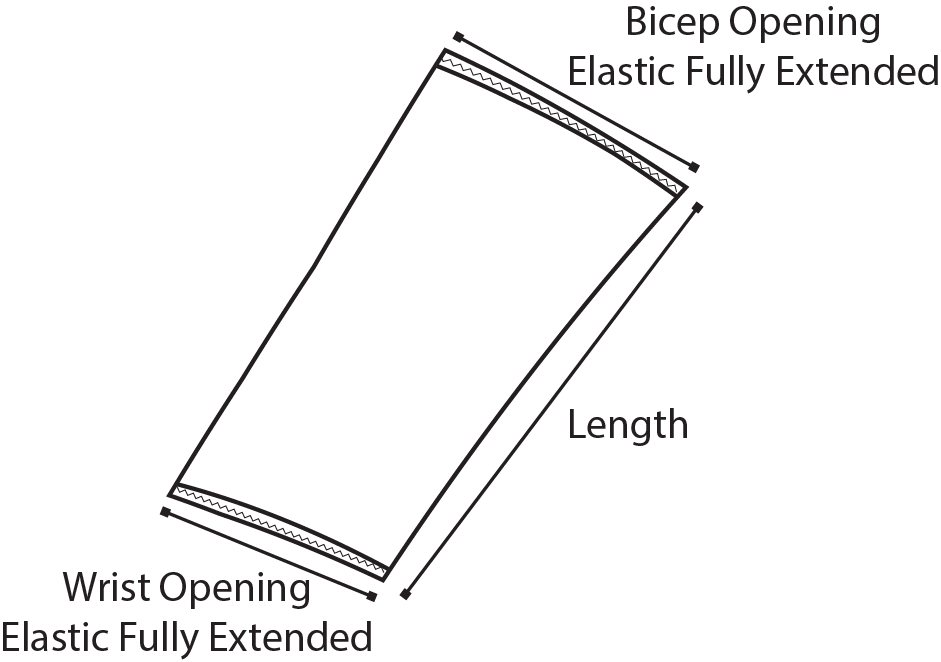

FINISHED DIMENSIONS

ADDITIONAL EQUIPMENT NEEDED

Fabric & Permeation/Penetration Data

Physical Properties

Data relating to mechanical performance of the fabrics used in DuPont chemical protective clothing, listed for the selected garment according to the test methods and relevant European standard, if applicable. Such properties, including abrasion and flex-cracking resistance, tensile strength and puncture resistance can help in the assessment of protective performance.

Property Test Method Typical Result
Basis Weight ASTM D3776 2.5 oz/yd2
Breaking Strength - Grab (CD) ASTM D5034 48 lbf
Breaking Strength - Grab (MD). ASTM D5034 39 lbf
Burst Strength - Mullen. ASTM D3786 72 psi
Tear Resistance - Trap Tear (CD) ASTM D1117 4.7 lbf
Tear Resistance - Trap Tear (MD) ASTM D1117 6.4 lbf
Thickness (PPSH-249) ASTM D1777 10 mils
Wearing Apparel Flammability 16 CFR 1610 Help Class 1
  •  According to EN 14325
  •  According to EN 14126
  •  According to EN 1073-2
  •  According to EN 14116
  •   According to EN 11612
  •  Front Tyvek ® / Back
  •  Based on test according to ASTM D-572
  •  See Instructions for Use for further information, limitations and warnings
  •  Larger than
  •  Smaller than
  •  Not Applicable
  •  Standard Deviation

WARNING
