Tyvek / DuPont™ ProShield® 6 SFR

TM120S BU

DuPont™ ProShield® 6 SFR

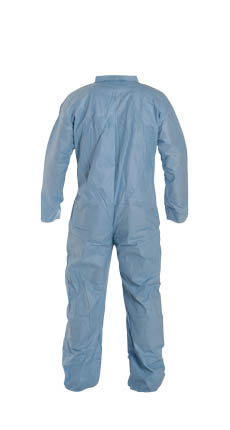

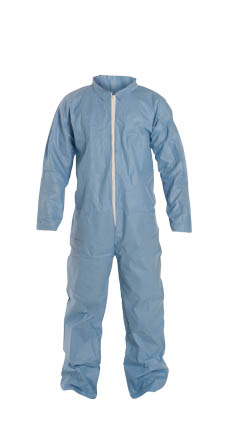

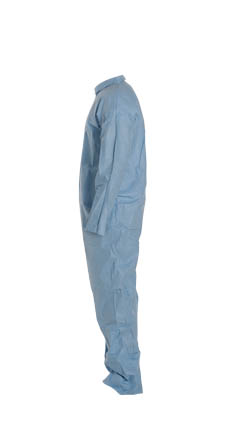

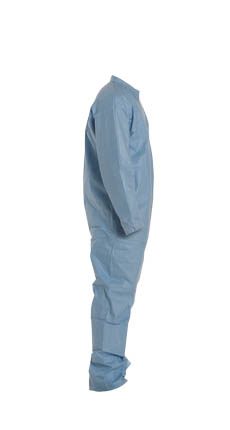

DuPont™ ProShield® 6 SFR Coverall. Collar. Open Wrists and Ankles. Serged Seams. Blue.




Hover over image to zoom
Name Description
Full Part Number TM120SBUxx0025yy (xx=size;yy=option code)  Help
Fabric/Materials ProShield® 6 SFR
Design Coverall w/ Open Wrists and Ankles
Seam Serged
Color Blue
Quantity/Box 25 per box
Option Codes 00,PI

FEATURES & PRODUCT DETAILS

ProShield® 6 SFR is a Lightweight, disposable overgarment designed to help protect and preserve primary flame-resistant garments. It provides a barrier against non-hazardous particles and aerosols while not contributing to burn injury.
ProShield® 6 SFR garments won't ignite and continue to burn when exposed to a flame source. They are flame retardant treated, not inherently flame resistant, and are intended to be worn over your primary flame resistant garments.

  • Stormflaps.
  • Laydown collar
  • Open wrists
  • Open ankles

AVAILABLE OPTIONS

FINISHED DIMENSIONS

ADDITIONAL EQUIPMENT NEEDED

Fabric & Permeation/Penetration Data

Physical Properties

Data relating to mechanical performance of the fabrics used in DuPont chemical protective clothing, listed for the selected garment according to the test methods and relevant European standard, if applicable. Such properties, including abrasion and flex-cracking resistance, tensile strength and puncture resistance can help in the assessment of protective performance.

Property Test Method Typical Result
Basis Weight ASTM D3776 2.4 oz/yd2
Breaking Strength - Grab (CD) ASTM D5034 21 lbf
Breaking Strength - Grab (MD) ASTM D5034 27 lbf
Surface Resistivity (25°C / 55% RH) ASTM D257 4.0 x 10^7 ohms/square
Tear Resistance - Trap Tear (CD) ASTM D1117 10 lbf
Tear Resistance - Trap Tear (MD) ASTM D1117 7 lbf
Vertical Flame Resistance of Textiles ASTM D6413 < 2 seconds Afterflame
Vertical Flame Resistance of Textiles ASTM D6413 < 6 inches Char Damage
  •  According to EN 14325
  •  According to EN 14126
  •  According to EN 1073-2
  •  According to EN 14116
  •   According to EN 11612
  •  Front Tyvek ® / Back
  •  Based on test according to ASTM D-572
  •  See Instructions for Use for further information, limitations and warnings
  •  Larger than
  •  Smaller than
  •  Smaller than or equal to
  •  Not Applicable
  •  Standard Deviation
